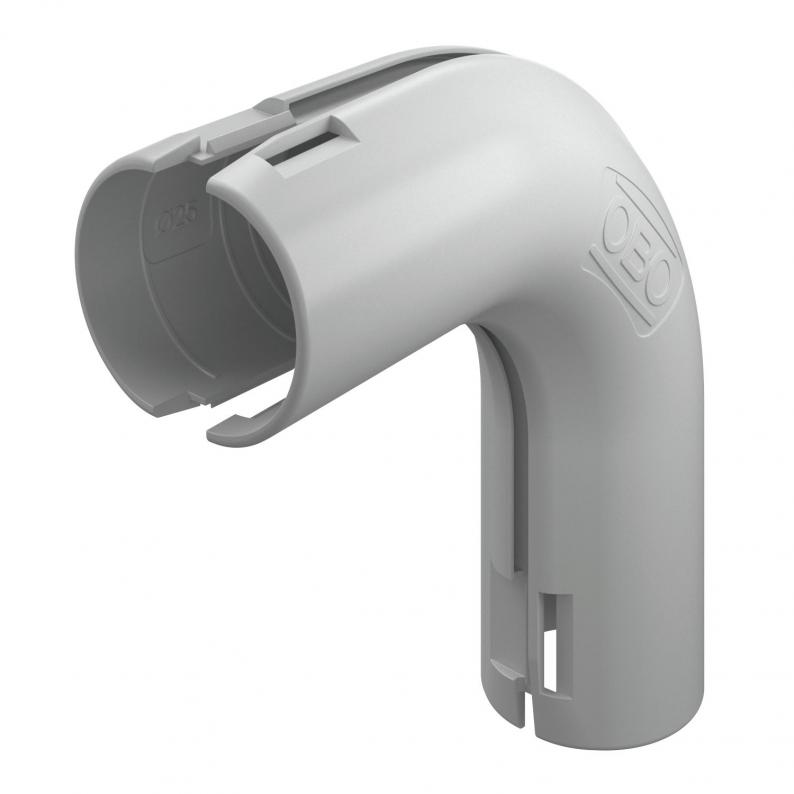

90° Quick pipe bend, light grey

90° Quick pipe bend, light grey

Type 3000 BMS M25 LGR
|
Item no. 2154056
|
EAN 4012196869794
Show all variants
Item no. / Type

Smallest selling unit: 5 piece

piece

Description

Fitting for plastic electrical installation pipes to create 90° bends. Suitable for Quick pipe pipes or corrugated pipes. Toolless closing and opening. Can be used in a temperature range of –25 to +60 °C.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 40
  • Thread metric
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

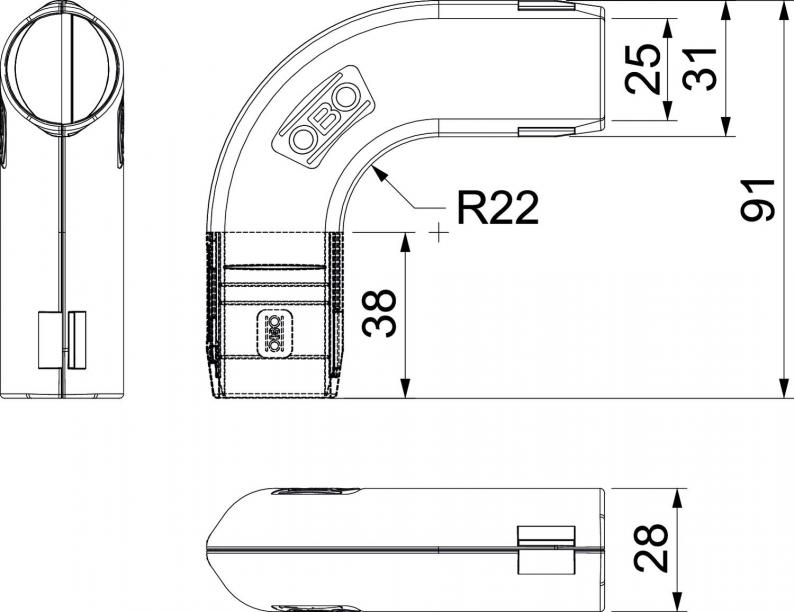

Dimensions

Dimension L91 mm
Dimension d25 mm
Dimension B31,2 mm
Dimension R22 mm
Dimension L138 mm

Technical data

Halogen-freeyes
Angle of the bend90 °
Polished surfaceno
With sleeveno
Flexibleno
Brushed surfaceno
With inspection opening and lidno
Two-partyes
Version forConnector
Permitted temperature range, min.0 °C
Permitted temperature range, max.60 °C
DimensionM25
MaterialPolypropylene
ColourLight grey; RAL 7035

Environmental Data

0,0949 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,0949 kg CO2e / 1 Piece
