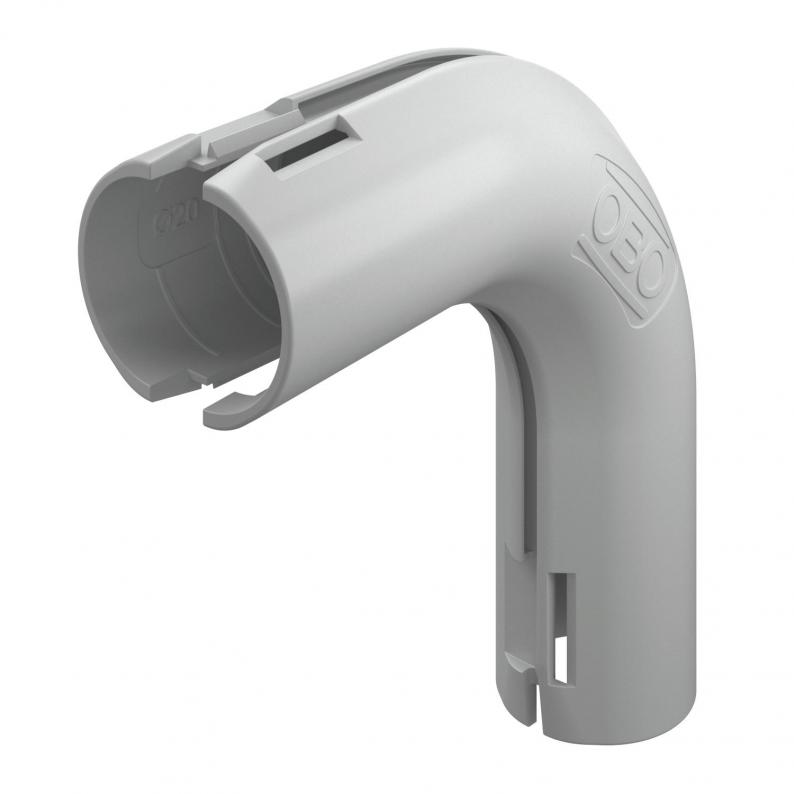

90° Quick pipe bend, light grey

90° Quick pipe bend, light grey

Type 3000 BMS M20 LGR
|
Item no. 2154054
|
EAN 4012196869756
Show all variants
Item no. / Type

Smallest selling unit: 5 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

Fitting for plastic electrical installation pipes to create 90° bends. Suitable for Quick pipe pipes or corrugated pipes. Toolless closing and opening. Can be used in a temperature range of –25 to +60 °C.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 40
  • Thread metric
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

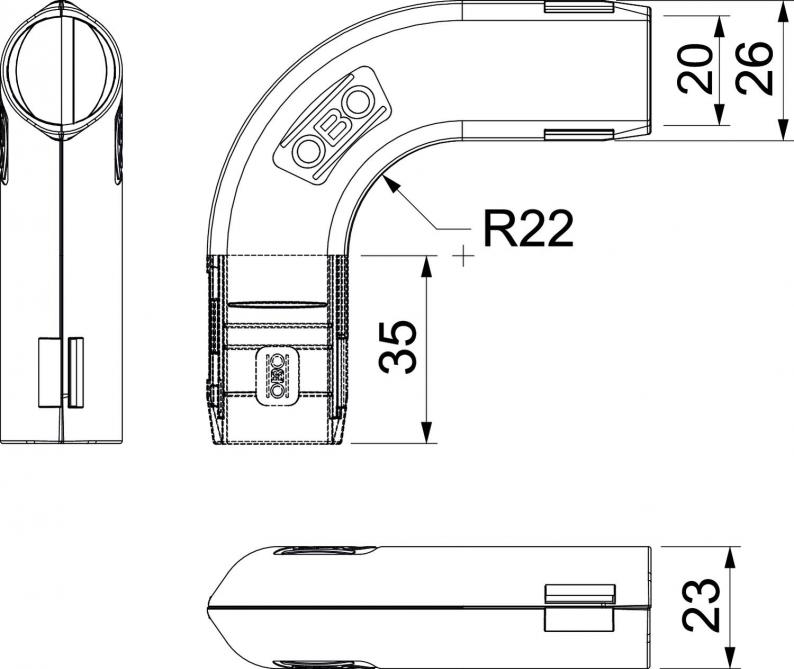

Dimensions

Dimension L83,2 mm
Dimension d20 mm
Dimension B26,3 mm
Dimension R22 mm
Dimension L135 mm

Technical data

Halogen-freeyes
Angle of the bend90 °
Polished surfaceno
With sleeveno
Flexibleno
Brushed surfaceno
With inspection opening and lidno
Two-partyes
Version forConnector
Permitted temperature range, min.0 °C
Permitted temperature range, max.60 °C
DimensionM20
MaterialPolypropylene
ColourLight grey; RAL 7035
CO2 Footprint (GWP) Cradle-to-Gate0,0829 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Certificates (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

3000 BMS M20 LGR
Item no.
2154054
3000 BMS M16 LGR
Item no.
2154052
3000 BMS M25 LGR
Item no.
2154056
