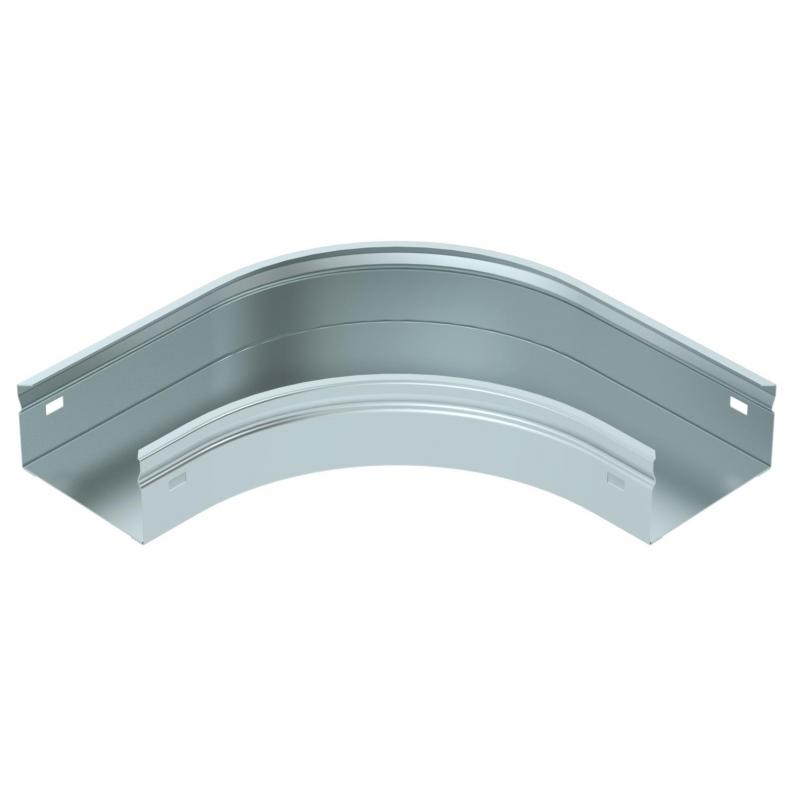

90° bend 60, horizontal FS
Type GKSB 90 610 FS
|Item no. 6480121
|EAN 4012195486688
Item no. / Type
Width
Surface
Strip galvanized
Material
Steel
Colour
zinc
Smallest selling unit: 1 piece
1piece
piece
Description
90° bend, horizontal, for all cable tray types of the series GKS... of 60 mm side height.
Technical data

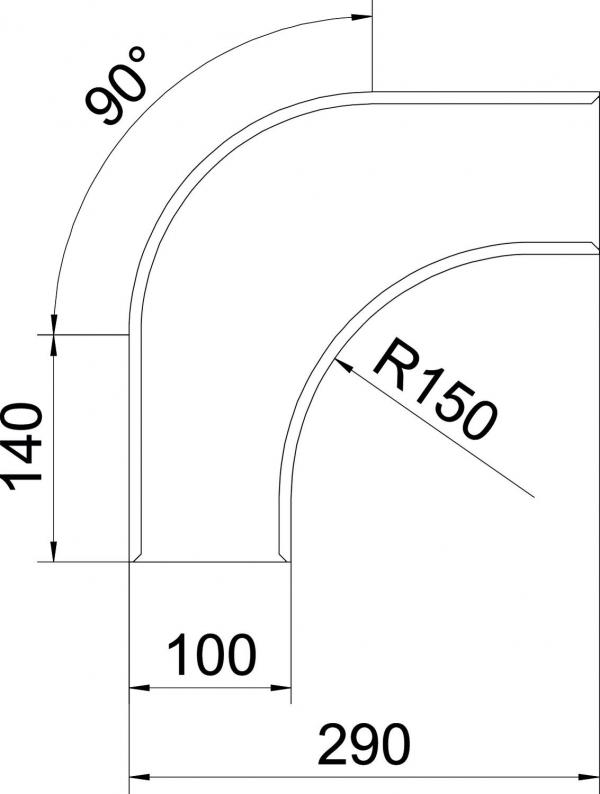

Dimensions
| Width | 100 mm |
|---|---|
| Height | 60 mm |
| Dimension B | 100 mm |
| Dimension R | 150 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | no |
| Connector version | Without connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Bend (angle) | 90° |
| Change of direction | Horizontal |
| Dimension | 60x100 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (6)
Declarations (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Variants
Type
Width
Surface
Material
Colour
Item no.
GKSB 90 610 FS
100
Strip galvanized
Steel
zinc
6480121
GKSB 90 615 FS
150
Strip galvanized
Steel
zinc
6480122
GKSB 90 620 FS
200
Strip galvanized
Steel
zinc
6480123
GKSB 90 630 FS
300
Strip galvanized
Steel
zinc
6480124
GKSB 90 640 FS
400
Strip galvanized
Steel
zinc
6480125
GKSB 90 650 FS
500
Strip galvanized
Steel
zinc
6480126
