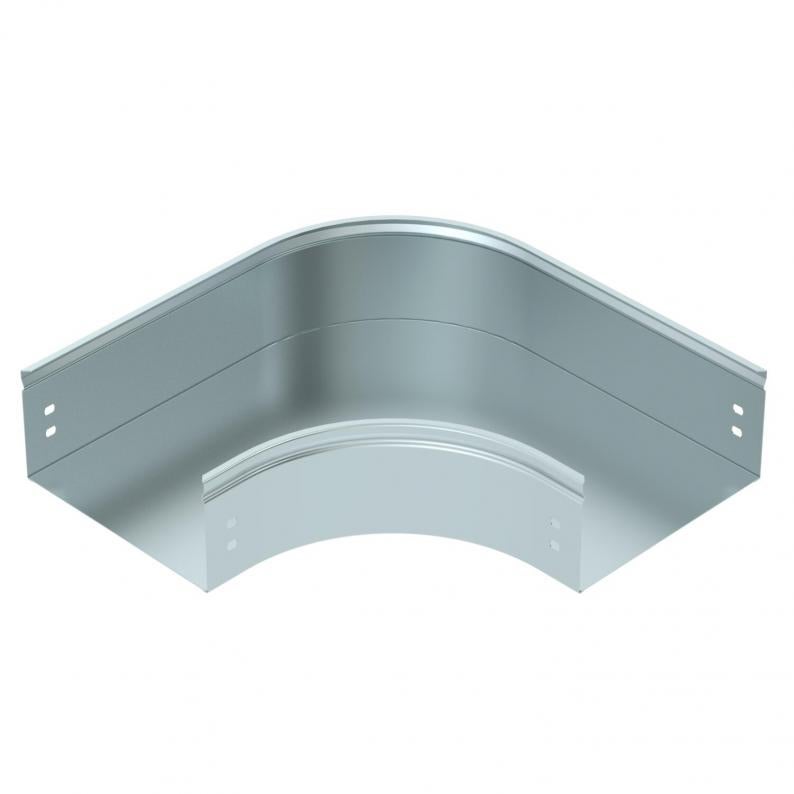

90° bend 100 FS, horizontal
Type GKSB 90 120 FS
|Item no. 6480143
|EAN 4012195486848
Item no. / Type
Width
Smallest selling unit: 1 piece
1piece
piece
Description
90° bend, horizontal, for all cable tray types of the series GKS... of 100 mm side height.
Technical data

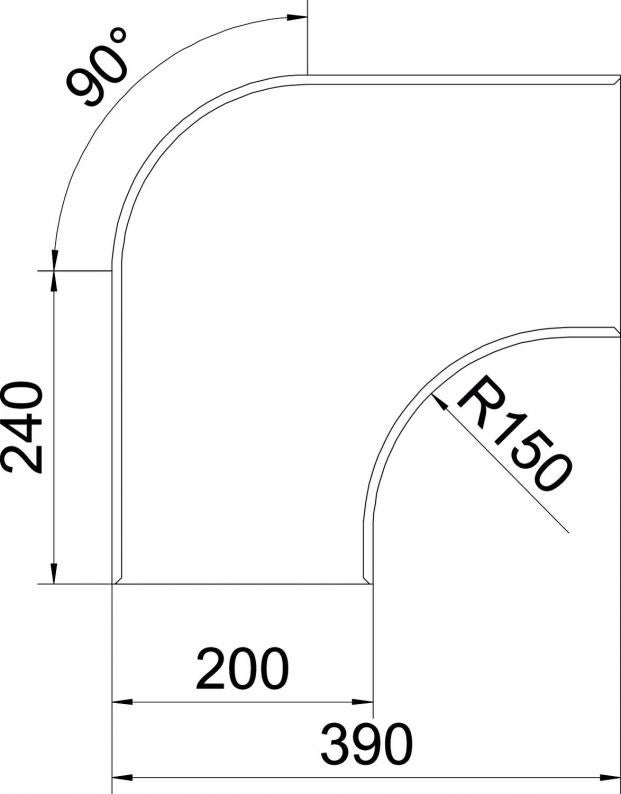

Dimensions
| Width | 200 mm |
|---|---|
| Height | 100 mm |
| Dimension B | 200 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | no |
| Connector version | Without connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Bend (angle) | 90° |
| Change of direction | Horizontal |
| Dimension | 100x200 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (6)
Declarations (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)
Variants
Type
Width
Surface
Material
Colour
Item no.
GKSB 90 115 FS
150
Strip galvanized
Steel
zinc
6480142
GKSB 90 120 FS
200
Strip galvanized
Steel
zinc
6480143
GKSB 90 130 FS
300
Strip galvanized
Steel
zinc
6480144
GKSB 90 140 FS
400
Strip galvanized
Steel
zinc
6480145
GKSB 90 150 FS
500
Strip galvanized
Steel
zinc
6480146
Width
GKSB 90 115 FS
Item no.
6480142
Width
150
Surface
Strip galvanized
Material
Steel
Colour
zinc
GKSB 90 120 FS
Item no.
6480143
Width
200
Surface
Strip galvanized
Material
Steel
Colour
zinc
GKSB 90 130 FS
Item no.
6480144
Width
300
Surface
Strip galvanized
Material
Steel
Colour
zinc
GKSB 90 140 FS
Item no.
6480145
Width
400
Surface
Strip galvanized
Material
Steel
Colour
zinc
GKSB 90 150 FS
Item no.
6480146
Width
500
Surface
Strip galvanized
Material
Steel
Colour
zinc
