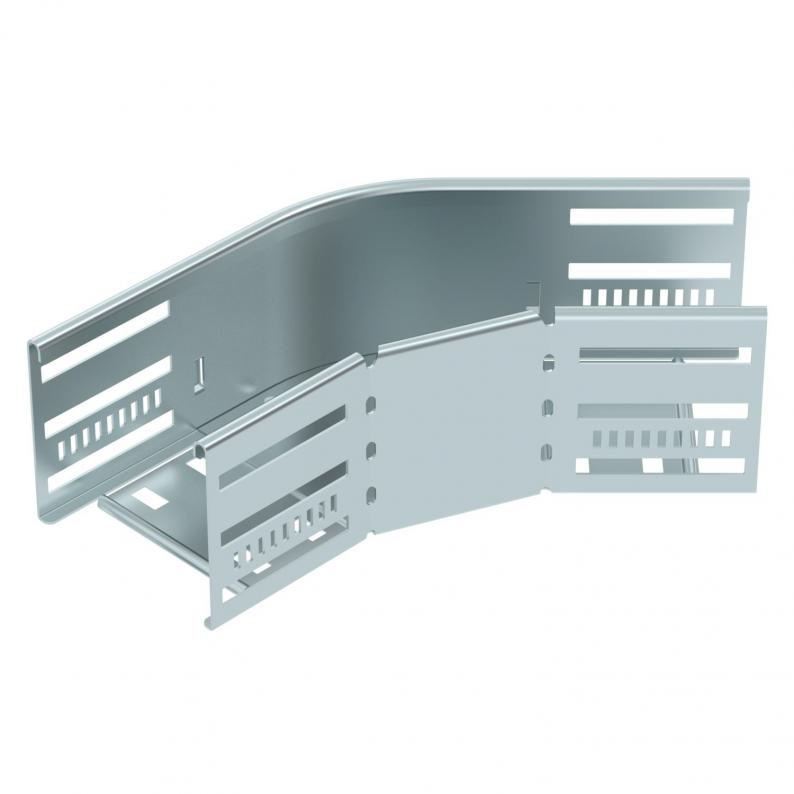

45° bend 85 FS
Type RB 45 810 FS
|Item no. 6036200
|EAN 4012197345372
Item no. / Type
Width
Surface
Strip galvanized
Material
Steel
Colour
zinc
Smallest selling unit: 1 piece
1piece
piece
Description
45° bend for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 85 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used in indoor areas. Fastening material must be ordered separately.
Technical data

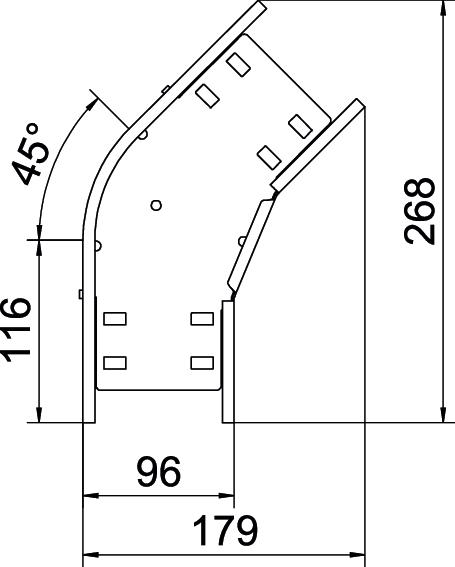

Dimensions
| Width | 100 mm |
|---|---|
| Height | 85 mm |
| Dimension B | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | yes |
| Connector version | Integrated connector |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 0,8 mm |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| Material thickness, floor plate | 0,8 mm |
| Bend (angle) | 45° |
| Change of direction | Horizontal |
| With cover | no |
| Type | Bend, rigid |
| Rail thickness | 1,25 mm |
| Permitted temperature range, min. | -20 °C |
| Permitted temperature range, max. | 120 °C |
| Dimension | 85x100 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | screwed/clamped |
| Recommended quantity of bolts | 14 St. |
| CO2 Footprint (GWP) Cradle-to-Gate | 2,0769 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Accessories
System accessories
Mounting accessories
Article
Type
Item no.
Amount
Variants
Type
Width
Surface
Material
Colour
Item no.
RB 45 810 FS
100
Strip galvanized
Steel
zinc
6036200
RB 45 820 FS
200
Strip galvanized
Steel
zinc
6036202
RB 45 830 FS
300
Strip galvanized
Steel
zinc
6036204
RB 45 840 FS
400
Strip galvanized
Steel
zinc
6036206
RB 45 850 FS
500
Strip galvanized
Steel
zinc
6036208
RB 45 860 FS
600
Strip galvanized
Steel
zinc
6036210
