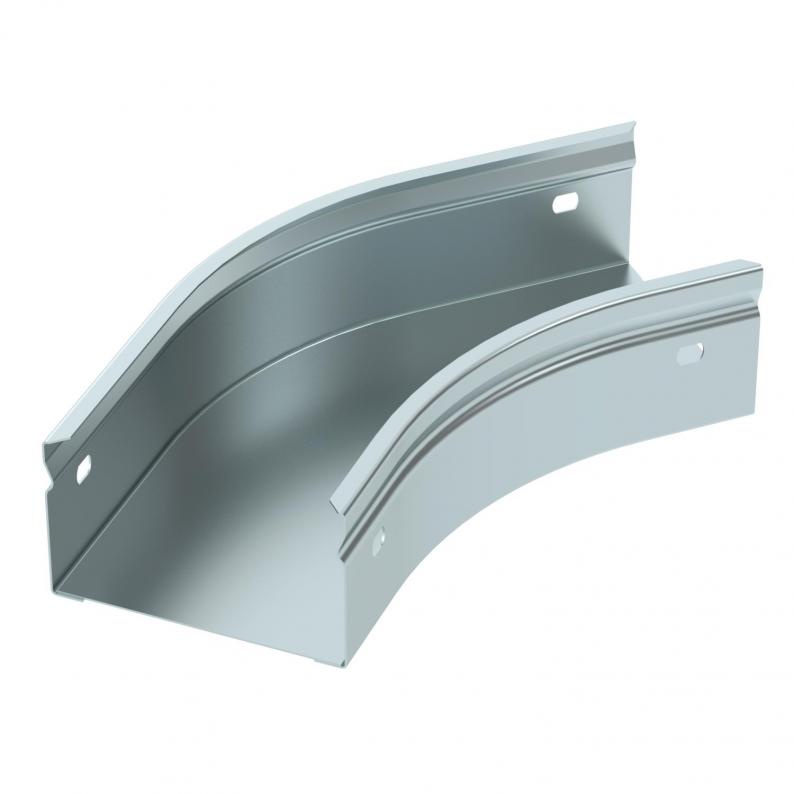

45° bend 60 FS, horizontal
Type GKSB 45 610 FS
|Item no. 6480161
|EAN 4012195486961
Item no. / Type
Width
Surface
Strip galvanized
Material
Steel
Colour
zinc
Smallest selling unit: 1 piece
1piece
piece
Description
45° bend, horizontal, for all cable tray types of the series GKS... of 60 mm side height.
Technical data

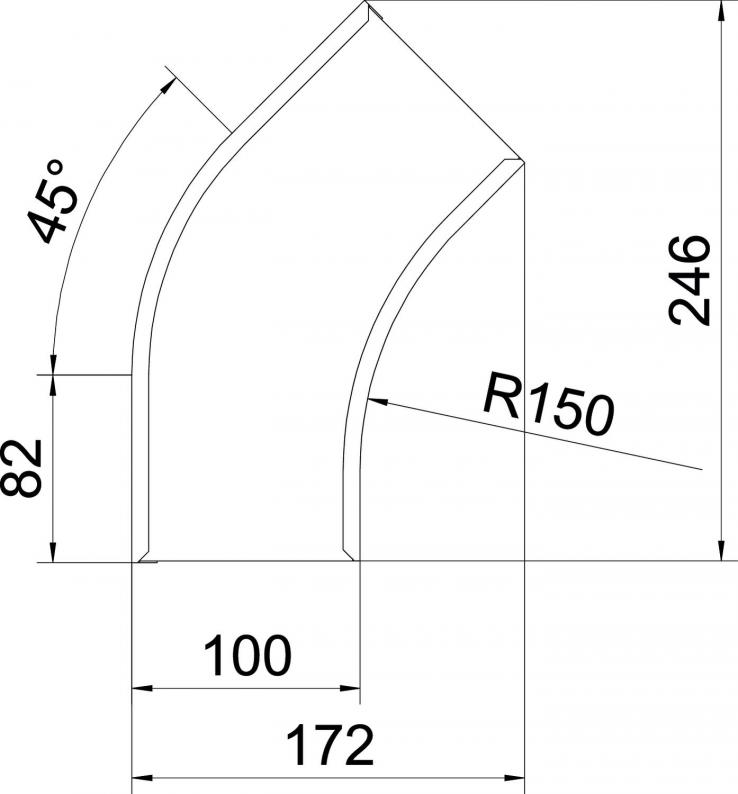

Dimensions
| Width | 100 mm |
|---|---|
| Height | 60 mm |
| Dimension A | 250 mm |
| Dimension B | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | no |
| Connector version | Without connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Bend (angle) | 45° |
| Change of direction | Horizontal |
| Dimension | 60x100 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (6)
Declarations (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Variants
Type
Width
Surface
Material
Colour
Item no.
GKSB 45 610 FS
100
Strip galvanized
Steel
zinc
6480161
GKSB 45 615 FS
150
Strip galvanized
Steel
zinc
6480162
GKSB 45 620 FS
200
Strip galvanized
Steel
zinc
6480163
GKSB 45 630 FS
300
Strip galvanized
Steel
zinc
6480164
GKSB 45 640 FS
400
Strip galvanized
Steel
zinc
6480165
GKSB 45 650 FS
500
Strip galvanized
Steel
zinc
6480166
Width
GKSB 45 610 FS
Item no.
6480161
Width
100
Surface
Strip galvanized
Material
Steel
Colour
zinc
GKSB 45 615 FS
Item no.
6480162
Width
150
Surface
Strip galvanized
Material
Steel
Colour
zinc
GKSB 45 620 FS
Item no.
6480163
Width
200
Surface
Strip galvanized
Material
Steel
Colour
zinc
GKSB 45 630 FS
Item no.
6480164
Width
300
Surface
Strip galvanized
Material
Steel
Colour
zinc
GKSB 45 640 FS
Item no.
6480165
Width
400
Surface
Strip galvanized
Material
Steel
Colour
zinc
GKSB 45 650 FS
Item no.
6480166
Width
500
Surface
Strip galvanized
Material
Steel
Colour
zinc
