45° bend 100 FS, horizontal
Type GKSB 45 115 FS
|Item no. 6480182
|EAN 4012195487128
Item no. / Type
Width
Surface
Strip galvanized
Material
Steel
Colour
zinc
Smallest selling unit: 1 piece
1piece
piece
Description

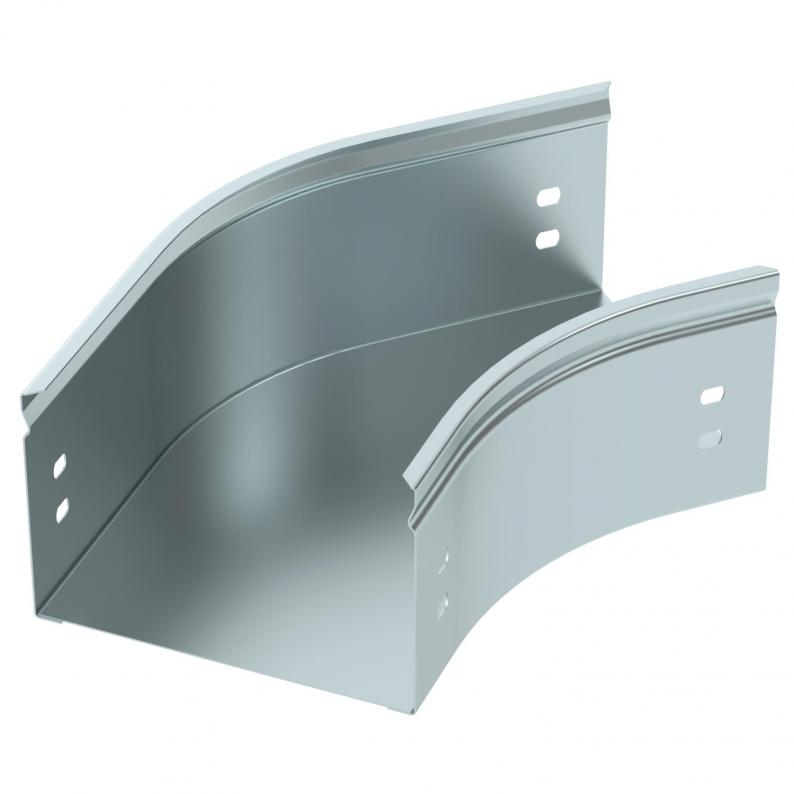

45° bend, horizontal, for all cable tray types of the series GKS... of 100 mm side height.
Technical data

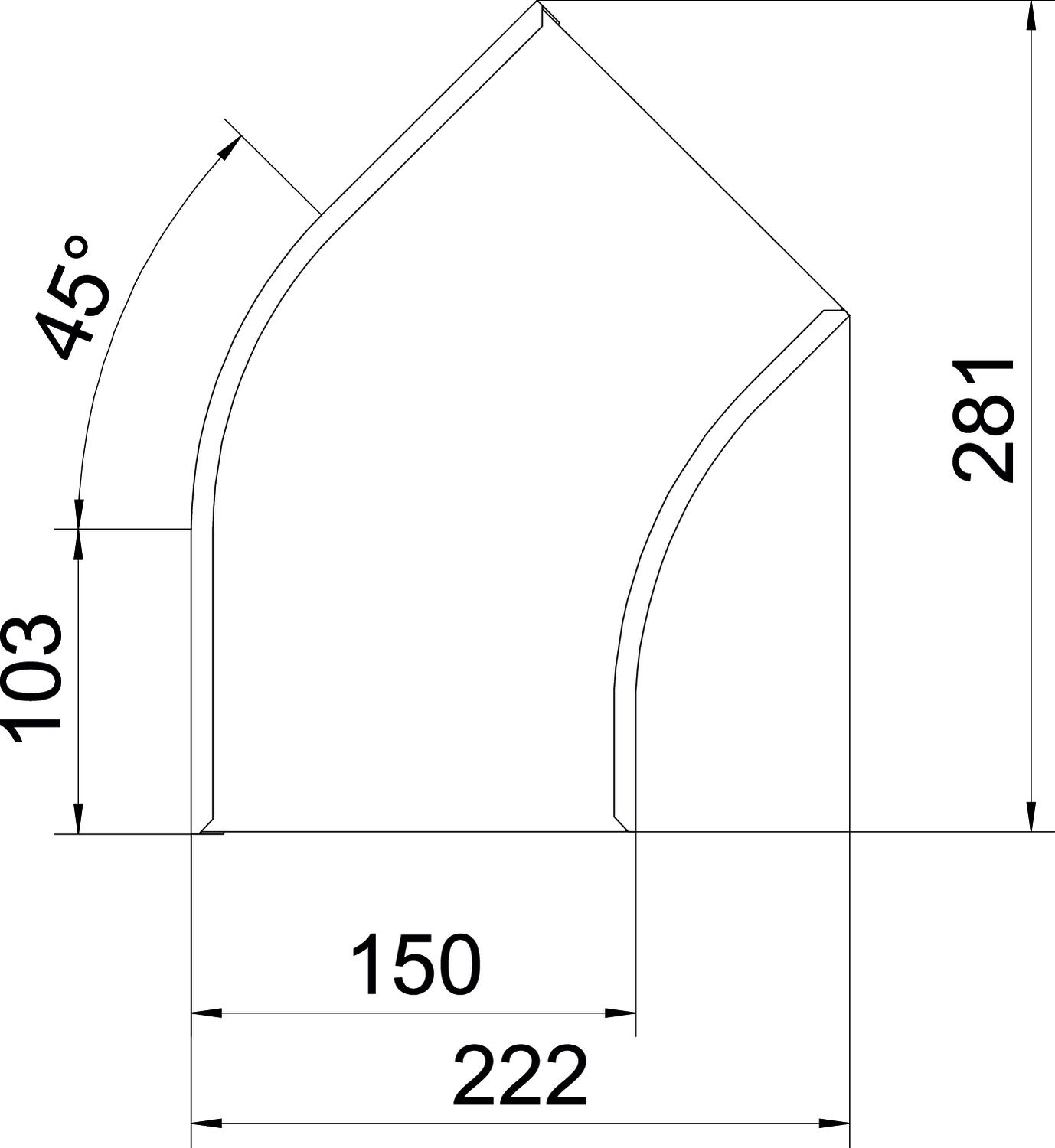

Dimensions
| Width | 150 mm |
|---|---|
| Height | 100 mm |
| Dimension A | 280 mm |
| Dimension B | 150 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | no |
| Connector version | Without connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Bend (angle) | 45° |
| Change of direction | Horizontal |
| Dimension | 100x150 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (6)
Declarations (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Variants
Type
Width
Surface
Material
Colour
Item no.
GKSB 45 115 FS
150
Strip galvanized
Steel
zinc
6480182
GKSB 45 120 FS
200
Strip galvanized
Steel
zinc
6480183
GKSB 45 130 FS
300
Strip galvanized
Steel
zinc
6480184
GKSB 45 140 FS
400
Strip galvanized
Steel
zinc
6480185
GKSB 45 150 FS
500
Strip galvanized
Steel
zinc
6480186
Width
GKSB 45 115 FS
Item no.
6480182
Width
150
Surface
Strip galvanized
Material
Steel
Colour
zinc
GKSB 45 120 FS
Item no.
6480183
Width
200
Surface
Strip galvanized
Material
Steel
Colour
zinc
GKSB 45 130 FS
Item no.
6480184
Width
300
Surface
Strip galvanized
Material
Steel
Colour
zinc
GKSB 45 140 FS
Item no.
6480185
Width
400
Surface
Strip galvanized
Material
Steel
Colour
zinc
GKSB 45 150 FS
Item no.
6480186
Width
500
Surface
Strip galvanized
Material
Steel
Colour
zinc
