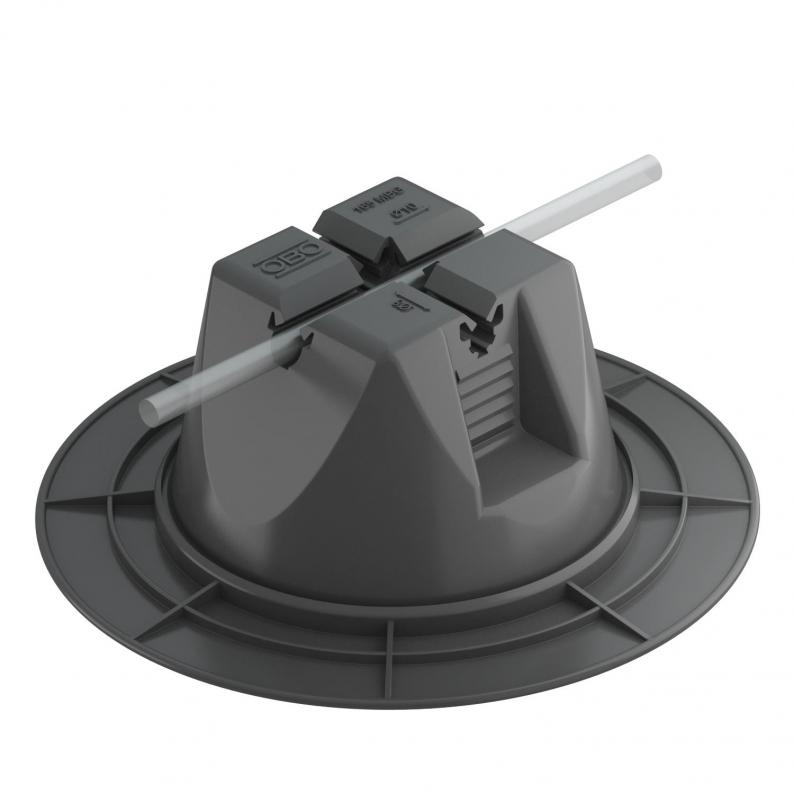

165 MBG... roof cable holder for flat roofs, with increased base section
Type 165 MBG-8-10 200
|Item no. 5218716
|EAN 4012196648320
Item no. / Type
5218716 / 165 MBG-8-10 200
Smallest selling unit: 4 piece
4piece
piece
Description
• Closed form with base
• With double conductor holder
• Filling weight 1 kg (frost-resistant concrete)
• Sleeve from polyethylene, black, UV-resistant and weatherproof
• Base made of polypropylene, black, UV-resistant and weather-resistant
• With larger base section (Ø 200 mm) for better stability
• With double conductor holder
• Filling weight 1 kg (frost-resistant concrete)
• Sleeve from polyethylene, black, UV-resistant and weatherproof
• Base made of polypropylene, black, UV-resistant and weather-resistant
• With larger base section (Ø 200 mm) for better stability
Technical data

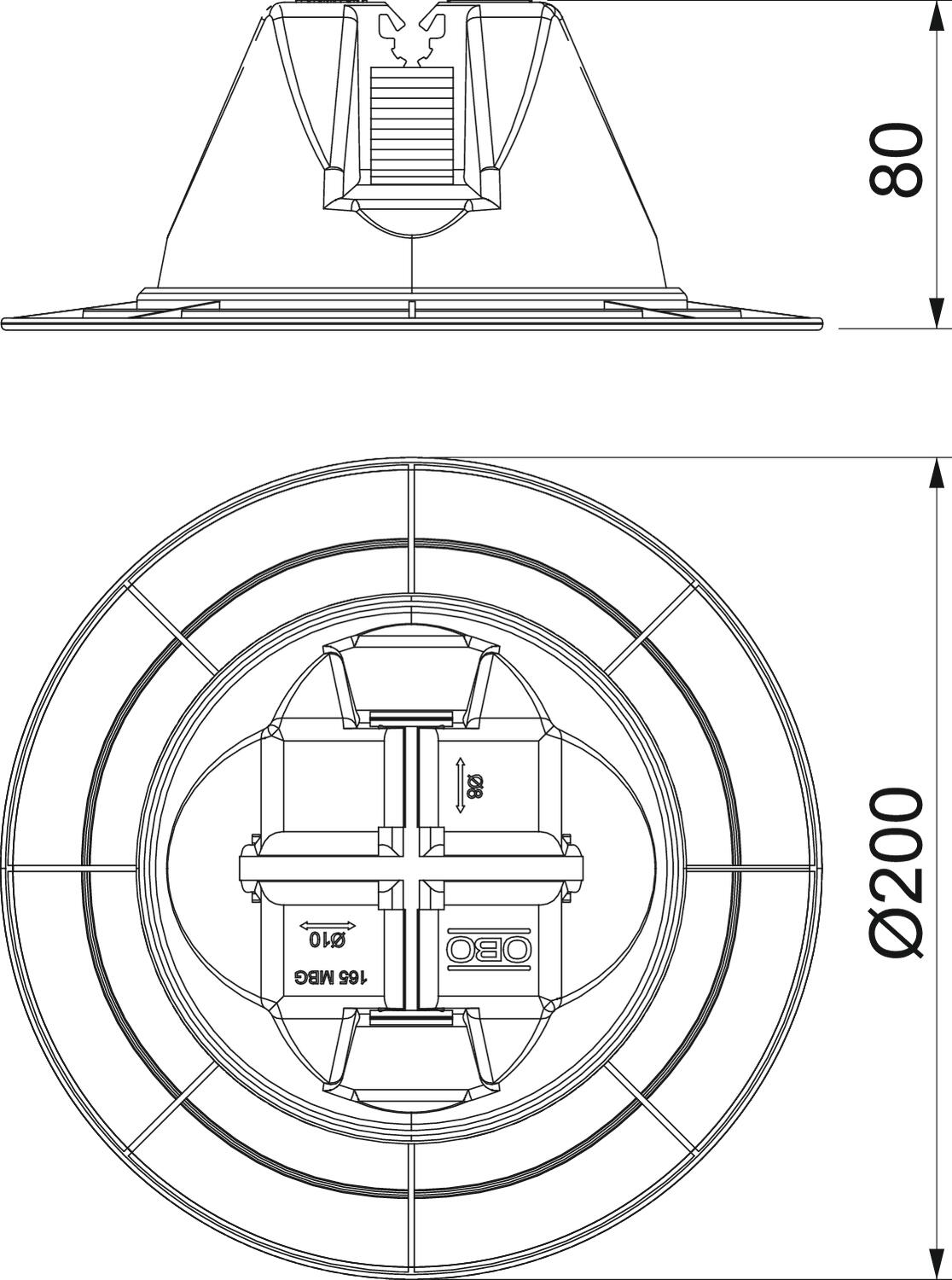

Dimensions
| Length | 200 mm |
|---|
Technical data
| Conductor diameter, min. | 8 |
|---|---|
| Conductor diameter, max. | 10 |
| Conductor fastening type | With clip |
| Application | Flat roof |
| Mounting type | Miscellaneous |
| Fit | Rd 8-10 mm |
| Dimension | 8-10mm |
| Material | Polypropylene/Polyethylene |
| Colour | Black |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,6741 kg CO2e / 1 Piece |
