100 FS reducer/stop-end
Type RWEB 1040 FS
|Item no. 7111808
|EAN 4012196341832
Item no. / Type
Width
Height
Smallest selling unit: 1 piece
1piece
piece
Description

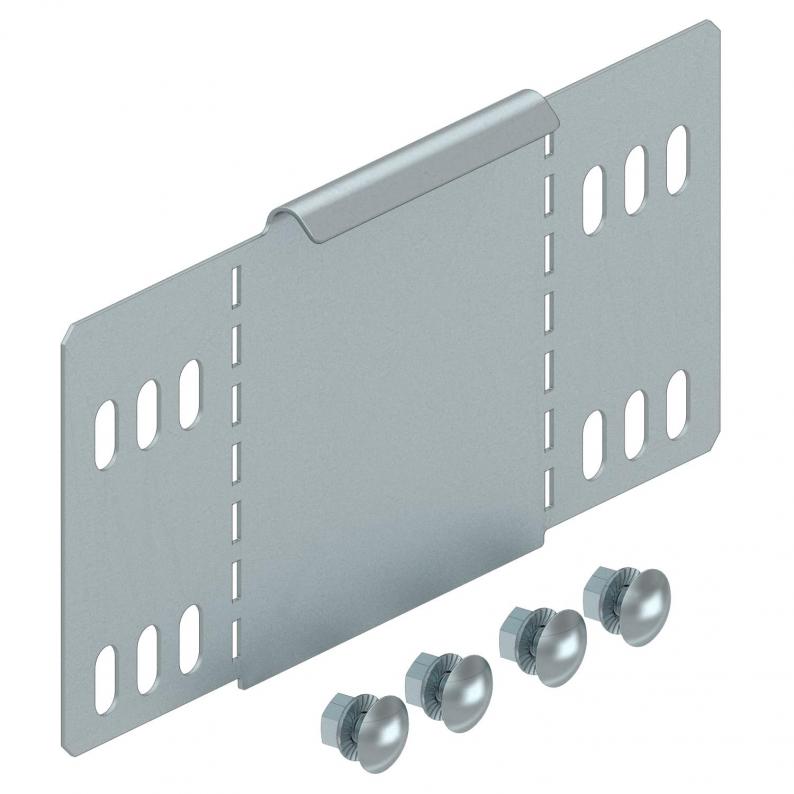

Reducer/stop-end for cable trays with side height 100 mm.
Including appropriate fastening material.
Technical data

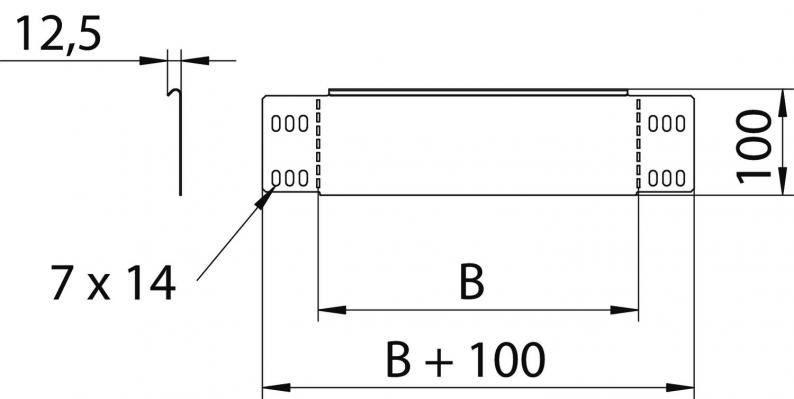

Dimensions
| Width | 400 mm |
|---|---|
| Height | 100 mm |
| Dimension B | 400 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Wide-span version | no |
| Plate thickness | 1 mm |
| Dimension | 100x400 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,1947 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Accessories
System accessories
Article
Type
Item no.
Amount
Item no. 6406122
Truss-head bolt with flange nut FType
FRSB 6x12 F
Smallest selling unit: 100 piece
100piece
piece
Variants
Type
Width
Height
Item no.
RWEB 1040 FS
400
100
7111808
RWEB 1050 FS
500
100
7111810
RWEB 1060 FS
600
100
7111812
Width
RWEB 1040 FS
Item no.
7111808
Width
400
Height
100
RWEB 1050 FS
Item no.
7111810
Width
500
Height
100
RWEB 1060 FS
Item no.
7111812
Width
600
Height
100
