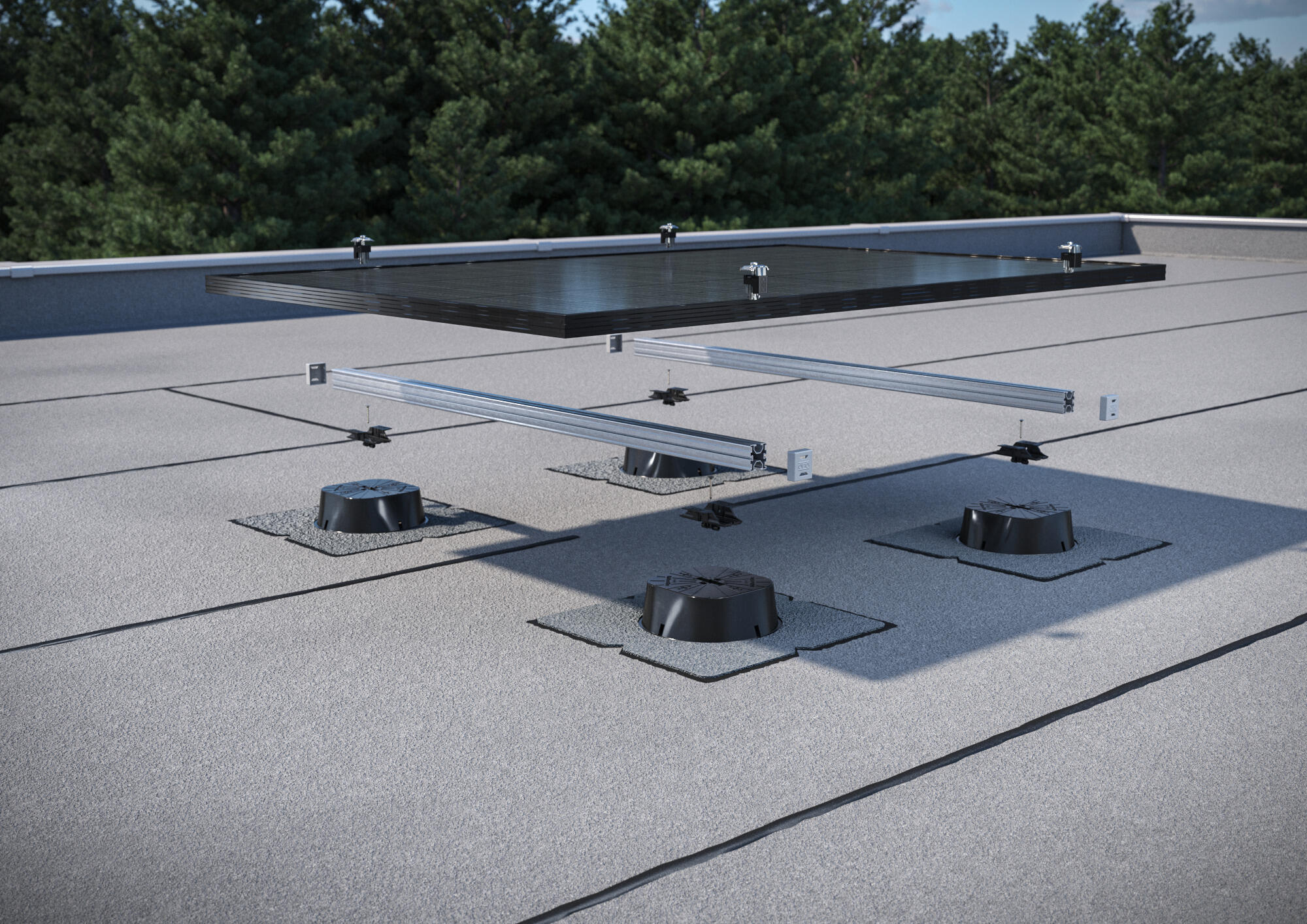

Magic PV Flat Glue

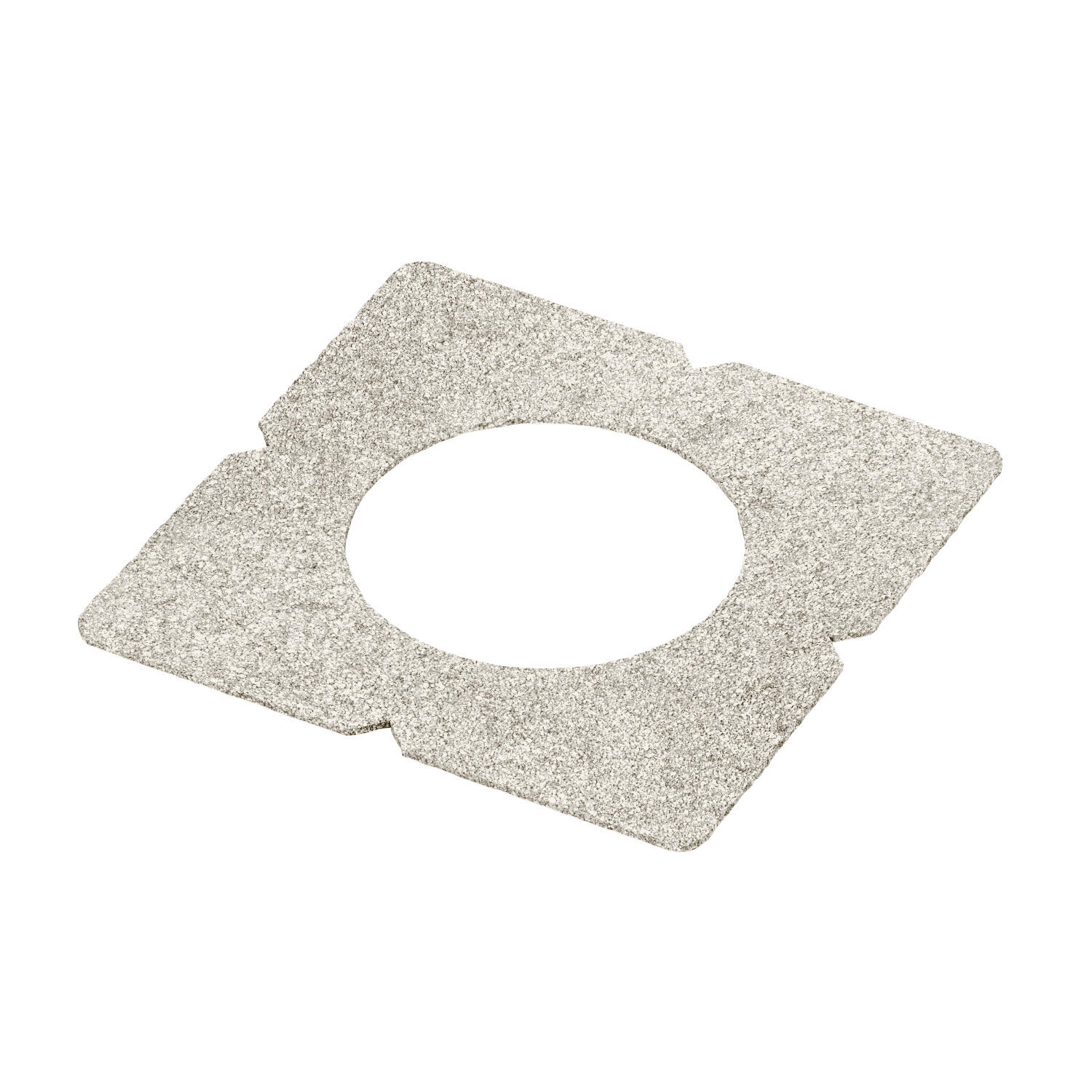

The bitumen fastening sleeve is suitable for the adhesive fastening of the UniBase Glue universal base and holds it in position. It can be used on flat roofs with bitumen waterproofing and a roof pitch of a maximum of up to 3°.

• For adhesive fastening of the UniBase Glue base
• Suitable for flat roofs with a bitumen seal
• Can be used for a roof pitch up to 3°
• Keeps the UniBase Glue securely in position

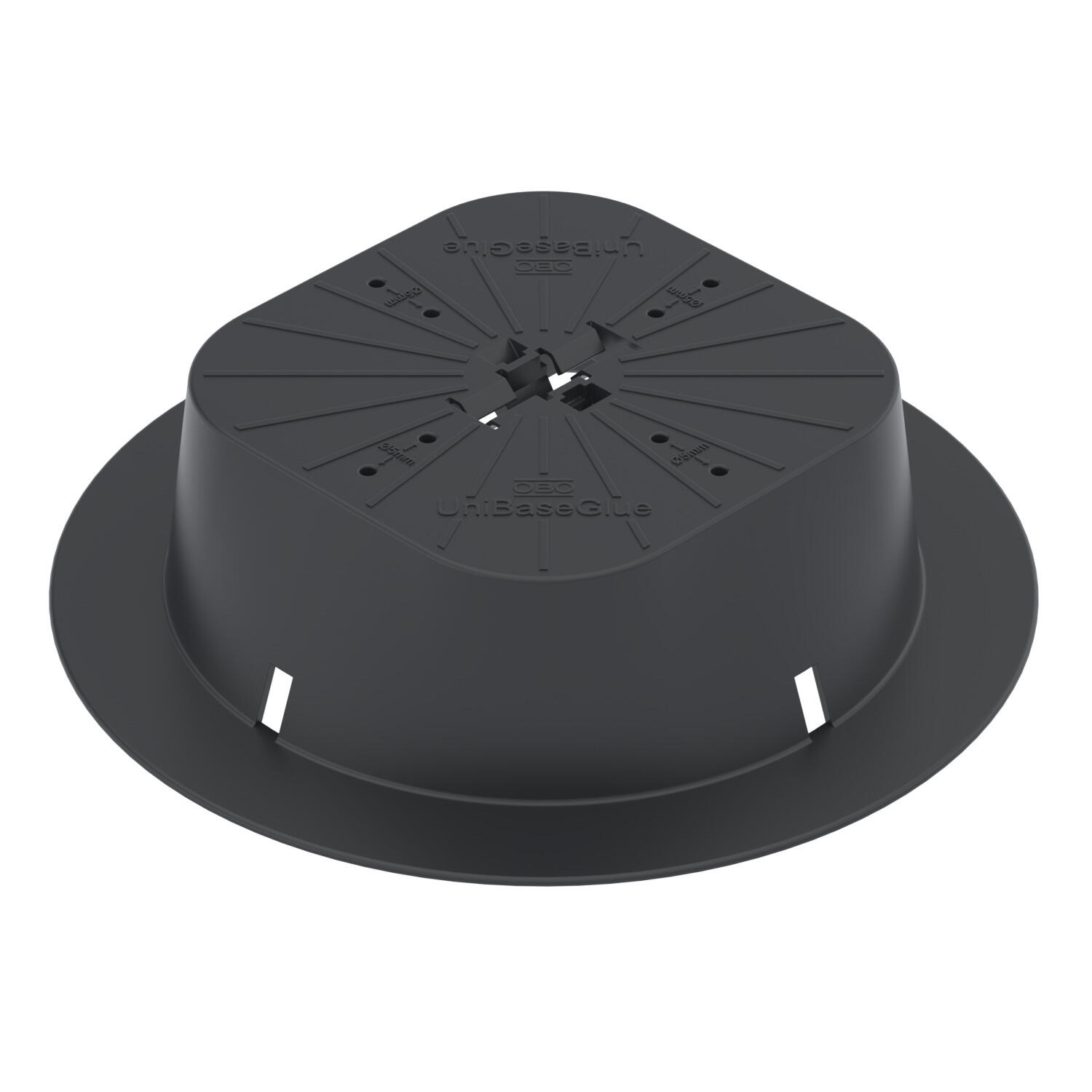

UniBase Glue universal base for bonding

The universal base is suitable for bonding on flat roofs. It can be used for routing cables with cable trays or mesh cable trays in conjunction with the 165 MBG HGRM roof conductor holder from the OBO product range. Please note: The glueing collar for fixing the base must be selected to match the substrate – OBO offers a variety of plastic and bitumen options.

• For bonding on flat roofs
• Can be used for routing cables with cable trays or mesh cable trays
• Held in position by glueing collar
• Select the glueing collar according to the substrate

The EK45G end cap offers a secure and clean solution for connecting installation profiles in PV systems. Developed for the support profile with the dimensions 44×49×16 mm, it protects against dirt, moisture and mechanical hazards, and therefore supports the longevity and reliability of your PV installation. This small but essential accessory contributes to the overall quality of your solar system – for an all-round professional installation.

• Protects profile ends against moisture
• Prevents accumulation of dirt and water
• Increases safety on the roof
• UV-proof and weatherproof PE material
• Suitable for 44×49×16 mm support profiles

The TP45 4700 ALU support profile is the stable foundation for modern PV mounting systems. With a groove on both sides, a latchable connection to supports and a high load-bearing capacity, it is ideal for flat roofs and pitched roofs. The durable aluminium profile supports safe, flexible and time-saving installation of solar modules – ideal for large and small PV systems.

• Suitable for flat and pitched roofs
• Latchable fastening with system components
• Grooves on both sides for module and earthing terminals
• High load-bearing capacity due to solid cross-section dimensions
• Corrosion-resistant aluminium profile (4,700 mm)

The adapter for the TP45 support profile is the clever fastening solution for your PV substrate on flat roofs. It enables tool-free installation by latching into position, and offers a non-slip support surface and additional holes for optional fastening – so that your PV installation is not only quick, but also safe and durable. Ideal in combination with the TP45 system for efficient solar system installations.

• Tool-free latching
• Screw fastening as an option
• Non-slip surface
• Suitable for TP45 system
• UV-proof and weatherproof

The KLU A2 universal clamp (item no. 5901010) from OBO is a versatile solution for the reliable fixing of PV modules – on both flat roofs and pitched roofs. It enables latchable pre-fastening to the TP45 support profile or on STK/STL supports, can be rotated by 90° and is designed for module frame heights from 30 mm to 50 mm. With a Torx 30 screw connection, it ensures precise and secure installation. Ideal for PV projects where flexibility, system compatibility and installation efficiency are important.

• For flat and pitched roofs – can be used as an intermediate or end clamp
• Latchable pre-fastening to TP45 and STK/STL supports
• Can be rotated by 90° after engaging – flexible arrangement possible
• Suitable for frame heights from 30 mm to 50 mm
• Fastening with Torx 30 – for safe, tool-guided assembly
