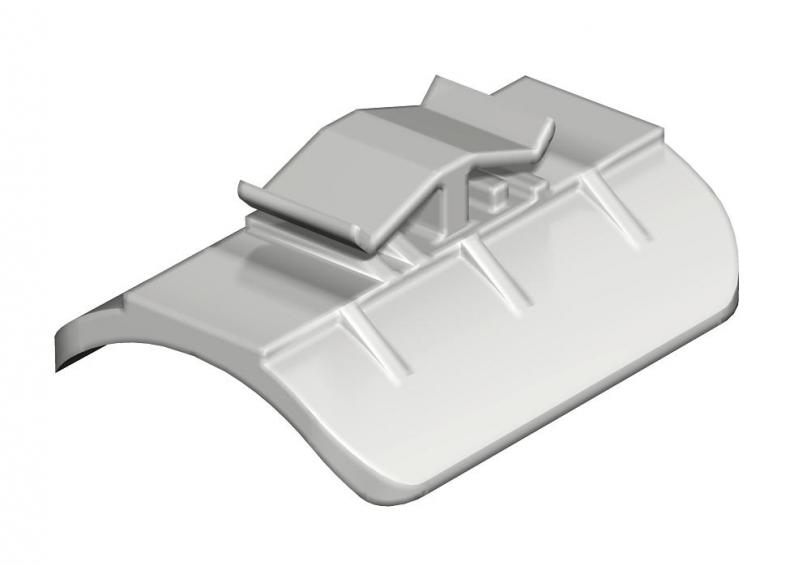

Counter-trough, plastic 16–17 mm slot width
Type 2058 34 LGR
|Item no. 1195344
|EAN 4012195081616
Item no. / Type
Dimension L
Dimension B
Dimension H
Clamping range D, min.
Clamping range D, max.
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 100 piece
100piece
piece
Description
Counter trough 28–34 mm
Technical data

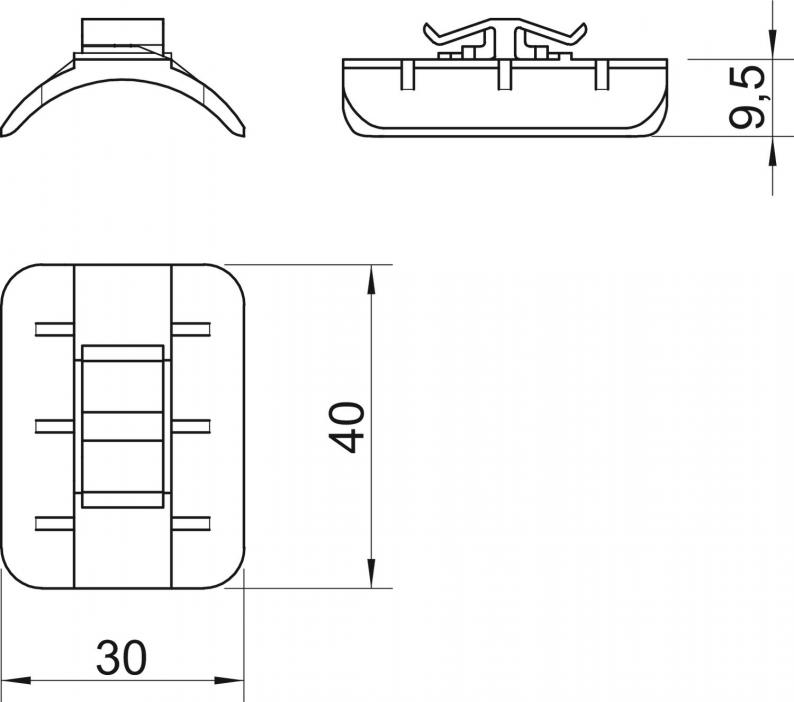

Dimensions
| Dimension L | 40 mm |
|---|---|
| Dimension B | 30 mm |
| Dimension H | 9,5 mm |
Technical data
| Halogen-free | yes |
|---|---|
| Counter-trough/clip version | Counter sleeve |
| Suitable for max. cable diameter | 34 mm |
| Clamping range D, min. | 28 mm |
| Clamping range D, max. | 34 mm |
| Dimension | 28-34mm |
| Material | Polypropylene |
| Colour | Light grey; RAL 7035 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,012 kg CO₂e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Dimension L
Dimension B
Dimension H
Clamping range D, min.
Clamping range D, max.
Item no.
2058 34 LGR
40
30
9,5
28
34
1195344
2058 40 LGR
40
35
10,8
34
40
1195409
2058 46 LGR
40
40
12,2
40
46
1195468
2058 52 LGR
40
42
11
46
52
1195522
2058 58 LGR
40
45
11,5
52
58
1195581
Dimension B
Dimension H
Clamping range D, min.
Clamping range D, max.
2058 34 LGR
Item no.
1195344
Dimension L
40
Dimension B
30
Dimension H
9,5
Clamping range D, min.
28
Clamping range D, max.
34
2058 40 LGR
Item no.
1195409
Dimension L
40
Dimension B
35
Dimension H
10,8
Clamping range D, min.
34
Clamping range D, max.
40
2058 46 LGR
Item no.
1195468
Dimension L
40
Dimension B
40
Dimension H
12,2
Clamping range D, min.
40
Clamping range D, max.
46
2058 52 LGR
Item no.
1195522
Dimension L
40
Dimension B
42
Dimension H
11
Clamping range D, min.
46
Clamping range D, max.
52
2058 58 LGR
Item no.
1195581
Dimension L
40
Dimension B
45
Dimension H
11,5
Clamping range D, min.
52
Clamping range D, max.
58
