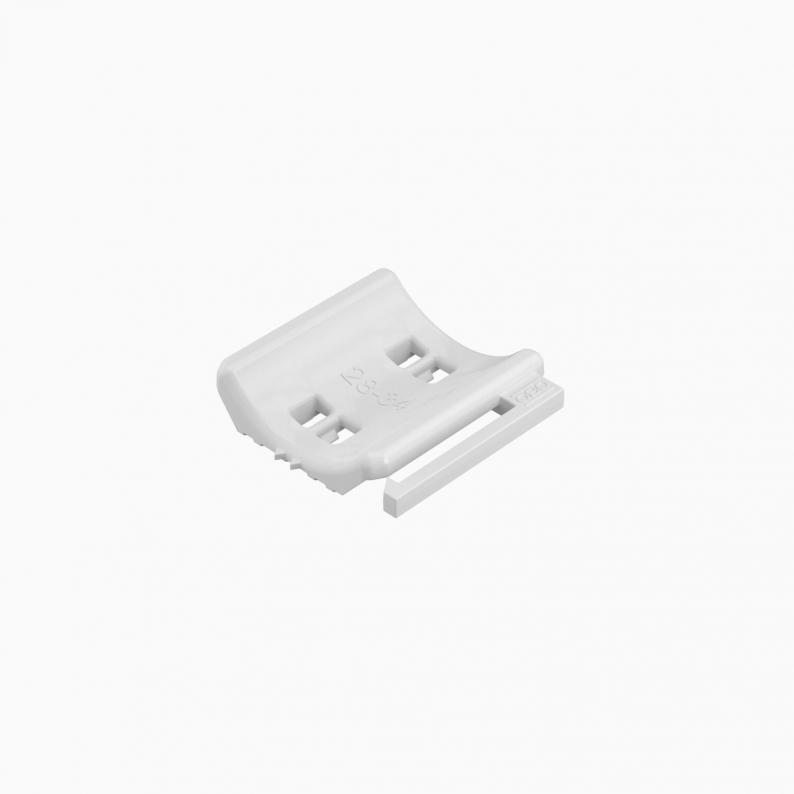

Universal counter-trough, plastic
Type 2058UW 34 LGR
|Item no. 1198034
|EAN 4012196636181
Item no. / Type
Dimension L
Dimension B
Dimension H
Clamping range D, min.
Clamping range D, max.
Smallest selling unit: 100 piece
100piece
piece
Description
Regardless of the type of rail, the counter-trough can be used by applying it onto one side of the clamp clip. Due to an intelligent contour on the backside, the counter-trough can be combined to a double trough. Retrofitting possible without the need to dismantle.
Technical data
Dimensions
| Dimension L | 37 mm |
|---|---|
| Dimension B | 45,5 mm |
| Dimension H | 9,8 mm |
Technical data
| Counter-trough/clip version | Counter sleeve |
|---|---|
| Suitable for max. cable diameter | 34 mm |
| Clamping range D, min. | 28 mm |
| Clamping range D, max. | 34 mm |
| Dimension | 28-34mm |
| Material | Polypropylene |
| Colour | Light grey; RAL 7035 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,016 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Dimension L
Dimension B
Dimension H
Clamping range D, min.
Clamping range D, max.
Item no.
2058UW 12 LGR
37
18,5
5,8
8
12
1198012
2058UW 16 LGR
37
21,5
5,8
12
16
1198016
2058UW 22 LGR
37
27,5
6,8
16
22
1198022
2058UW 28 LGR
37
33,5
8,3
22
28
1198028
2058UW 34 LGR
37
45,5
9,8
28
34
1198034
2058UW 40 LGR
37
45,5
10,8
34
40
1198040
2058UW 46 LGR
40
51,5
11,8
40
46
1198046
2058UW 52 LGR
40
57,5
11,8
46
52
1198052
2058UW 58 LGR
40
63,5
11,8
52
58
1198058
2058UW 64 LGR
40
69,5
11,8
58
64
1198064
2058UW 70 LGR
40
75,5
12,3
64
70
1198070
2058UW 76 LGR
40
81,5
12,3
70
76
1198076
2058UW 82 LGR
40
87,5
12,3
76
82
1198082
2058UW 90 LGR
40
96
12,8
82
90
1198090
2058UW 100 LGR
40
106
12,8
90
100
1198100
Dimension L
Dimension B
Dimension H
Clamping range D, min.
Clamping range D, max.
2058UW 12 LGR
Item no.
1198012
Dimension L
37
Dimension B
18,5
Dimension H
5,8
Clamping range D, min.
8
Clamping range D, max.
12
2058UW 16 LGR
Item no.
1198016
Dimension L
37
Dimension B
21,5
Dimension H
5,8
Clamping range D, min.
12
Clamping range D, max.
16
2058UW 22 LGR
Item no.
1198022
Dimension L
37
Dimension B
27,5
Dimension H
6,8
Clamping range D, min.
16
Clamping range D, max.
22
2058UW 28 LGR
Item no.
1198028
Dimension L
37
Dimension B
33,5
Dimension H
8,3
Clamping range D, min.
22
Clamping range D, max.
28
2058UW 34 LGR
Item no.
1198034
Dimension L
37
Dimension B
45,5
Dimension H
9,8
Clamping range D, min.
28
Clamping range D, max.
34
2058UW 40 LGR
Item no.
1198040
Dimension L
37
Dimension B
45,5
Dimension H
10,8
Clamping range D, min.
34
Clamping range D, max.
40
2058UW 46 LGR
Item no.
1198046
Dimension L
40
Dimension B
51,5
Dimension H
11,8
Clamping range D, min.
40
Clamping range D, max.
46
2058UW 52 LGR
Item no.
1198052
Dimension L
40
Dimension B
57,5
Dimension H
11,8
Clamping range D, min.
46
Clamping range D, max.
52
2058UW 58 LGR
Item no.
1198058
Dimension L
40
Dimension B
63,5
Dimension H
11,8
Clamping range D, min.
52
Clamping range D, max.
58
2058UW 64 LGR
Item no.
1198064
Dimension L
40
Dimension B
69,5
Dimension H
11,8
Clamping range D, min.
58
Clamping range D, max.
64
2058UW 70 LGR
Item no.
1198070
Dimension L
40
Dimension B
75,5
Dimension H
12,3
Clamping range D, min.
64
Clamping range D, max.
70
2058UW 76 LGR
Item no.
1198076
Dimension L
40
Dimension B
81,5
Dimension H
12,3
Clamping range D, min.
70
Clamping range D, max.
76
2058UW 82 LGR
Item no.
1198082
Dimension L
40
Dimension B
87,5
Dimension H
12,3
Clamping range D, min.
76
Clamping range D, max.
82
2058UW 90 LGR
Item no.
1198090
Dimension L
40
Dimension B
96
Dimension H
12,8
Clamping range D, min.
82
Clamping range D, max.
90
2058UW 100 LGR
Item no.
1198100
Dimension L
40
Dimension B
106
Dimension H
12,8
Clamping range D, min.
90
Clamping range D, max.
100
