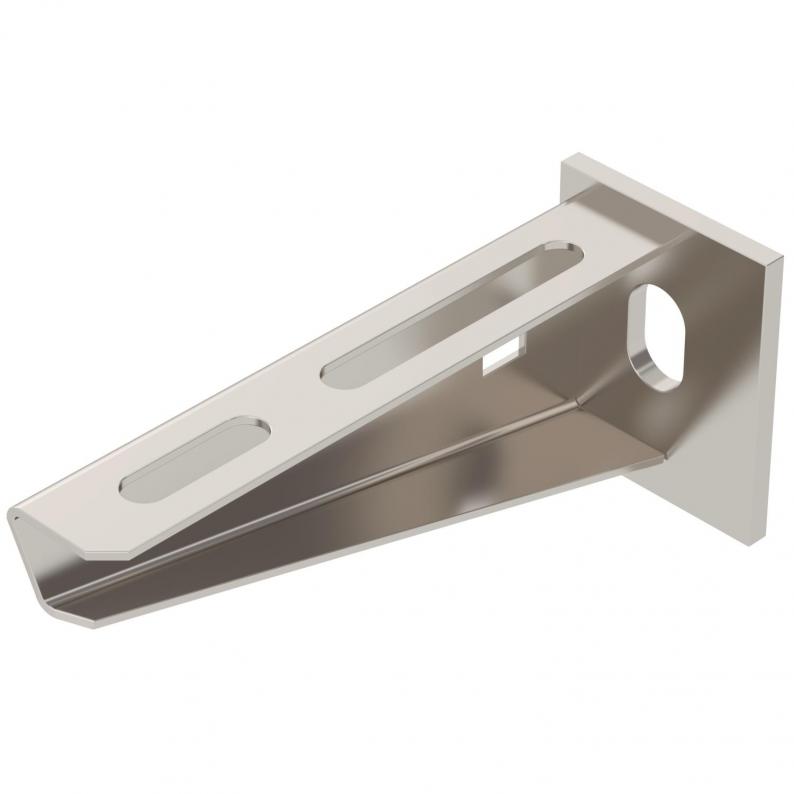

Wall and support bracket AW 15 A2

Wall and support bracket AW 15 A2

Type AW 15 11 A2
|
Item no. 6421008
|
EAN 4012196207558
Show all variants
Item no. / Type
Width
F in kN
Colour
stainless steel

Smallest selling unit: 1 piece

piece

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

Light-duty wall and support bracket with welded head plate.

Fastening of the bracket to the U support of width 400 mm or greater using a hexagonal bolt through both sides of the support. Please insert suitable spacers.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Wall and support brackets
  • U support
  • U support
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

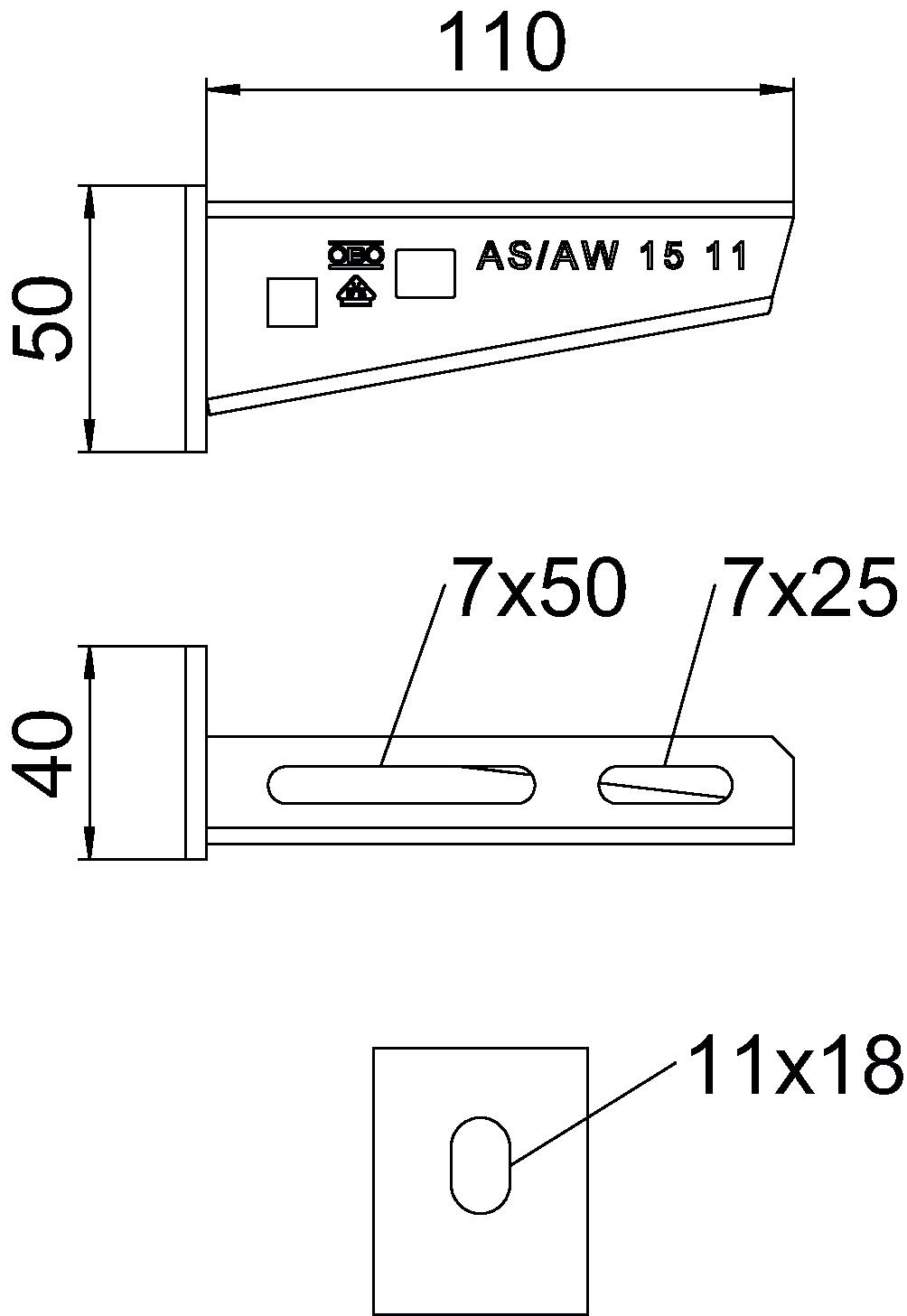

Dimensions

Length40 mm
Width110 mm
Height50 mm
Dimension A40 mm
Dimension B110 mm
Dimension H50 mm

Technical data

Maintain electrical functionsno
Rustproof steel, pickledyes
Angle range, min.90 mm
Angle range, max.90 mm
Hole diameter11 mm
Version forWall and support bracket
F in kN1,5 kN
DimensionB110mm
SurfaceBright, treated
MaterialStainless steel 1.4301
Colourstainless steel
CO2 Footprint (GWP) Cradle-to-Gate0,7583 kg CO2e / 1 Piece
Load diagram, bracket, type AW 15

Bending of the bracket tip at permitted bracket load

Permitted bracket load in kN without man load

Load curve with bracket lengths in mm
