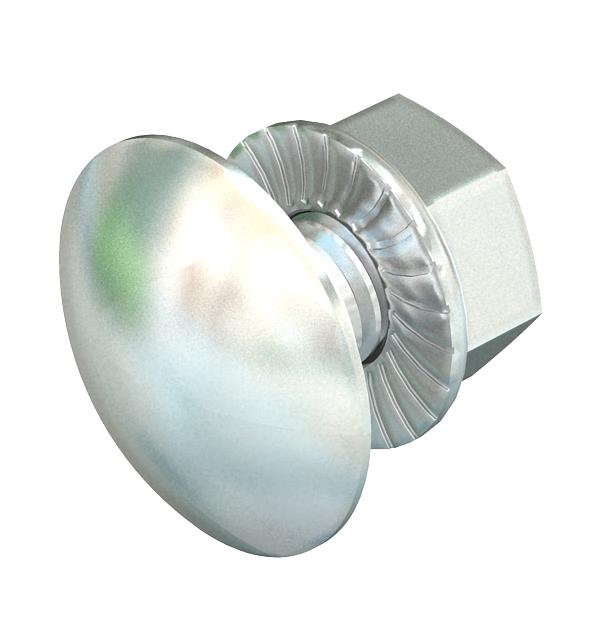

Truss-head bolt with flange nut A2
Type FRSB 6x12 A2
|Item no. 6406138
|EAN 4012196077595
Item no. / Type
6406138 / FRSB 6x12 A2
Surface
Bright, treated
Material
Stainless steel 1.4301
Smallest selling unit: 100 piece
100piece
piece
Description
Truss-head bolt with square neck and combination nut.
Technical data
Dimensions
| Length | 12 mm |
|---|---|
| Dimension L | 12 mm |
| Dimension d | 6 mm |
| Dimension D | 13,5 mm |
Technical data
| Thread metric | 6 |
|---|---|
| Screw system | Miscellaneous |
| Thread type | Metric |
| Resistance grade | A2-70 |
| With washer | no |
| With nut | yes |
| Self-locking | no |
| With flange | no |
| WAF | 10 |
| Full thread | yes |
| Dimension | M6x12 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
| Left thread | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0392 kg CO2e / 1 Piece |
