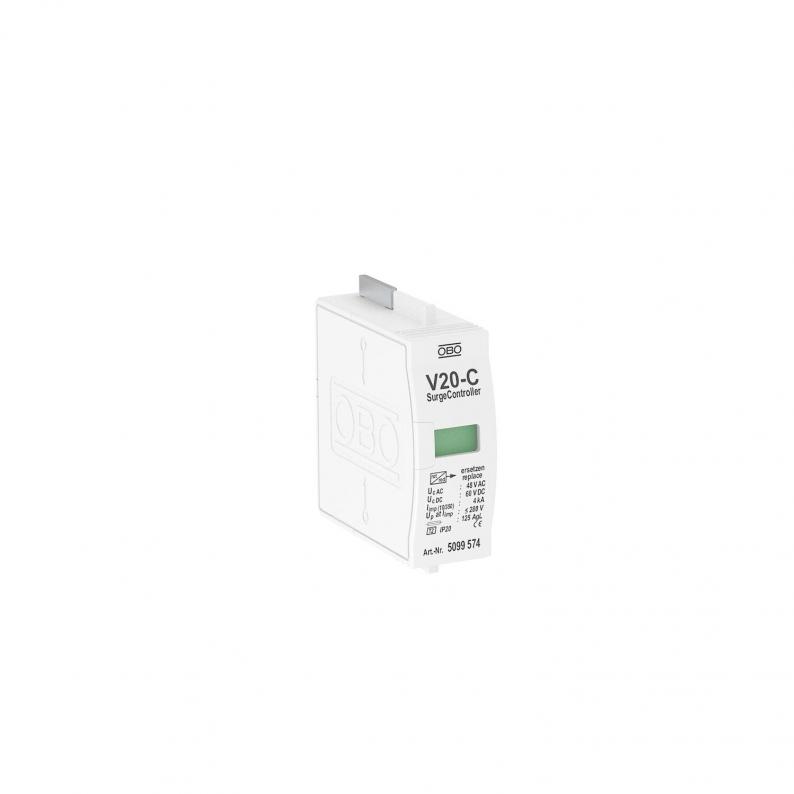

SurgeController V20, plug-in arrester 48 V
Type V20-C 0-48
|Item no. 5099574
|EAN 4012195044987
Item no. / Type
Maximum continuous voltage AC
Protection rating
IP20
Pole version
1
This item is a discontinued product!
Smallest selling unit: 1 piece
1piece
piece
Description
Surge arrester, type 2
• Plug-in arrester, can be separated from base without tools
• Including thermal and dynamic separating device and visual status display
• High current conductivity and long service life
• Plug-in arrester, can be separated from base without tools
• Including thermal and dynamic separating device and visual status display
• High current conductivity and long service life
Technical data
Technical data
| Network form | TN |
|---|---|
| Signalling on device | Visual |
| Protection rating | IP20 |
| Nominal discharge current (8/20 µs) [L-N] | 20 kA |
| Test class, type 2 | yes |
| Nominal voltage AC (50/60 Hz) | 48 V |
| Integrated back-up fuse | no |
| Lightning surge current (10/350 μs) | 4 kA |
| Maximum continuous voltage AC | 48 V |
| Maximum continuous voltage DC | 60 V |
| Nominal discharge current (8/20 µs) | 15 kA |
| Pole version | 1 |
| Installation type | DIN rail 35 mm |
| Max. mains-side overcurrent protection | 125 |
| Operating temperature, min. | -40 °C |
| Operating temperature, max. | 80 °C |
| SPD to IEC 61643-1 | Class II |
| SPD to EN 61643-11 | Type 2 |
| Lightning protection zone LPZ | 0→2 |
| Maximum discharge current (8/20 μs) | 40 kA |
| Response time | <25 ns |
| Maximum back-up fuse | 125 A |
| Permitted temperature range, min. | -40 °C |
| Permitted temperature range, max. | 80 °C |
| Dimension | 48V |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1265 kg CO₂e / 1 Piece |
Connectivity options
| Arrester surge current (8/20 µs) [total] | 20 kA |
|---|---|
| Conductor cross-section, rigid (single-wire/multiwire), min. | 2,5 mm² |
