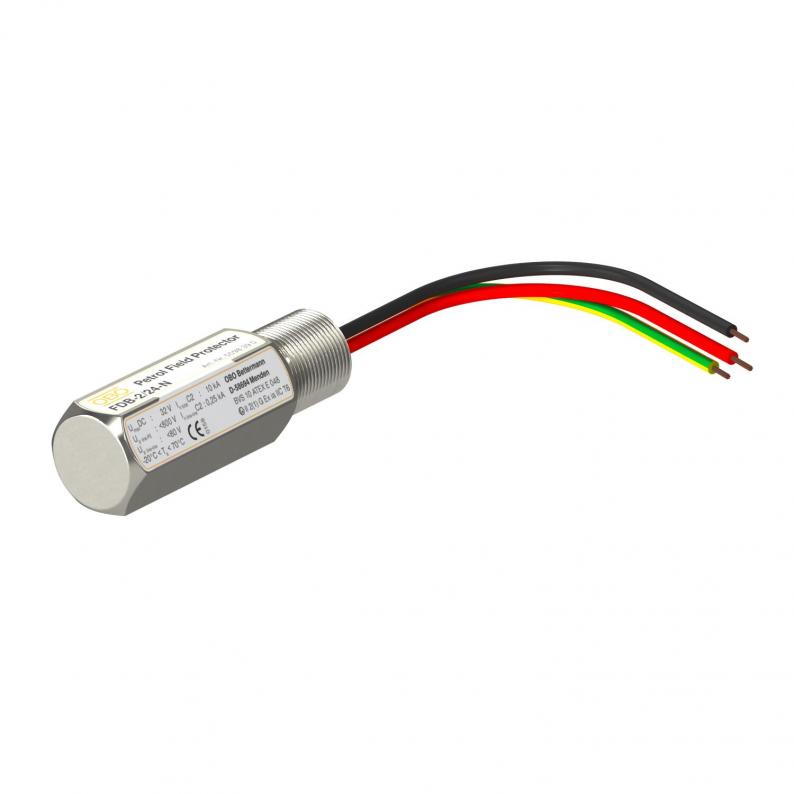

Protection for field devices, 2-pole, 24 V, NPT
Type FDB-2 24-N
|Item no. 5098390
|EAN 4012195683384
Item no. / Type
5098390 / FDB-2 24-N
Number of poles
2
Version for
2-pole; NPT
Smallest selling unit: 1 piece
1piece
piece
Description
Petrol Field Protector FDB for intrinsically safe measuring circuits and bus systems
• NPT connection technology
• Low protection level at high current load
• Easy mounting on field devices
• Negligible internal capacitance and inductance
• Stainless steel housing with pressure-resistant encapsulation
• ATEX approval: II 2(1) G Ex ia [ia Ga] IIC T4..T6 Gb (BVS 10 ATEX E 048)
Application: Flow sensors, temperature sensors
• NPT connection technology
• Low protection level at high current load
• Easy mounting on field devices
• Negligible internal capacitance and inductance
• Stainless steel housing with pressure-resistant encapsulation
• ATEX approval: II 2(1) G Ex ia [ia Ga] IIC T4..T6 Gb (BVS 10 ATEX E 048)
Application: Flow sensors, temperature sensors
Technical data
Technical data
| Number of poles | 2 |
|---|---|
| Telecommunications contact | no |
| Signalling on device | None |
| Protection level wire-wire | <80 V |
| Protection level wire-earth | <800 V |
| Protection rating | IP65/67 |
| Testing standard | IEC 61643-21 |
| Capacity (wire-wire) | < 17 pF |
| Capacity (wire-earth) | < 26 pF |
| Housing material surge protection components | V2A |
| Earthing via: | Connection cable |
| Mounting of field / device side: | Connection cable 1.5 mm² Length ~ 250 mm |
| Mounting of input / output | 1/2" NPT |
| Explosion-tested version | yes |
| Impulse durability wire-wire | C1: 0,5 kV / 0,25 kA (8/20µs) |
| Impulse durability wire-earth | C2: 5 kV / 2,5 kA (8/20µs) |
| Total discharge current (8/20) | 10 kA |
| EX approval | II 2(1)G Ex ia [ia Ga] IIC T4..T6 Gb (BVS 10 ATEX E 048) |
| Maximum continuous voltage AC | 22 V |
| Maximum continuous voltage DC | 32 V |
| Version for | 2-pole; NPT |
| SPD to IEC 61643-21 | Class II+III / C2+C1 |
| Kategorie | Type 2+3 / C2+C1 |
| Lightning protection zone LPZ | 1→3 |
| Permitted temperature range, min. | -20 °C |
| Permitted temperature range, max. | 70 °C |
| Dimension | 32V |
