LSA basic protection magazine

LSA basic protection magazine

Type LSA-B-MAG
|
Item no. 5084020
|
EAN 4012195525318
Show all variants
Item no. / Type
5084020 / LSA-B-MAG
Number of poles
20
Plug-in system
Other
Version for
Basic protection

Smallest selling unit: 1 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

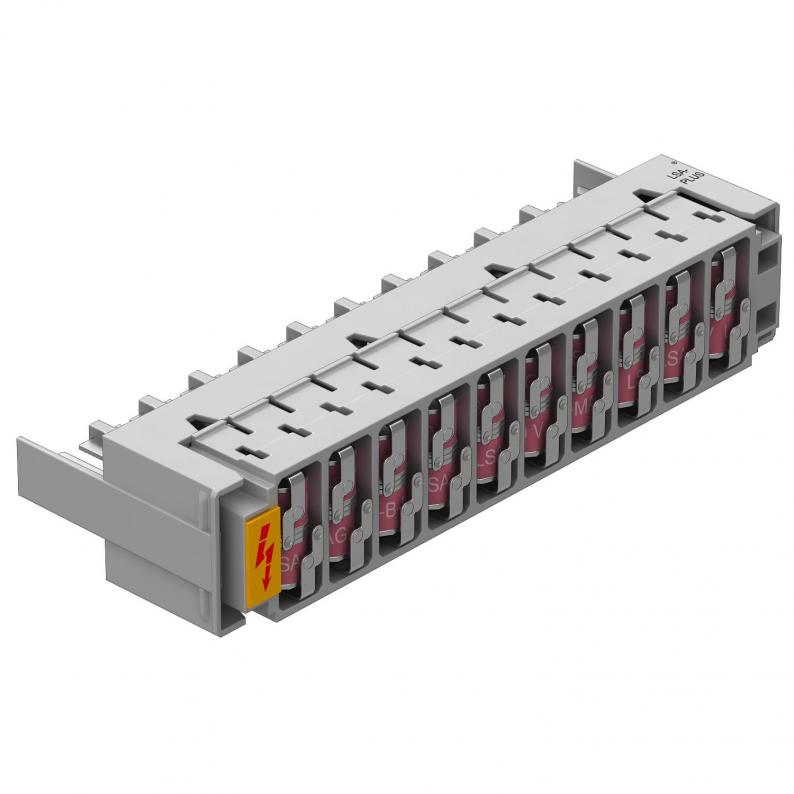

LSA basic protection magazine for use in multi-core data cable systems, MCR systems and telephone switchboards.



• Basic protection
• Equipped with 20 gas arresters
• Max. voltage: 180 V

Application: Directly on LSA-Plus separating strips or connection rails (e.g. OBO LSA-A-LEI (5084 00 8) or OBO LSA-T-LEI (5084 01 2).
Basic protection magazine to protect 10 two-cores.
  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Transition from LPZ 0 to LPZ 2
  • Integrated Service Digital Network, ISDN applications
  • Digital Subscriber Line, DSL applications
  • Analogue telecommunication
  • Measuring, controlling and regulating systems
  • Installation electrotechnical expertise
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

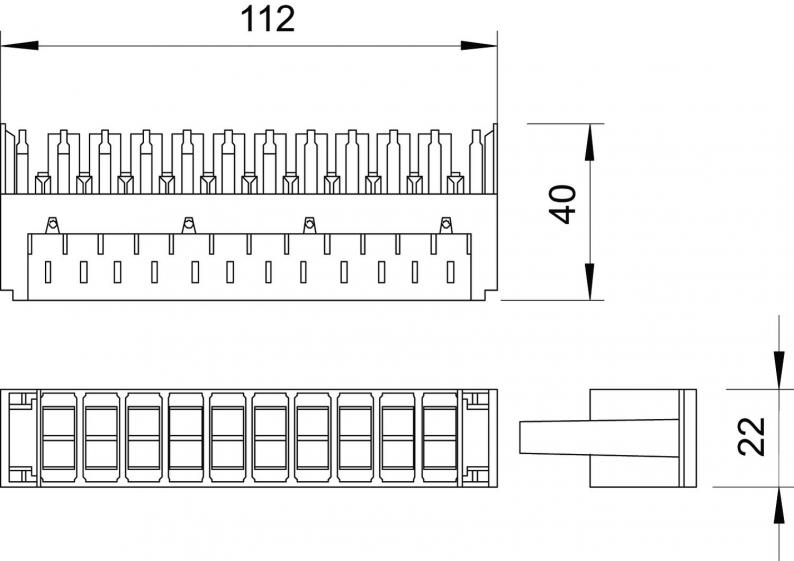

Technical data

Technical data

Number of poles20
Plug-in systemOther
Protection ratingIP20
Testing standardIEC 61643-21
Protection level @ C1<750 V
Capacity (wire-wire)< 10 pF
Capacity (wire-earth)< 10 pF
Insulation resistance> 1 GΩ
Impulse durability wire-wireC2: 10 kV / 5 kA (8/20µs)
Impulse durability wire-earthC2: 10 kV / 5 kA (8/20µs)
Total discharge current (10/350)1 kA
Total discharge current (8/20)10 kA
Nominal load current DC1 A
Nominal load current AC0,7 A
Maximum continuous voltage AC120 V
Maximum continuous voltage DC180 V
Version forBasic protection
SPD to IEC 61643-21Class I+II / D1+C2
KategorieType 1+2 / D1+C2
Lightning protection zone LPZ0→2
Lightning impulse current0,5 kA
Permitted temperature range, min.-40 °C
Permitted temperature range, max.80 °C
Dimension180V
CO2 Footprint (GWP) Cradle-to-Gate0,0845 kg CO2e / 1 Piece
