Ion Charging station Basic

Ion Charging station Basic

Type WB AC BL
|
Item no. 6570020
|
EAN 4012197274160
Show all variants
Item no. / Type
Max. Output per charging point

Smallest selling unit: 1 piece

piece

Description

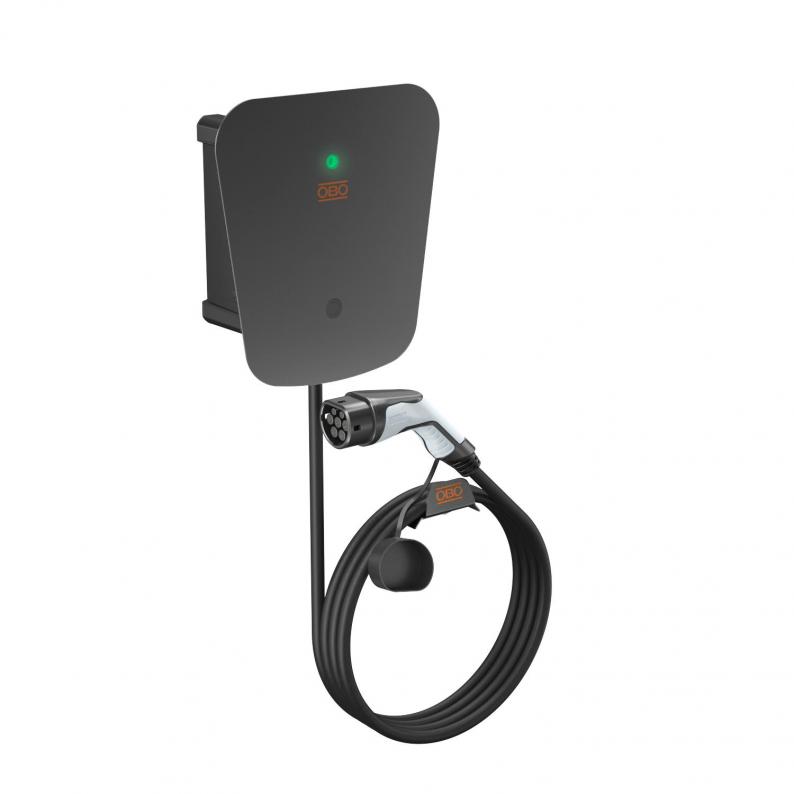

The Ion charging station for the charging of electrical vehicles in private areas as a singular charging point. Suitable for permanent mounting on the wall in interior or protected exterior areas.


• Charging according to Mode 3 in accordance with IEC 61851-1
• Single, double and three-phase charging
• Suitable for TN and TT networks
• Integrated temperature monitoring
• DC error current monitoring
• Status information via LED display
• Prewired, ready for connection
• Including 5 m charging cable with type 2 charging connector and cable bracket
• Supply from above or below
• Stainless steel design elements
• Charging power can be limited to a fixed value, factory-set value 11 kW
• Modbus RTU protocol via RS-485 interface for bidirectional communication
• Can be controlled via Modbus RTU for dynamic load management, dynamic PV-optimised charging and digital authentication (via web/app) with external control (ASKI, Smart1Solutions, Loxone, Comexio)
• Potential-free enable contact, e.g. for PV systems, ripple control receiver




  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 66
  • IK Code 08
  • Earthing
  • CO₂ footprint (PCF)

Technical data

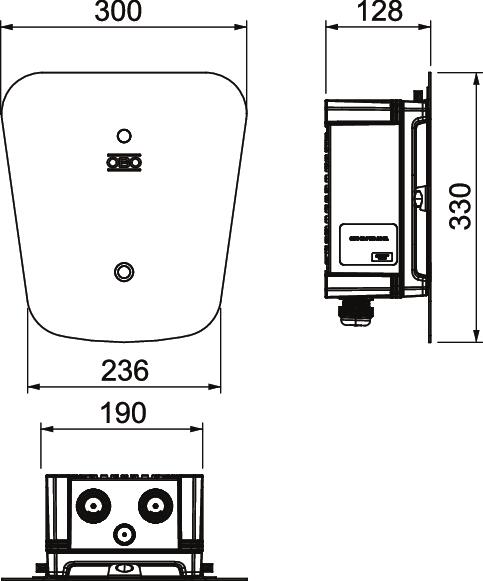

Dimensions

Width300 mm
Height330 mm

Technical data

Protection ratingIP66
Surge protectionno
Depth127 mm
Protection rating IK codeIK08
Number of SCHUKO sockets0
ROHS-conformantExempt
Dimension330x300x127
SurfacePainted
MaterialPolycarbonate
ColourBlack
Version for3-phase
Number of charging points1
Max. Output per charging point22 kW
Nominal connection output22 kW
Number of type 1 charging connectors0
Number of type 1 CCS charging connectors0
Number of type 2 charging connectors1
Number of type 2 CCS charging connectors0
Number of type 2 charging sockets0
Number of GB AC charging connectors0
Number of GB DC charging connectors0
Number of GB charging sockets0
Number of type 3 charging sockets0
Number of CHAdeMO charging connectors0
Number of CEE sockets0
With domestic junction box (HAK)no
Number of type A Fi switches0
Number of type B Fi switches0
With circuit breakerno
With communication interfaceyes
With energy meterno
With load managementno
IFTTT supportno

Environmental Data

15,4409 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate15,4409 kg CO2e / 1 Piece
CO₂ Footprint (GWP)15,4409 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared Unit (LCA)Units
Declared Unit Quantity (LCA)1

Accessories

System accessories
Type
WB WPR

Smallest selling unit: 1 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Instructions and Aid (2)
Product images (2)
Tender specifications (1)

Variants

WB AC BL
Item no.
6570020
Version for
3-phase
Max. Output per charging point
22
Number of type 2 charging connectors
1
WB AC BL KS
Item no.
6570022
Version for
3-phase
Max. Output per charging point
22
Number of type 2 charging connectors
1
