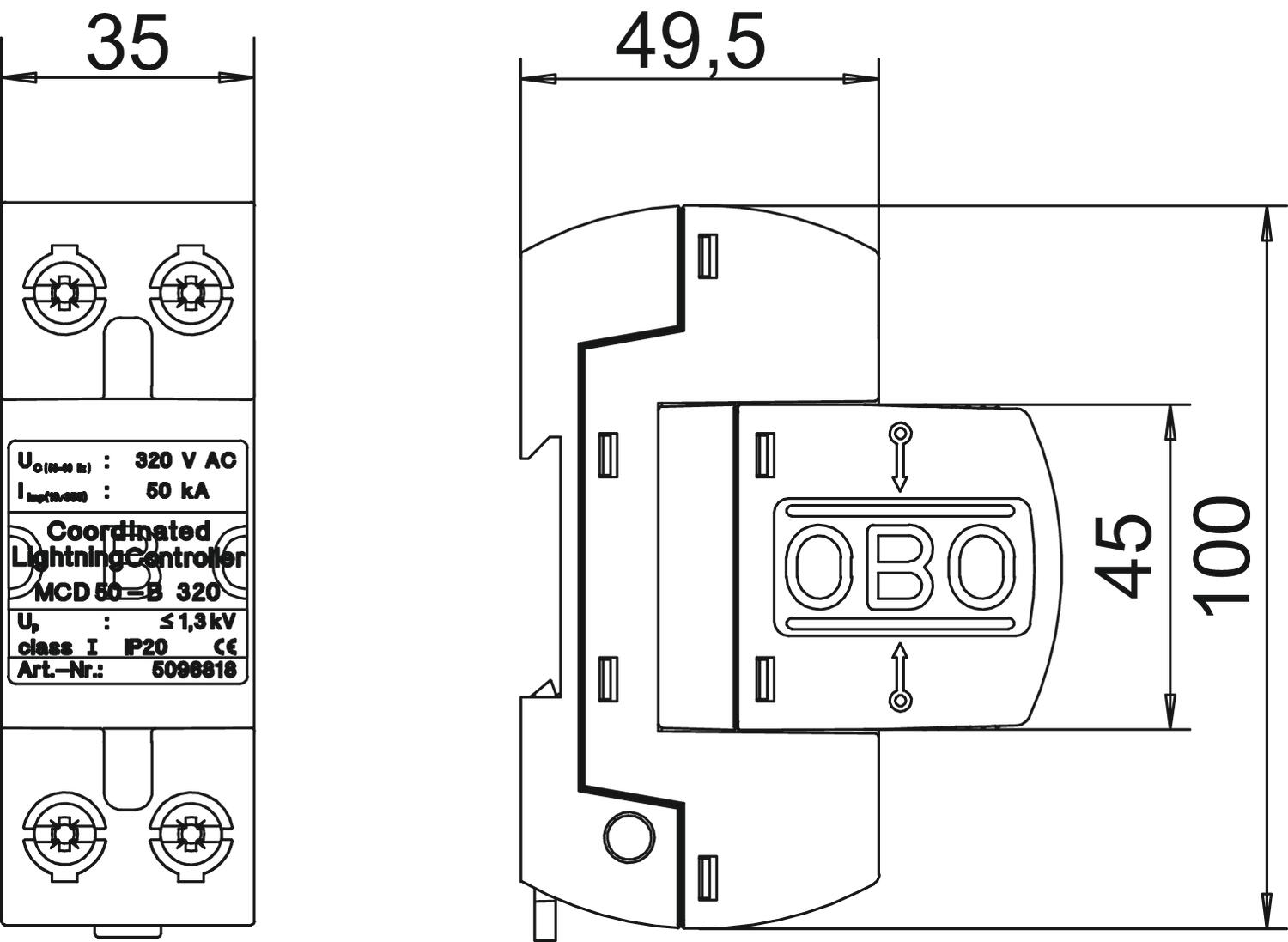

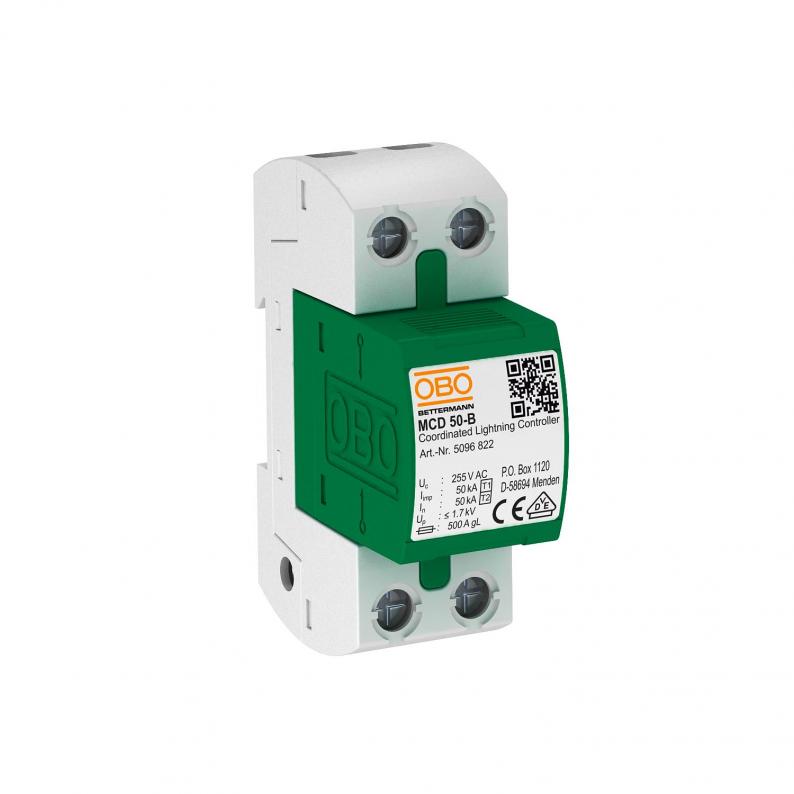

Coordinated LightningController - MCD50-B
Type MCD 50-B-320
|Item no. 5096860
|EAN 4012195068563
Item no. / Type
5096860 / MCD 50-B-320
Protection rating
IP20
Maximum continuous voltage AC
320 V
Pole version
1
Smallest selling unit: 1 piece
1piece
piece
Description
Coordinated lightning arrester, type 1 DIN EN 61643-11. For interface 0 to 2 (LPZ) in accordance with lightning protection zone concept to IEC 61312-1 and/or DIN VDE 0185-305 Part 4.
Lightning arrester type 1 for use in TN and TT networks.
• Arresting capacity 50 kA (10/350 µs) per pole
• Voltage protection level < 1.3 kV
• Line follow current quenching 10 kA Ipeak
• lncl. plug caps for labelling the connections
• Encapsulated, non-extinguishing spark gap: can be used in standard distributor housings.
Application example: Compact surge protection concepts and installations in a distributor.
Lightning arrester type 1 for use in TN and TT networks.
• Arresting capacity 50 kA (10/350 µs) per pole
• Voltage protection level < 1.3 kV
• Line follow current quenching 10 kA Ipeak
• lncl. plug caps for labelling the connections
• Encapsulated, non-extinguishing spark gap: can be used in standard distributor housings.
Application example: Compact surge protection concepts and installations in a distributor.
Technical data
Technical data
| Blow-out | no |
|---|---|
| Protection rating | IP20 |
| Lightning surge current (10/350) | 50 kA |
| Test class, type 1 | yes |
| Remote signalling | no |
| Nominal voltage AC (50/60 Hz) | 230 V |
| Lightning surge current (10/350 μs) | 50 kA |
| Maximum continuous voltage AC | 320 V |
| Nominal discharge current (8/20 µs) | 50 kA |
| Pole version | 1 |
| Installation type | DIN rail 35 mm |
| Max. mains-side overcurrent protection | 500 |
| Operating temperature, min. | -40 °C |
| Operating temperature, max. | 85 °C |
| SPD to IEC 61643-1 | Class I |
| SPD to EN 61643-11 | Type 1 |
| Lightning protection zone LPZ | 0→2 |
| Response time | <100 ns |
| Maximum back-up fuse | 500 A |
| Permitted temperature range, min. | -40 °C |
| Permitted temperature range, max. | 85 °C |
| Dimension | 320V |
Connectivity options
| Arrester surge current (8/20 µs) [total] | 50 kA |
|---|---|
| Conductor cross-section, rigid (single-wire/multiwire), min. | 10 mm² |
| Conductor cross-section, rigid (single-wire/multiwire), max. | 50 mm² |
Environmental Data
2,0623 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 2,0623 kg CO2e / 1 Piece |
|---|
