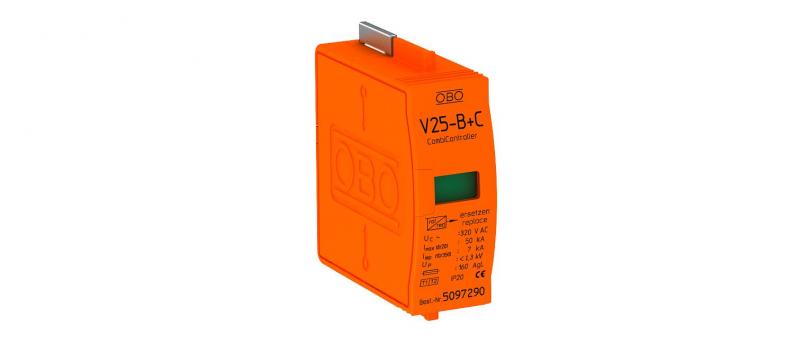

CombiController V25, plug-in arrester 320 V

Type V25-B+C 0-320

Item no. 5097290

EAN 4012195711551

Data sheet (PDF)

Show all variants

Item no. / Type

5097290 / V25-B+C 0-320

Protection rating

IP20

Pole version

Smallest selling unit: 1 piece

piece

Description Technical data Downloads Variants

Description

Combination arrester – type 1+2

• Plug-in arrester can be separated from base without tools and current cut-off in base

• Including thermal and dynamic cut-off unit and visual fault display

• High current conductivity and long service life

Technical data

Pole number	1
Network form	Other
Blow-out	no
Signalling on device	Visual
Protection rating	IP20
Lightning surge current (10/350)	7 kA
Remote signalling	no
Nominal voltage AC (50/60 Hz)	320 V
Lightning surge current (10/350 μs)	7 kA
Maximum continuous voltage AC	320 V
Maximum continuous voltage DC	420 V
Nominal discharge current (8/20 µs)	30 kA
Pole version	1
Installation type	On basic element
Max. mains-side overcurrent protection	160
Version for	1-pole
Operating temperature, min.	-40 °C
Operating temperature, max.	80 °C
SPD to IEC 61643-1	Class I+II
SPD to EN 61643-11	Type 1+2
Lightning protection zone LPZ	0→2
Maximum discharge current (8/20 μs)	50 kA
Response time	<25 ns
Maximum back-up fuse	160 A
Permitted temperature range, min.	-40 °C
Permitted temperature range, max.	80 °C

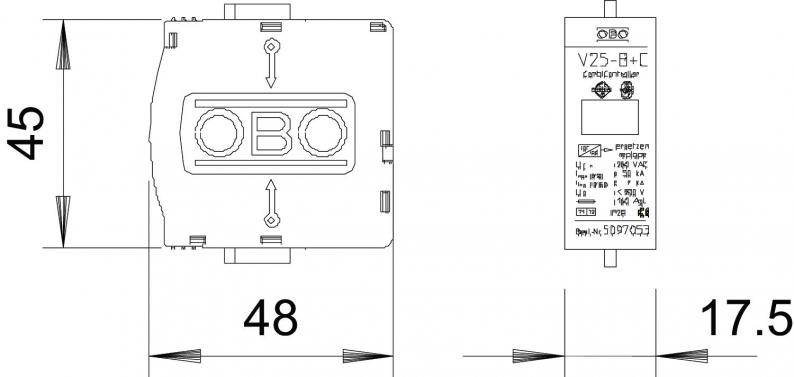

Dimension	320V
CO2 Footprint (GWP) Cradle-to-Gate	0,1465 kg CO2e / 1 Piece

Connectivity options

Arrester surge current (8/20 µs) [total]	30 kA
Conductor cross-section, rigid (single-wire/multiwire), min.	2,5 mm²
