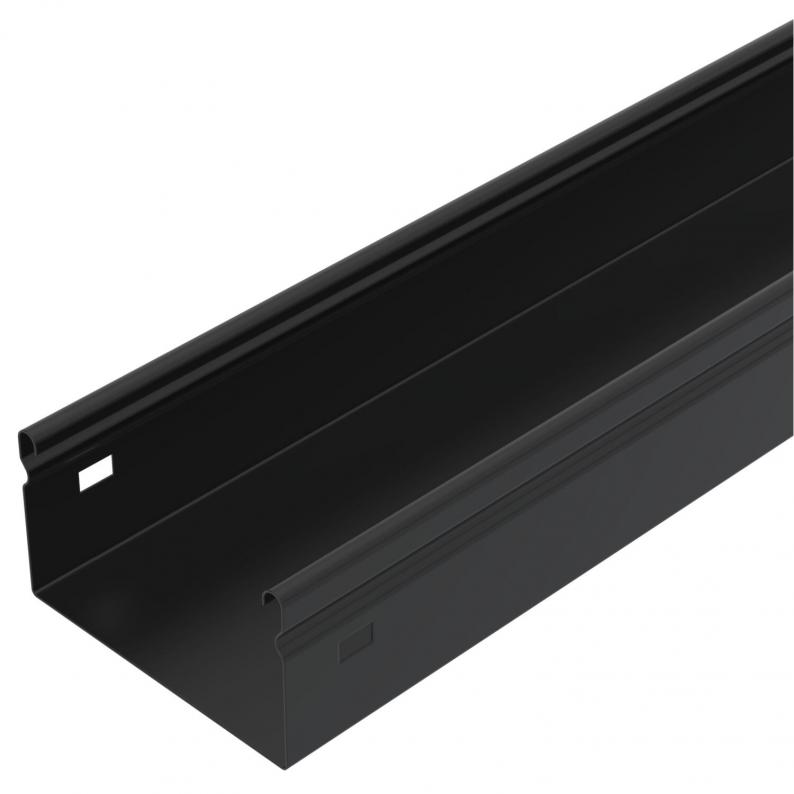

Cable tray GKS FL 60 FSKSW

Cable tray GKS FL 60 FSKSW

Type GKS FL 610 FSKSW
|
Item no. 6487789
|
EAN 4012197466435
Show all variants
Item no. / Type
Length
Width
Plate thickness
Maintain electrical functions
no
Surface
PES50 - Polyester/epoxy
Material
Steel

Smallest selling unit: 3 m

m

DescriptionTechnical dataDownloadsVariants

Description

GKS 60 FL = unperforated cable tray system with 60 mm side height.

Technical data

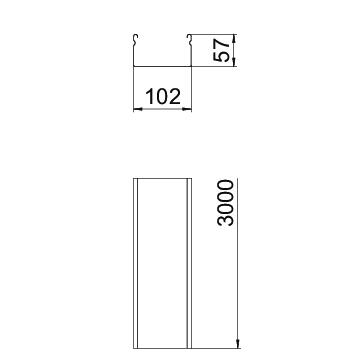

Dimensions

Length3000 mm
Width100 mm
Height57 mm
Dimension W102 mm

Technical data

Maintain electrical functionsno
Side perforationno
Connector versionWithout connectors
Wide-span versionno
Usable cross-section58 cm²
Rustproof steel, pickledno
Plate thickness0,6 mm
Mounting perforation in baseno
NATO hole patternno
Usable cross-section5800 mm²
Dimension60x100
Dimension60x100x3000
SurfacePES50 - Polyester/epoxy
MaterialSteel
ColourJet black; RAL 9005

Loads

Support spacing 2.0 m1 kN/m
Support spacing 2.5 m0,5 kN/m
Support spacing 1.5 m1,5 kN/m
Load diagram, cable tray, type GKS FL60

Permitted cable tray/ladder load in kN/m without man load

Support width in m

Rail bend in mm at permitted kN/m

Load scheme during testing

Load curve with cable tray/ladder width in mm

Strut bend curve according to support width

Downloads

0 selected

Data sheet (1)
Product images (2)
Tender specifications (2)

Variants

Width
Plate thickness
GKS FL 650 FSKSW
Item no.
6487797
Length
3000
Width
500
Maintain electrical functions
no
Plate thickness
1,2
Surface
PES50 - Polyester/epoxy
Material
Steel
GKS FL 640 FSKSW
Item no.
6487795
Length
3000
Width
400
Maintain electrical functions
no
Plate thickness
1,2
Surface
PES50 - Polyester/epoxy
Material
Steel
GKS FL 630 FSKSW
Item no.
6487792
Length
3000
Width
300
Maintain electrical functions
no
Plate thickness
1
Surface
PES50 - Polyester/epoxy
Material
Steel
GKS FL 620 FSKSW
Item no.
6487791
Length
3000
Width
200
Maintain electrical functions
no
Plate thickness
0,7
Surface
PES50 - Polyester/epoxy
Material
Steel
GKS FL 615 FSKSW
Item no.
6487790
Length
3000
Width
150
Maintain electrical functions
no
Plate thickness
0,7
Surface
PES50 - Polyester/epoxy
Material
Steel
GKS FL 610 FSKSW
Item no.
6487789
Length
3000
Width
100
Maintain electrical functions
no
Plate thickness
0,6
Surface
PES50 - Polyester/epoxy
Material
Steel
