Wall and support bracket AWG 15 A2

Wall and support bracket AWG 15 A2

Type AWG 15 11 A2
|
Item no. 6420625
|
EAN 4012195058373
Show all variants
Item no. / Type
Width
F in kN
Colour
stainless steel

Smallest selling unit: 1 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

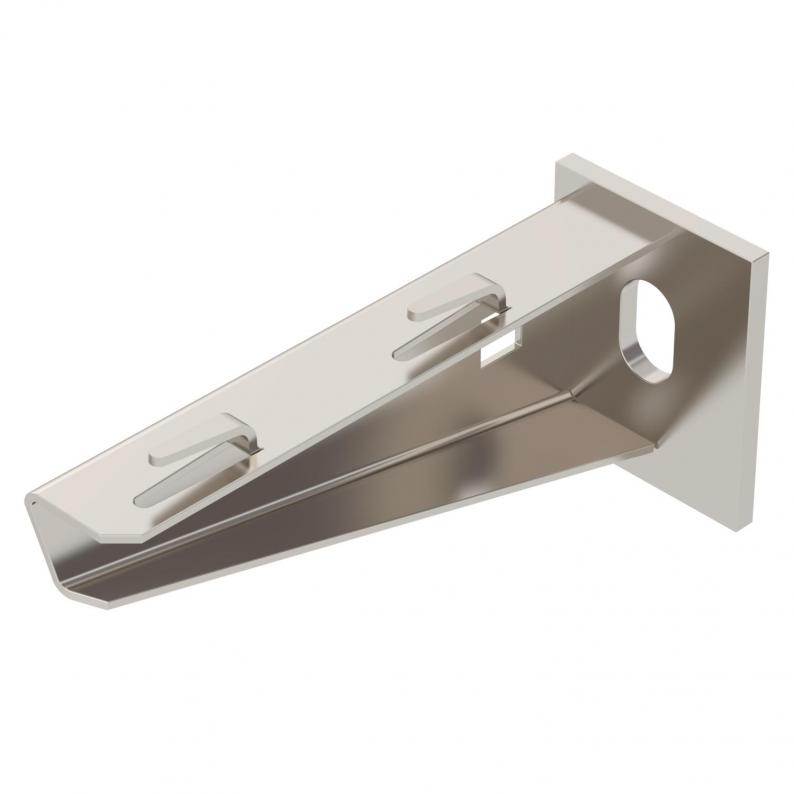

Light-duty wall and support bracket with welded head plate for screwless mesh cable tray fastening.



Fastening of the bracket to the U support of width 400 mm or greater using a hexagonal bolt through both sides of the support. Please insert suitable spacers.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Wall and support brackets
  • U support
  • U support
  • U support
  • Easy mounting component
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length40 mm
Width110 mm
Height50 mm
Dimension A40 mm
Dimension B110 mm
Dimension H50 mm

Technical data

Maintain electrical functionsno
Rustproof steel, pickledyes
for width min.100
for width max.100 mm
Angle range, min.90 mm
Angle range, max.90 mm
Hole diameter11 mm
Version forWall and support bracket
F in kN1,5 kN
DimensionB110mm
SurfaceBright, treated
MaterialStainless steel 1.4301
Colourstainless steel
CO2 Footprint (GWP) Cradle-to-Gate0,7478 kg CO2e / 1 Piece

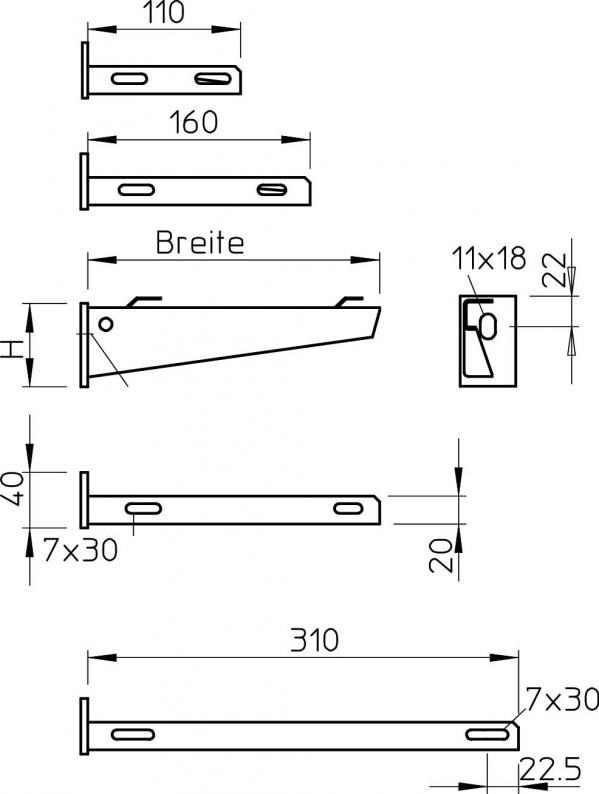

Load diagram, bracket type AW G 15

Bending of the bracket tip at permitted bracket load

Permitted bracket load in kN without man load

Bracket length in mm
