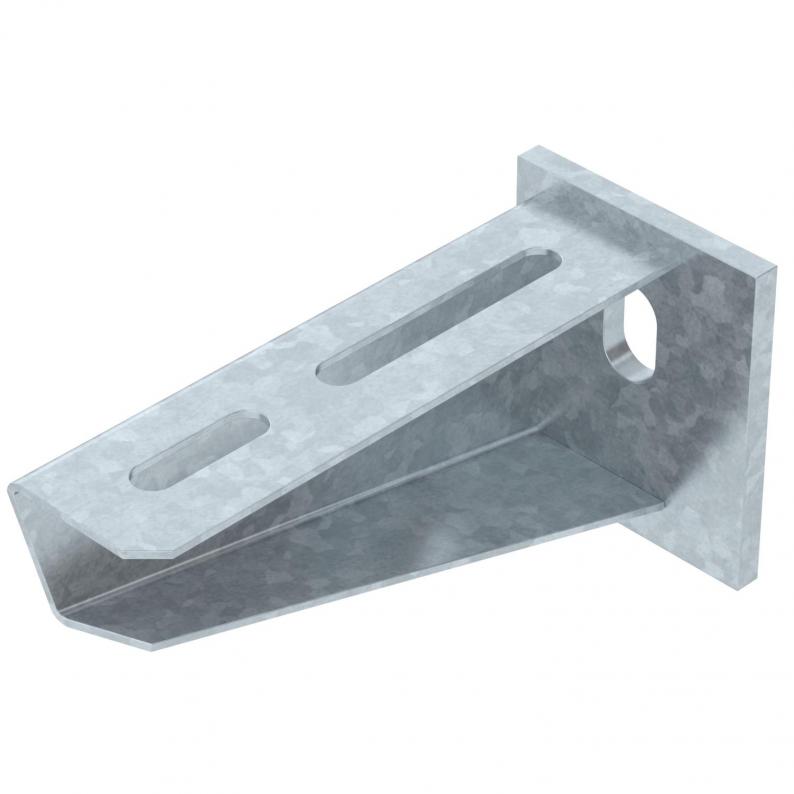

Wall and support bracket AW 30 FT

Wall and support bracket AW 30 FT

Type AW 30 11 FT
|
Item no. 6419704
|
EAN 4012196206599
Show all variants
Item no. / Type
6419704 / AW 30 11 FT
Width
110 mm
F in kN
3 kN
Colour
zinc

Smallest selling unit: 1 piece

piece

Description

Medium-duty wall and support bracket with welded head plate.

Fastening of the bracket to the U support of width 400 mm or greater using a hexagonal bolt through both sides of the support. Please insert suitable spacers.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

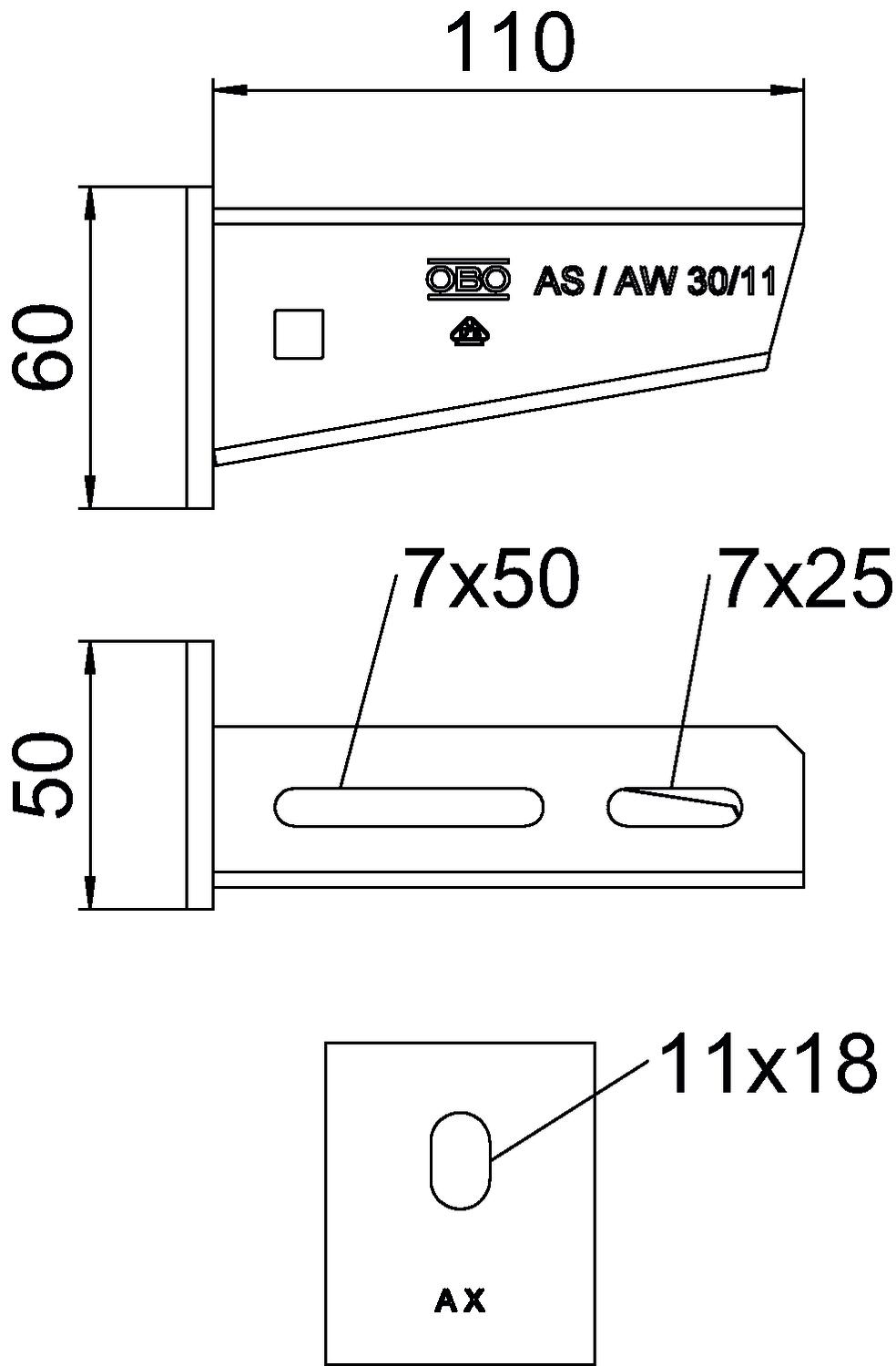

Dimensions

Length50 mm
Width110 mm
Height60 mm
Dimension A50 mm
Dimension B110 mm
Dimension H60 mm

Technical data

Maintain electrical functionsyes
Rustproof steel, pickledno
Angle range, min.90 mm
Angle range, max.90 mm
Hole diameter11 mm
EPD articleyes
Version forWall and support bracket
F in kN3 kN
DimensionB110mm
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Load diagram, bracket, type AW 30

Bending of the bracket tip at permitted bracket load

Permitted bracket load in kN without man load

Load curve with bracket lengths in mm

Environmental Data

0,5485 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
EPD-verifiedyes
Expiry date EPD10.07.2029
Declaration number EPD EPD-KTO-17.0
Unit base EPD1 running metre + mounting system
EPD GWP (outside of the system limits)18.83 kg CO₂e
EPD GWP (disposal phase)1.97 kg CO₂e
EPD GWP (manufacturing phase)81.32 kg CO₂e
EPD standard / LCA standard (norms)DIN EN ISO 14025,EN 15804 + A2
CO2 Footprint (GWP) Cradle-to-Gate0,5485 kg CO2e / 1 Piece
