VS 75 FS cross-over
Type LK 720 VS FS
|Item no. 6487552
|EAN 4012196513994
Item no. / Type
Width
Rail thickness
Smallest selling unit: 1 piece
1piece
piece
Description

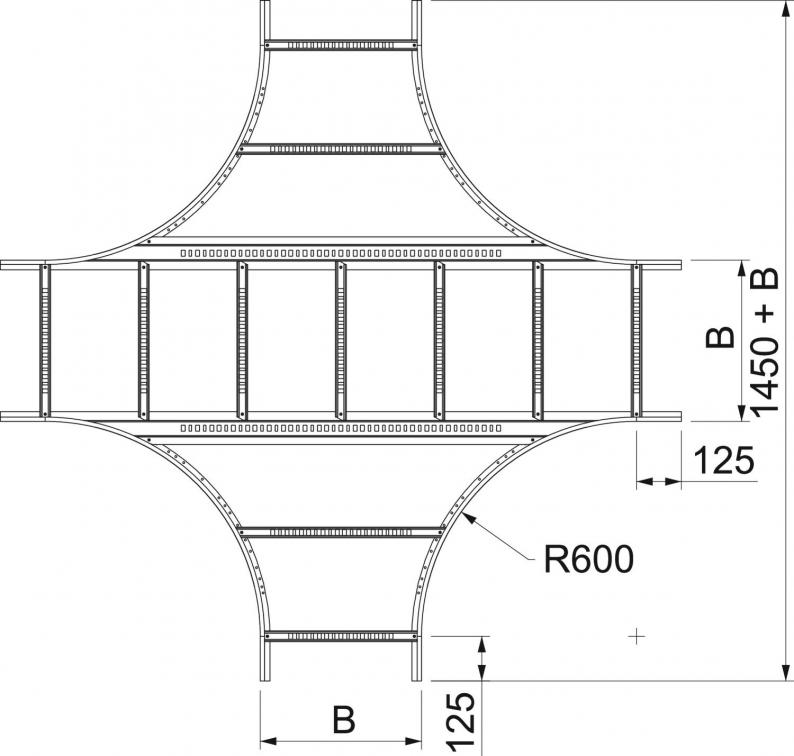

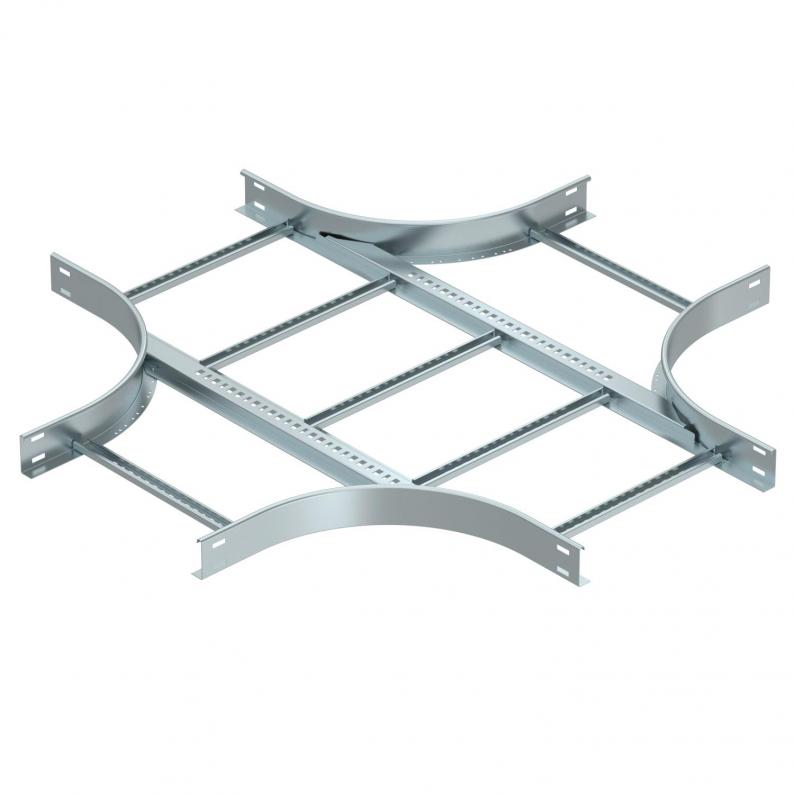

Horizontal cross-over, with intelligent VS rung, for all cable ladder types of 75 mm side height.
Connectors should be ordered separately and in the appropriate quantity.
Technical data
Dimensions
| Width | 200 mm |
|---|---|
| Height | 75 mm |
Technical data
| Rail thickness | 1,5 mm |
|---|---|
| Dimension | 75x200 R300 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (5)
Declarations (2)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Variants
Type
Width
Rail thickness
Item no.
LK 720 VS FS
200
1,5
6487552
LK 730 VS FS
300
1,5
6487554
LK 745 VS FS
450
1,5
6487557
LK 760 VS FS
600
1,5
6487558
LK 775 VS FS
750
1,5
6487560
LK 7100 VS FS
1000
1,5
6487565
Width
LK 720 VS FS
Item no.
6487552
Width
200
Rail thickness
1,5
LK 730 VS FS
Item no.
6487554
Width
300
Rail thickness
1,5
LK 745 VS FS
Item no.
6487557
Width
450
Rail thickness
1,5
LK 760 VS FS
Item no.
6487558
Width
600
Rail thickness
1,5
LK 775 VS FS
Item no.
6487560
Width
750
Rail thickness
1,5
LK 7100 VS FS
Item no.
6487565
Width
1000
Rail thickness
1,5
