VS 100 FS cross-over
Type LK 1020 VS FS
|Item no. 6487602
|EAN 4012196514175
Item no. / Type
Width
Rail thickness
Smallest selling unit: 1 piece
1piece
piece
Description

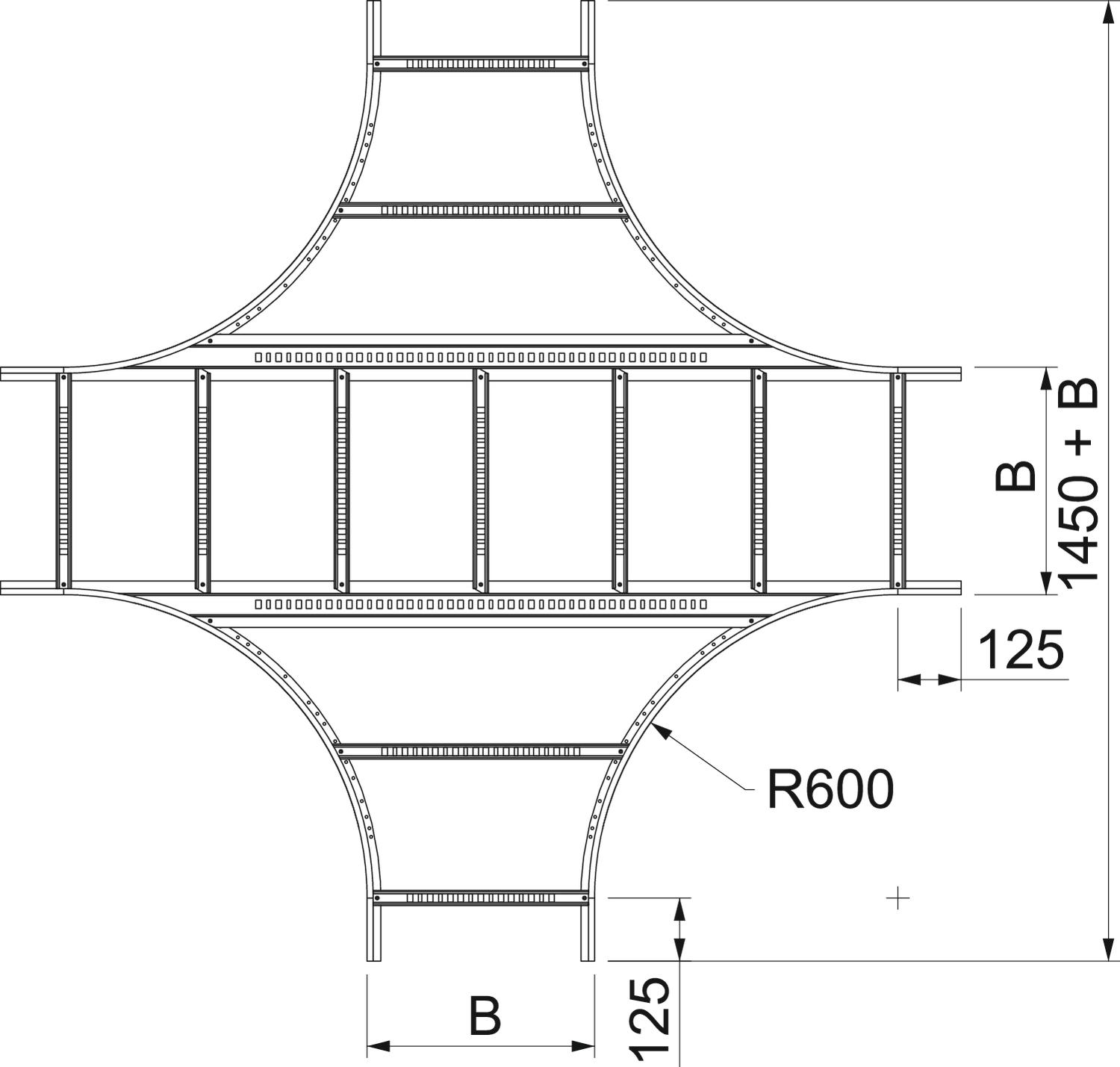

Horizontal cross-over, with intelligent VS rung, for all cable ladder types of 100 mm side height.
Connectors should be ordered separately and in the appropriate quantity.
Technical data
Dimensions
| Width | 200 mm |
|---|---|
| Height | 100 mm |
Technical data
| Rail thickness | 1,5 mm |
|---|---|
| Dimension | 100x200 R600 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (5)
Declarations (2)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Variants
Type
Width
Rail thickness
Item no.
LK 1020 VS FS
200
1,5
6487602
LK 1030 VS FS
300
1,5
6487604
LK 1045 VS FS
450
1,5
6487606
LK 1060 VS FS
600
1,5
6487608
LK 1075 VS FS
750
1,5
6487610
LK 1090 VS FS
900
1,5
6487612
LK 10100 VS FS
1000
1,5
6487614
Width
LK 1020 VS FS
Item no.
6487602
Width
200
Rail thickness
1,5
LK 1030 VS FS
Item no.
6487604
Width
300
Rail thickness
1,5
LK 1045 VS FS
Item no.
6487606
Width
450
Rail thickness
1,5
LK 1060 VS FS
Item no.
6487608
Width
600
Rail thickness
1,5
LK 1075 VS FS
Item no.
6487610
Width
750
Rail thickness
1,5
LK 1090 VS FS
Item no.
6487612
Width
900
Rail thickness
1,5
LK 10100 VS FS
Item no.
6487614
Width
1000
Rail thickness
1,5
