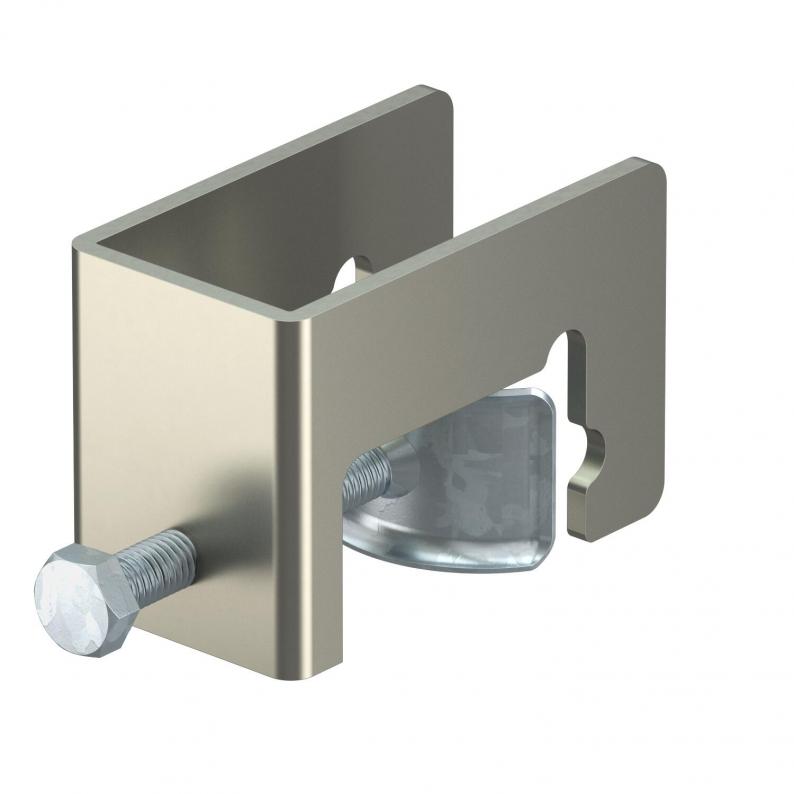

VARIO earthing terminal for reinforced steels
Type 1814 ST D40
|Item no. 5450258
|EAN 4012197422691
Item no. / Type
5450258 / 1814 ST D40
Smallest selling unit: 40 piece
40piece
piece
Description

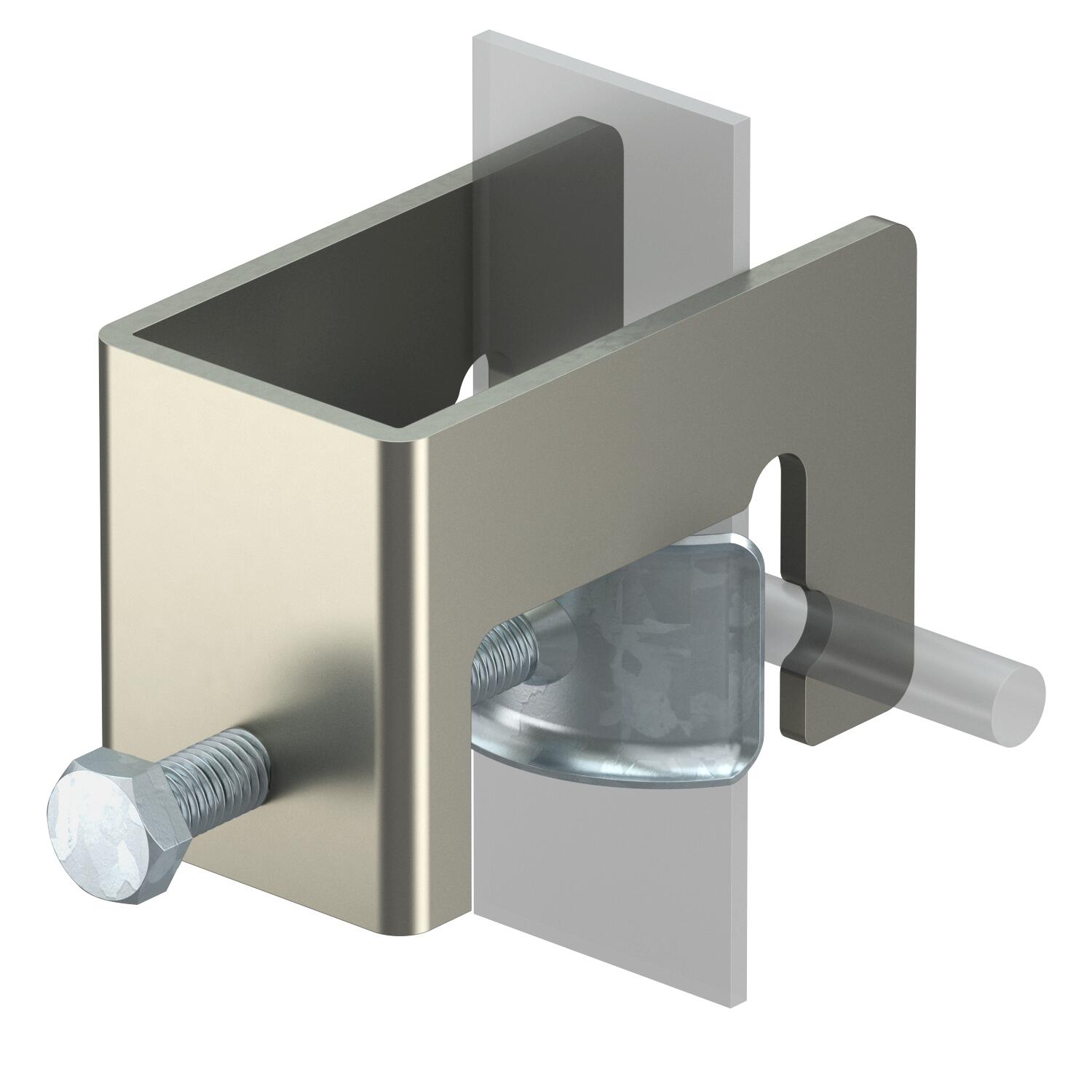

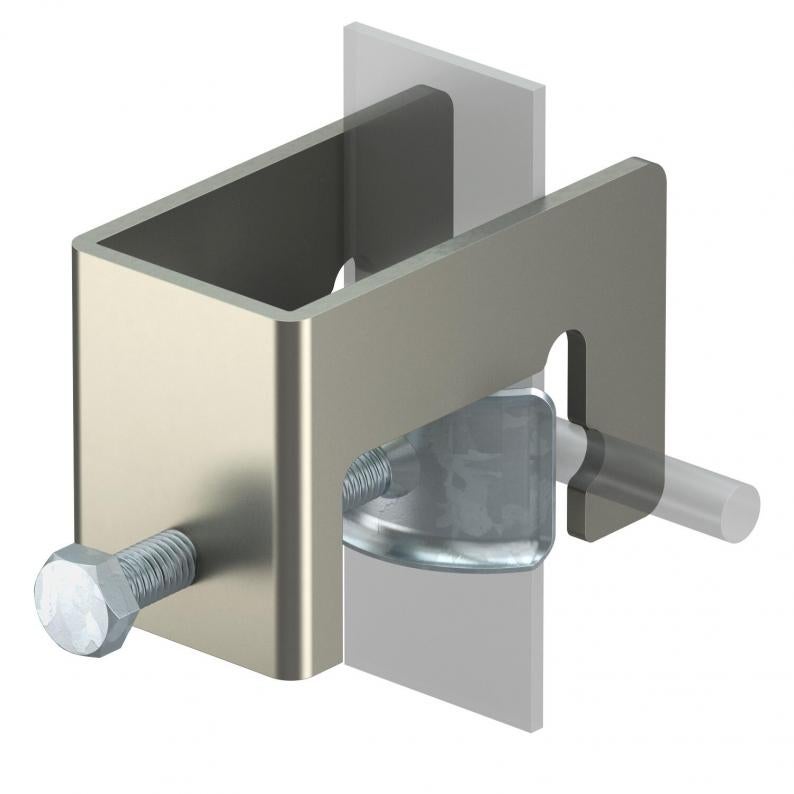

• For rebar 16-40 mm diameter, round conductors and flat conductors
• Rapid installation using open slot and only one M10 screw
• Rotatable metal pressure trough for simple, safe mounting
• Complies to the requirement of IEC 62561-1
• Lightning current carrying capacity: Class H / 100 kA
• Tightening torque: 15 Nm
• Rapid installation using open slot and only one M10 screw
• Rotatable metal pressure trough for simple, safe mounting
• Complies to the requirement of IEC 62561-1
• Lightning current carrying capacity: Class H / 100 kA
• Tightening torque: 15 Nm
Technical data
Technical data
| Type of fastening screw | Hexagonal bolt |
|---|---|
| Type of connector | Connectors |
| Suitable for connection | Miscellaneous |
| Lightning current carrying capacity | N/50 kA |
| Fit | FL30x5 x Rd8-14 mm |
| Material | Steel |
Downloads
0 selected
Instructions and Aid (1)
Product images (3)
Tender specifications (2)
Variants
Type
Fit
Item no.
1814 ST D40
FL30x5 x Rd8-14
5450258
1814 ST D40
Item no.
5450258
Fit
FL30x5 x Rd8-14
