UZD350-4 R junction and branch box
Type UZD350-4 R
|Item no. 7410025
|EAN 4012197375386
Item no. / Type
Screed height, min.
Screed height, max.
Nominal size
Cover version
Universal
Installation opening for flush-mount unit
Square
Smallest selling unit: 1 piece
1piece
piece
Description

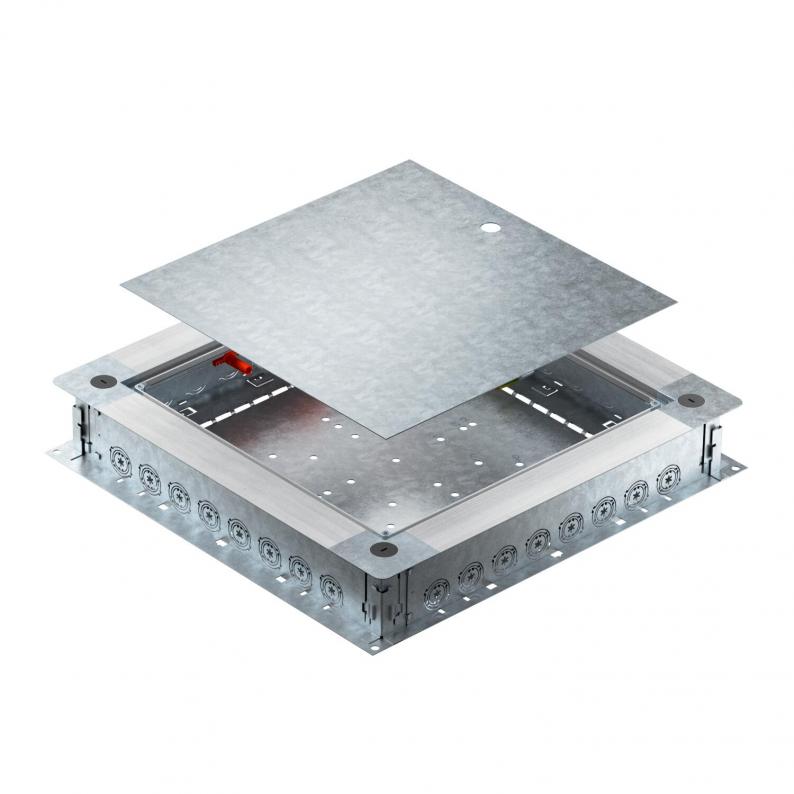

Junction and branch box UZD350-4 R with side walls made of sheet steel. For mounting of installation units in the mounting lid (to be ordered separately). Can be infinitely adjusted to a nominal screed height of 80–160 mm using the quick height-adjustment unit. The screed can be worked up to be flush with the screed edge. With an acoustic decoupling option after screed laying, and with system accessories, it can be used for heavy-duty applications. Insertion of cables through the pipe entries. Pipe entry per side suitable for 8 installation pipes each of the diameters M20, M25 and M32
Technical data

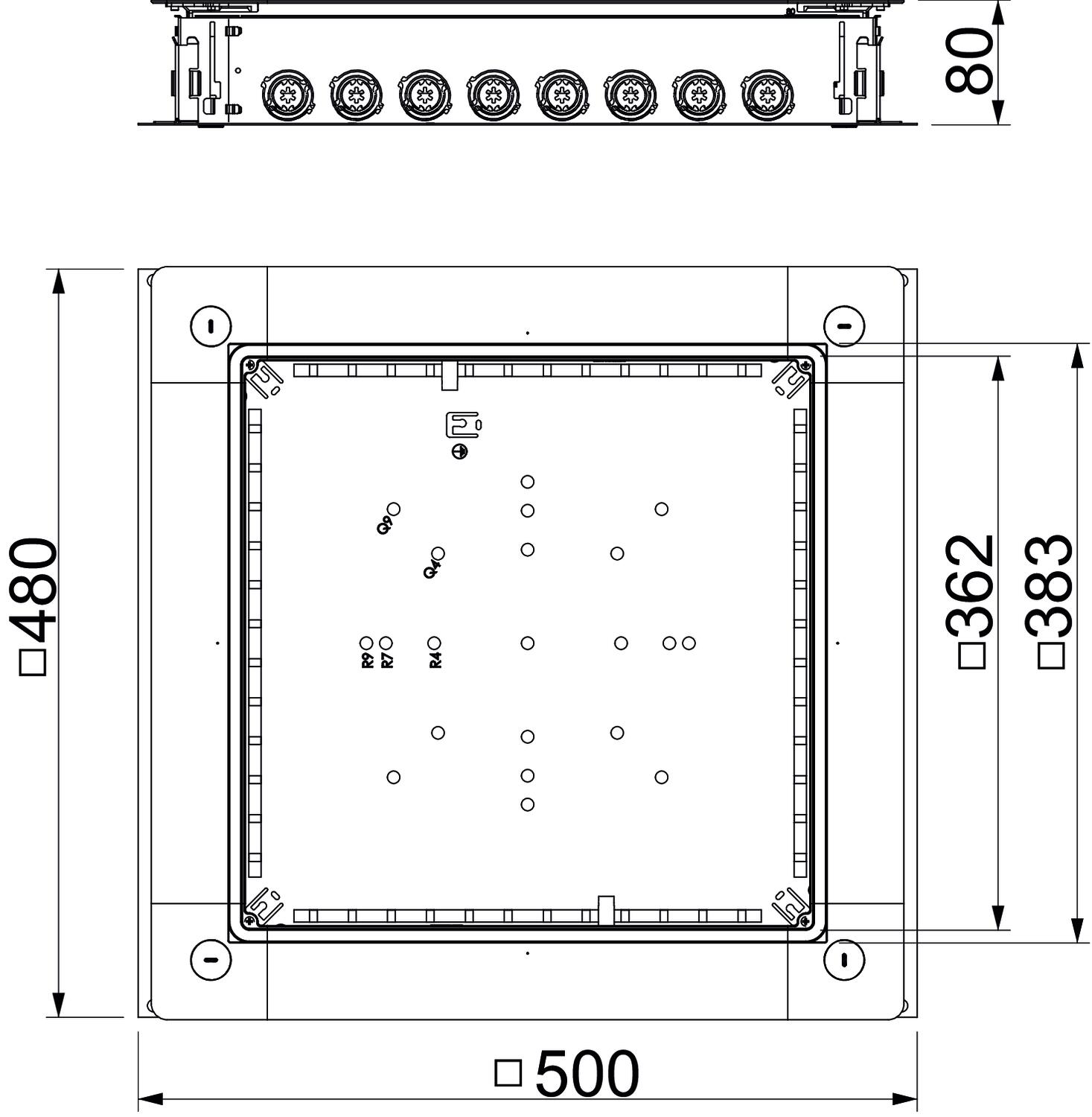

Dimensions
| Length | 480 mm |
|---|---|
| Width | 500 mm |
| Height | 80 mm |
| Dimension A | 480 mm |
| Dimension B | 500 mm |
| Dimension b | 383 mm |
| Dimension a | 362 mm |
Materials and Packaging
| Packaging made completely from recycled cardboard. | yes |
|---|
Technical data
| Screed height, min. | 80 mm |
|---|---|
| Screed height, max. | 160 mm |
| Cover version | Universal |
| Height-adjustment range, min. | 80 mm |
| Height-adjustment range, max. | 160 mm |
| Minimum screed height | 80 |
| Suitable for screed-covered underfloor ducts | no |
| Suitable for screed-flush closed underfloor ducts | no |
| Installation opening for on-floor tank | no |
| Number of installable devices | 1 |
| Seal installation option | yes |
| Decouplable | yes |
| Floor plate | yes |
| Suitable for underfloor ducts | no |
| Installation opening for flush-mount unit | Square |
| For pipe connection | yes |
| Nominal size | 350 mm |
| Protection rating (IP) when used | IP20 |
| Dimension | 500x480x80 |
| Surface | Strip galvanized |
| Material | Steel |
CO2 footprint (Product Carbon Footprint)
| CO2 Footprint (GWP) Cradle-to-Gate | 29,833 kg CO2e / 1 Piece |
|---|
