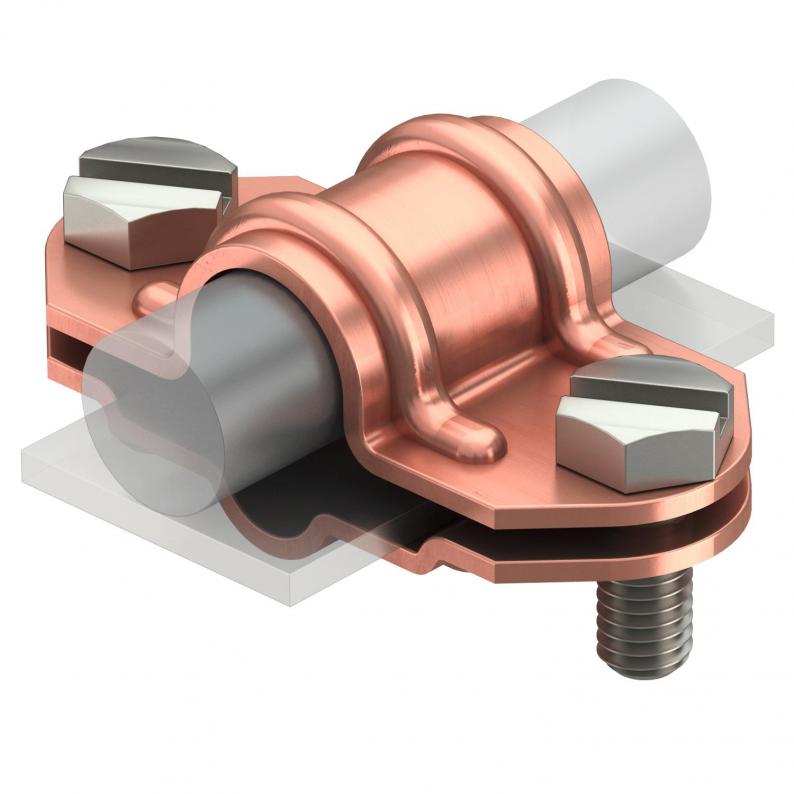

Universal separating piece Cu
Type 226 50
|Item no. 5450490
|EAN 4012196881222
Item no. / Type
Fit
Smallest selling unit: 25 piece
25piece
piece
Description
• For fitting round conductors Rd 8−10 to Rd 16 or flat conductors FL30
• Including 2 hexagonal bolts M8 x 20 high-grade stainless steel (V2A)
• Conforms to the requirements according to VDE 0185-305 (IEC 62305)
• Including 2 hexagonal bolts M8 x 20 high-grade stainless steel (V2A)
• Conforms to the requirements according to VDE 0185-305 (IEC 62305)
Technical data
Technical data
| Intermediate plate | no |
|---|---|
| Bimetal connector | no |
| Suitable for connection | Miscellaneous |
| Fit | Rd 8-10/FL30 x 16 mm |
| Material | Brass |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (5)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Fit
Item no.
226 50
Rd 8-10/FL30 x 16
5450490
226 70
Rd 8-10/FL30 x 16
5450492
226 95
Rd 8-10/FL30 x 16
5450494
226 Rd8
Rd 8-10/FL30 x 16
5450496
226 25 25
Rd 8-10/FL30 x 16
5450498
226 50
Item no.
5450490
Fit
Rd 8-10/FL30 x 16
226 70
Item no.
5450492
Fit
Rd 8-10/FL30 x 16
226 95
Item no.
5450494
Fit
Rd 8-10/FL30 x 16
226 Rd8
Item no.
5450496
Fit
Rd 8-10/FL30 x 16
226 25 25
Item no.
5450498
Fit
Rd 8-10/FL30 x 16
