Universal connector 100 FS
Type RUVK 100 FS
|Item no. 6067870
|EAN 4012196446292
Item no. / Type
6067870 / RUVK 100 FS
Colour
zinc
Smallest selling unit: 10 piece
10piece
piece
Description

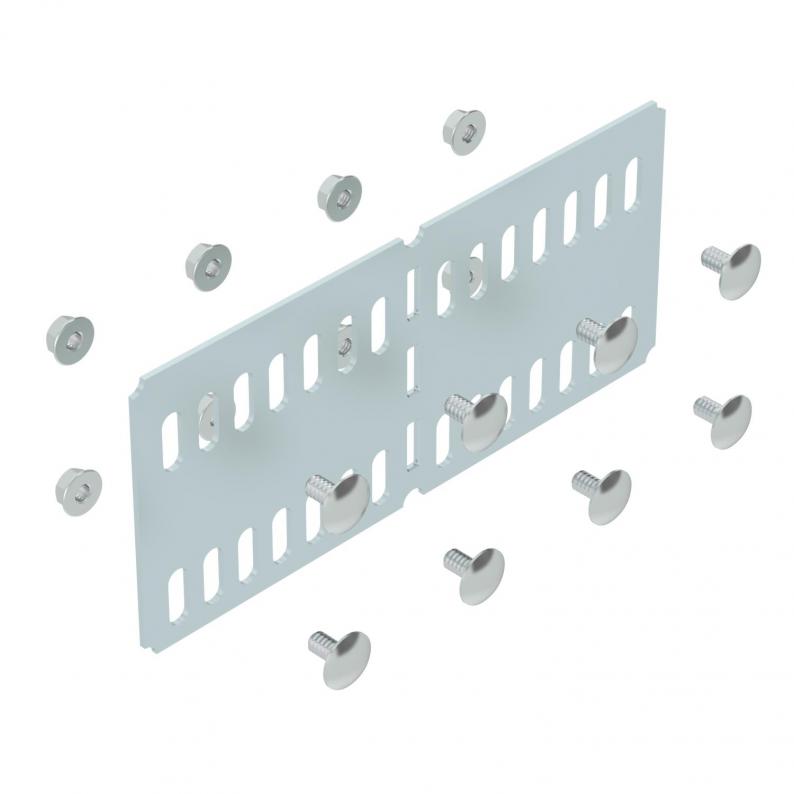

Universal connector for horizontal straight and angle connections of walkable cable trays. In an angled state, with additional cable protection through flattened edges. Including fastening material.
Technical data

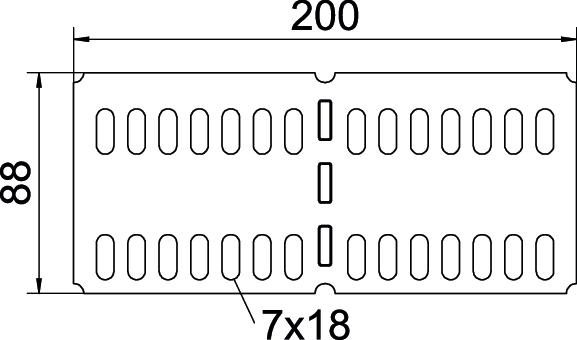

Dimensions
| Length | 200 mm |
|---|---|
| Height | 88 mm |
Technical data
| Plate thickness | 2 mm |
|---|---|
| Quantity of bolts | 8 St. |
| Suitable for cable tray | yes |
| Adjustable connector, horizontal | yes |
| Dimension | 100x200 |
| Suitable for cable support system width, min. | 100 mm |
| Suitable for cable support system width, max. | 600 mm |
| Suitable for cable tray system height | 100 mm |
| Version for | Straight and angle connector |
| Connection type | Screw connector |
| Dimension | 100x200 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,8726 kg CO2e / 1 Piece |
