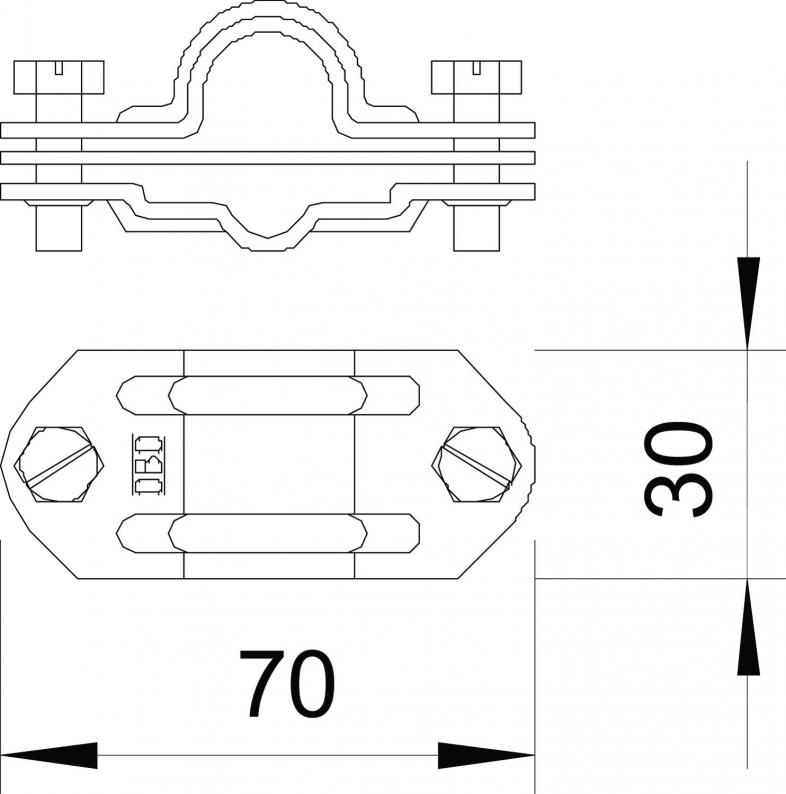

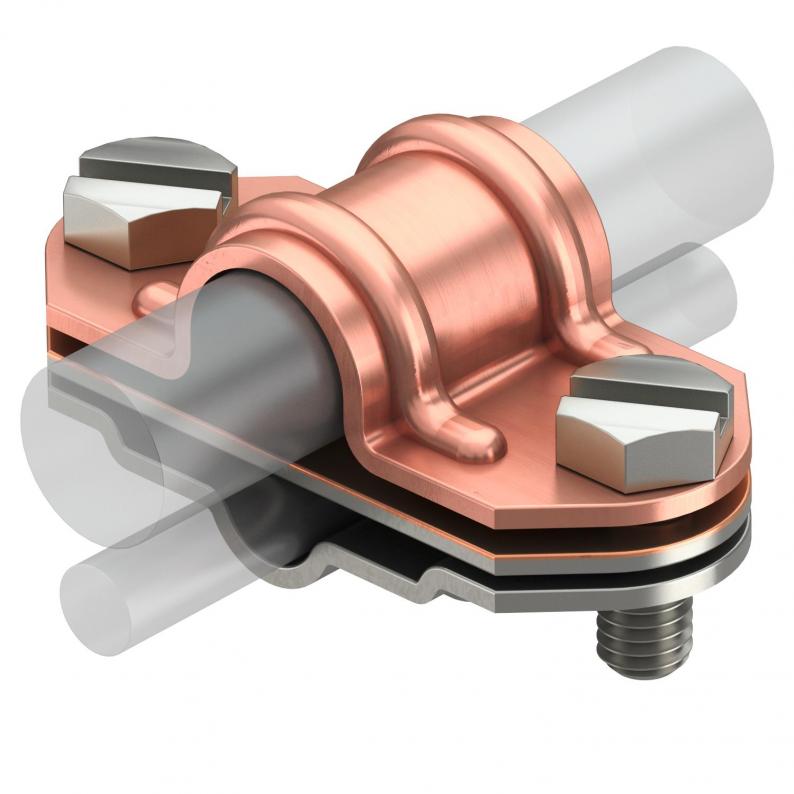

Universal bi-metal separating piece, Rd 16 copper, Rd 8-10 A2

Type 226 ZV 25x3 Cu

Item no. 5450238

EAN 4012196880645

Item no. / Type

5450238 / 226 ZV 25x3 Cu

Smallest selling unit: 1 piece

piece

Description

• Fit: Rd 8-10 x 16, FL 30 x Rd 16
• With 2 hexagonal bolts M8 x 20, stainless steel (VA)
• Intermediate plate, aluminium/copper

Intermediate plate	yes
Bimetal connector	yes
Suitable for connection	Round conductor Rd 16 / flat conductor Fl 30
Material lower part	VA
Material upper part	Cu
Fit	Rd 8-10/FL30 x 16 mm

0 selected

Data sheet (1)

Catalogues & Flyers (5)

Product images (2)

3D data downloads (1)

Tender specifications (2)

226 ZV 25x3 Cu

Item no.

5450238

Fit

Rd 8-10/FL30 x 16
