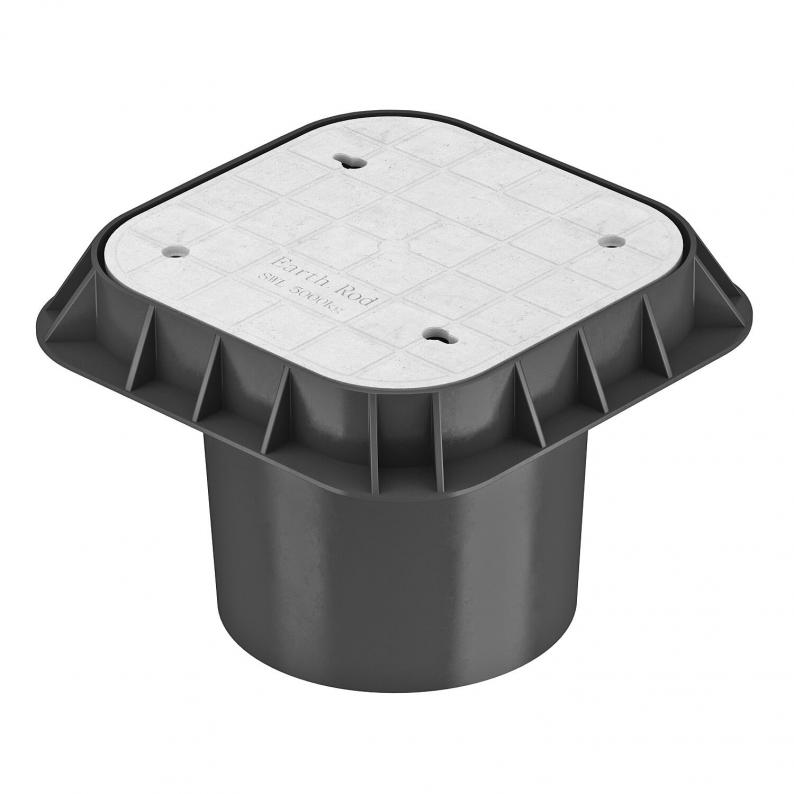

Underfloor test box, made of plastic

Underfloor test box, made of plastic

Type 5700 PIP
|
Item no. 5106045
|
EAN 4012196431311
Show all variants
Item no. / Type
Height
Dimension

Smallest selling unit: 1 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

• Made of plastic (UV-resistant)
• Without separating piece
• To VDE 0185-561-5 (IEC 62561-5) suitable for heavy loads (up to 50 kN/5.0 t)
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

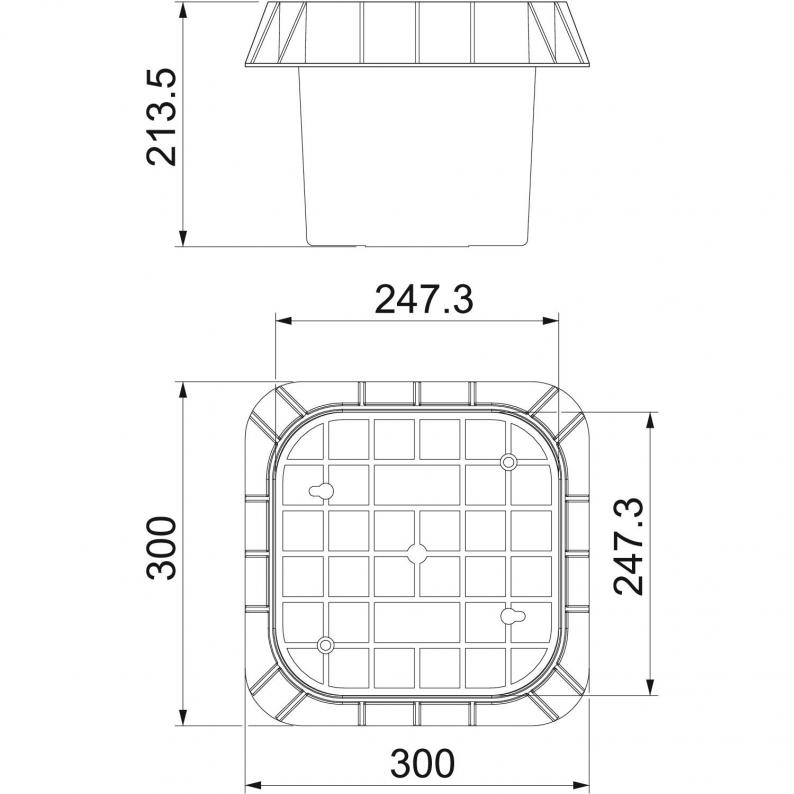

Dimensions

Length300 mm
Width250 mm
Height215 mm
Length0,3 m

Technical data

Dimension300x300x214
MaterialPlastic
CO2 Footprint (GWP) Cradle-to-Gate6,5511 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Product images (2)
Tender specifications (2)

Variants

Dimension
5700 PIP
Item no.
5106045
Height
215
Dimension
300x300x214
5700 PIP SM
Item no.
5106047
Height
215
Dimension
300x300x212
5700 PIP HD
Item no.
5106048
Height
215
Dimension
500x500x315
