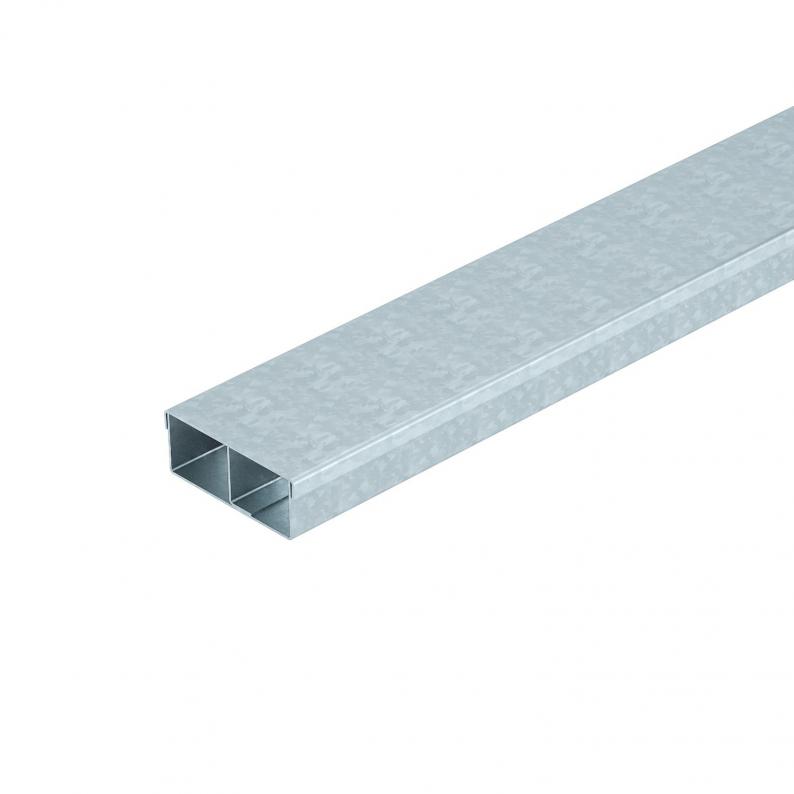

Underfloor duct MD 2-compartment, duct height 38 mm
Type MD 10038 1.5C2
|Item no. 7490328
|EAN 4012196511778
Item no. / Type
Length
Width
Height
Material thickness
Number of compartments
Smallest selling unit: 2.5 m
2.5m
m
Description
Underfloor installation duct for routing cables under the screed.
Technical data

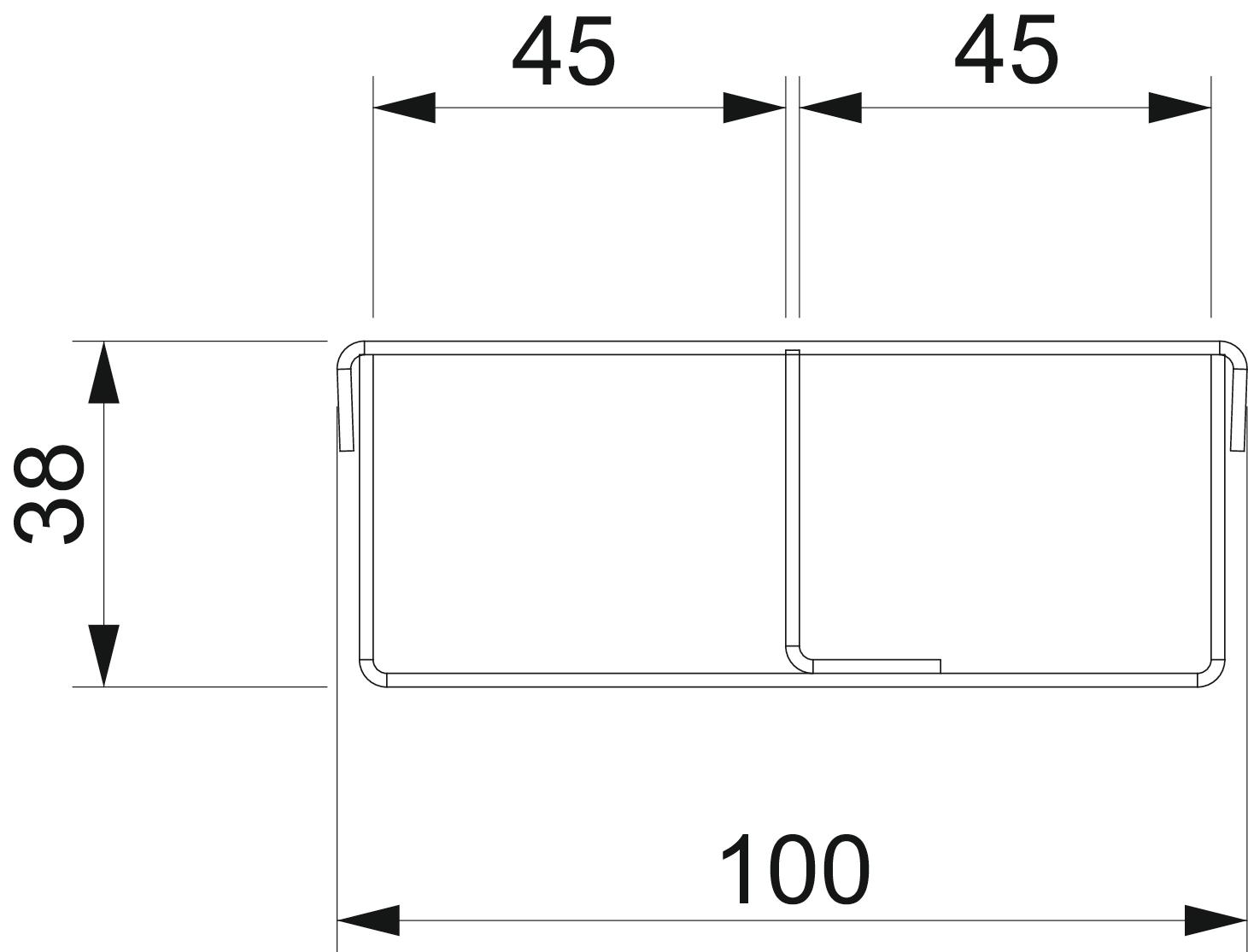

Dimensions
| Length | 2500 mm |
|---|---|
| Width | 100 mm |
| Height | 38 mm |
| Dimension b | 45 mm |
| Dimension a | 45 mm |
| Dimension h | 38 mm |
Technical data
| Material thickness | 1,5 mm |
|---|---|
| Number of compartments | 2 St. |
| Trunking width, min. | 100 mm |
| Application area | Screed-covered |
| Duct height, min. | 38 mm |
| Dimension | 100x38x2500 |
| Surface | Strip galvanized |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Certificates (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)
Variants
Type
Length
Width
Height
Material thickness
Number of compartments
Item no.
MD 10038 1.5C2
2500
100
38
1,5
2
7490328
MD 15038 1.5C2
2500
150
38
1,5
2
7490338
MD 20038 1.5C2
2500
200
38
1,5
2
7490356
Width
MD 10038 1.5C2
Item no.
7490328
Length
2500
Width
100
Height
38
Material thickness
1,5
Number of compartments
2
MD 15038 1.5C2
Item no.
7490338
Length
2500
Width
150
Height
38
Material thickness
1,5
Number of compartments
2
MD 20038 1.5C2
Item no.
7490356
Length
2500
Width
200
Height
38
Material thickness
1,5
Number of compartments
2
