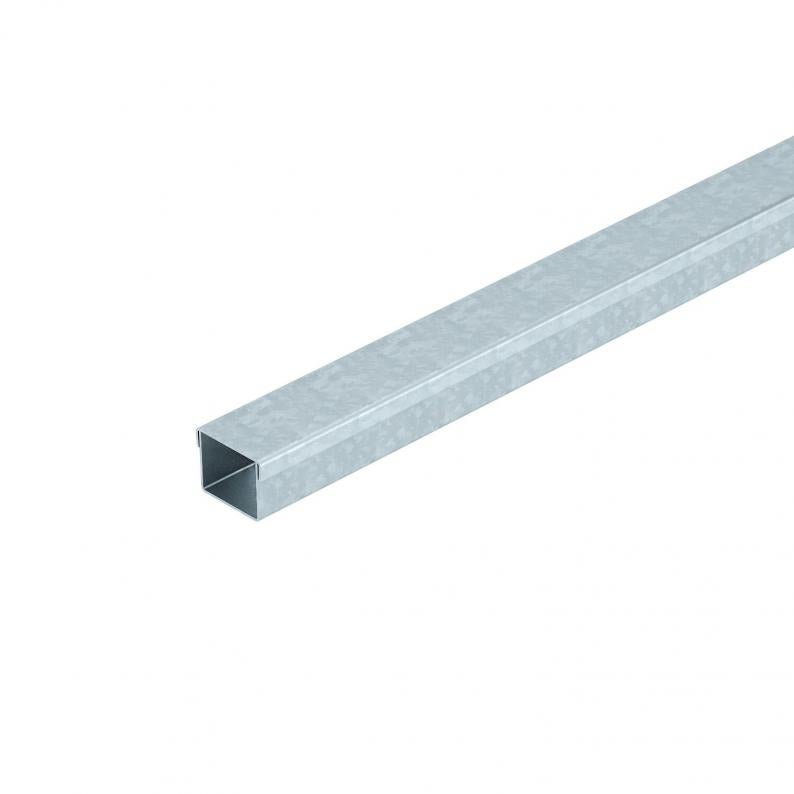

Underfloor duct MD 1-compartment, duct height 38 mm

Underfloor duct MD 1-compartment, duct height 38 mm

Type MD 5038 1.5C1
Item no. 7490302
EAN 4012196511679
Show all variants
Item no. / Type
Length
Width
Height
Material thickness
Number of compartments

Smallest selling unit: 2.5 m

m

Description

Underfloor installation duct for routing cables under the screed.
  • gas-/battery-actuated setting tool

Technical data

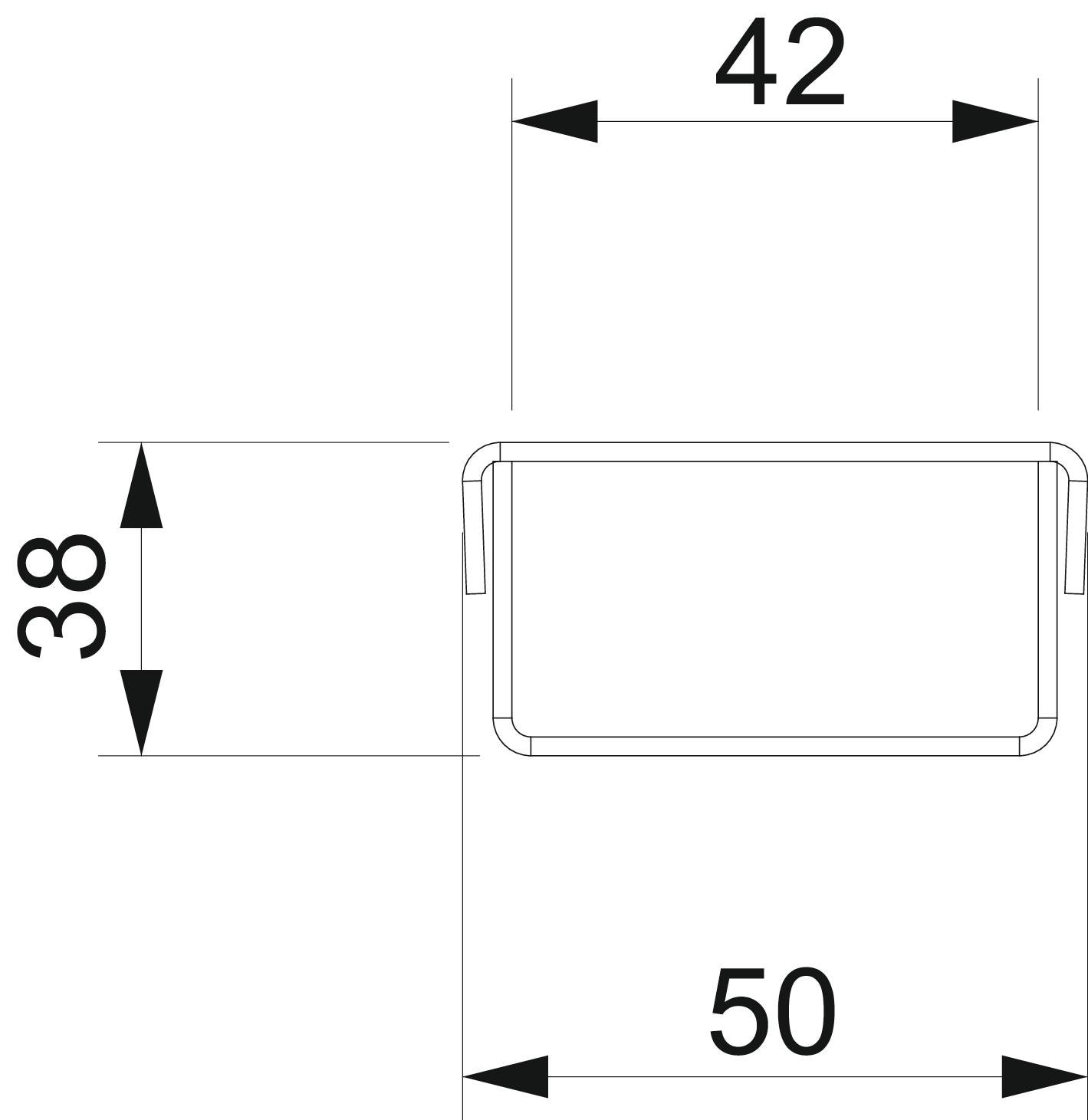

Dimensions

Length2500 mm
Width50 mm
Height38 mm
Dimension a42 mm
Dimension h38 mm

Technical data

Material thickness1,5 mm
Number of compartments1 St.
Trunking width, min.50 mm
Application areaScreed-covered
ROHS-conformantyes
Duct height, min.38 mm
Dimension50x38x2500
SurfaceStrip galvanised
MaterialSteel

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Certificates (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)

Variants

Width
Material thickness
MD 5038 1.5C1
Item no.
7490302
Length
2500
Width
50
Height
38
Material thickness
1,5
Number of compartments
1
MD 7538 1.5C1
Item no.
7490312
Length
2500
Width
75
Height
38
Material thickness
1,5
Number of compartments
1
MD 10038 1.5C1
Item no.
7490326
Length
2500
Width
100
Height
38
Material thickness
1,5
Number of compartments
1
MD 15038 1.5C1
Item no.
7490336
Length
2500
Width
150
Height
38
Material thickness
1,5
Number of compartments
1
MT 10038 2+1.6C1
Item no.
7490325
Length
2500
Width
100
Height
38
Material thickness
1,6
Number of compartments
1
MT 20038 2+1.6C1
Item no.
7490355
Length
2500
Width
200
Height
38
Material thickness
1,6
Number of compartments
1
MD 5038 1.6 C1
Item no.
7490304
Length
2500
Width
50
Height
38
Material thickness
1,6
Number of compartments
1
