U support connector FT
Type VUS 7 FT
|Item no. 6018378
|EAN 4012196014293
Item no. / Type
6018378 / VUS 7 FT
Smallest selling unit: 10 piece
10piece
piece
Description

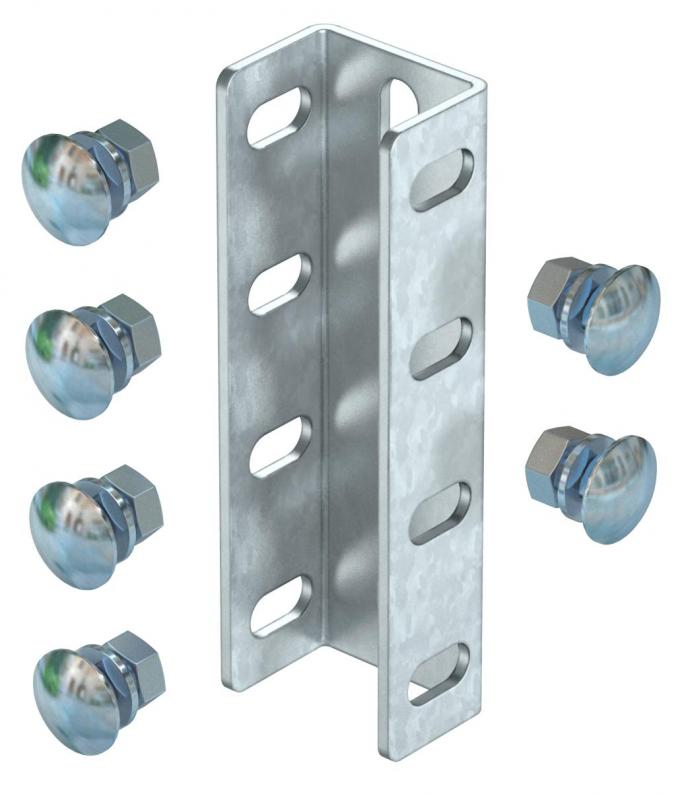

U support connector to connect US 7 supports.
Including appropriate fastening material.
Technical data

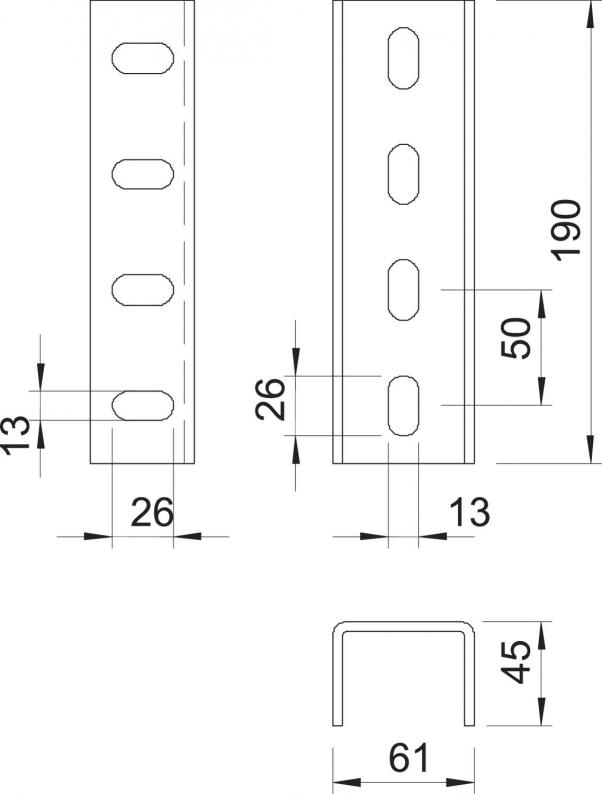

Dimensions
| Length | 190 mm |
|---|---|
| Width | 61 mm |
| Height | 45 mm |
Technical data
| Rustproof steel, pickled | no |
|---|---|
| Material thickness | 4 mm |
| Hole size | 13 x 26 mm |
| Profile shape | U profile |
| Type of perforation | 3 sides perforated |
| Drill hole spacing, centre | 50 mm |
| With screw accessories | yes |
| Dimension | 45 x 61 x 190 |
| Suitable for profile shapes | U profile |
| Dimension | 190x61 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 2,0975 kg CO2e / 1 Piece |
