Turn buckle FT
Type DRL H FT
|Item no. 6065012
|EAN 4012196619047
Item no. / Type
6065012 / DRL H FT
Smallest selling unit: 20 piece
20piece
piece
Description
Turn buckle for additional installation or installation at a later date.

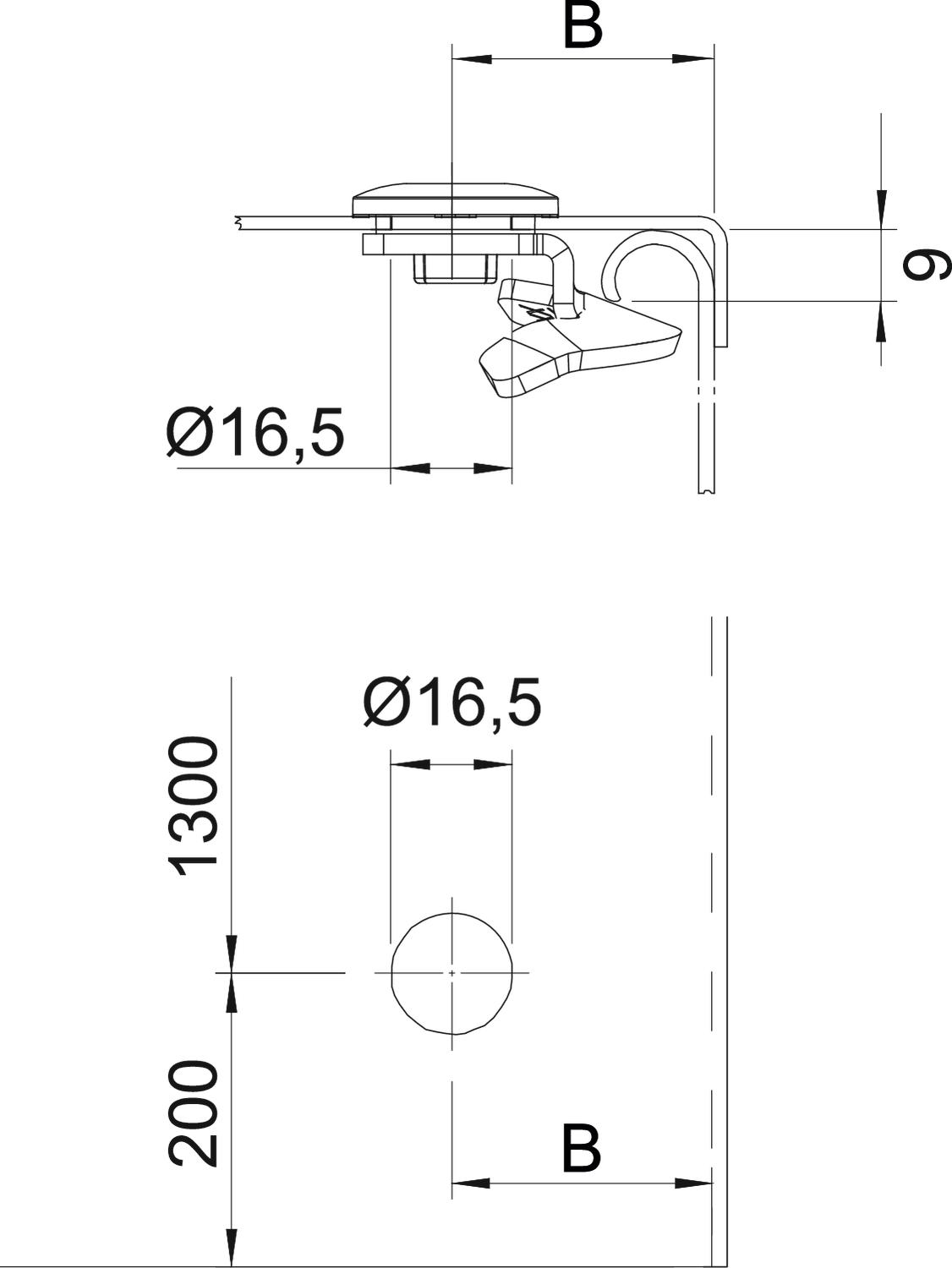

Depending on the cover version, dimension B varies as follows:
DRL / DRLU = 27 mm
DBKR = 27 mm
WDRL = 38 mm
WKLD = 58 mm
Depending on the cover version, dimension B varies as follows:
DRL / DRLU = 27 mm
DBKR = 27 mm
WDRL = 38 mm
WKLD = 58 mm
Single-sided turn buckle. Use for cover widths of 100–600 mm.
Technical data
Technical data
| Rustproof steel, pickled | no |
|---|---|
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | yes |
| Suitable for cable tray | yes |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0954 kg CO2e / 1 Piece |
