T piece VS 75 FS
Type LT 720 VS FS
|Item no. 6487702
|EAN 4012196514496
Item no. / Type
Width
Rail thickness
Smallest selling unit: 1 piece
1piece
piece
Description

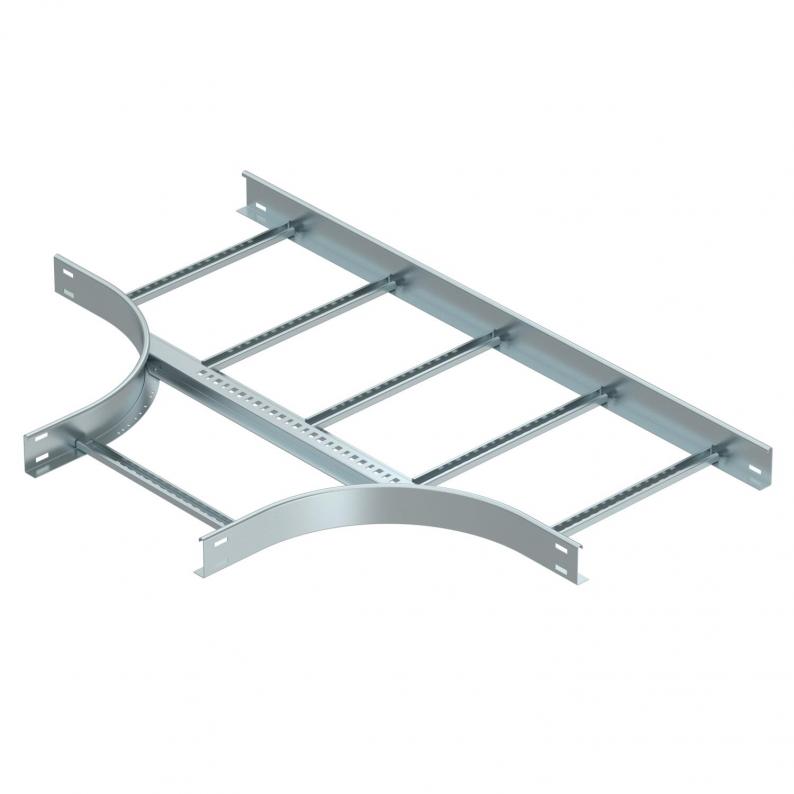

T piece, horizontal, with intelligent VS rung, for all cable ladder types of 75 mm side height.
Connectors should be ordered separately and in the appropriate quantity.
Technical data
Dimensions
| Width | 200 mm |
|---|---|
| Height | 75 mm |
Technical data
| Rail thickness | 1,5 mm |
|---|---|
| Dimension | 75x200 R300 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (5)
Declarations (2)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Variants
Type
Width
Rail thickness
Item no.
LT 720 VS FS
200
1,5
6487702
LT 730 VS FS
300
1,5
6487704
LT 745 VS FS
450
1,5
6487706
LT 760 VS FS
600
1,5
6487708
LT 775 VS FS
750
1,5
6487710
LT 7100 VS FS
1000
1,5
6487712
Width
LT 720 VS FS
Item no.
6487702
Width
200
Rail thickness
1,5
LT 730 VS FS
Item no.
6487704
Width
300
Rail thickness
1,5
LT 745 VS FS
Item no.
6487706
Width
450
Rail thickness
1,5
LT 760 VS FS
Item no.
6487708
Width
600
Rail thickness
1,5
LT 775 VS FS
Item no.
6487710
Width
750
Rail thickness
1,5
LT 7100 VS FS
Item no.
6487712
Width
1000
Rail thickness
1,5
