T piece VS 100 FT
Type LT 1020 VS FT
|Item no. 6487722
|EAN 4012196514595
Item no. / Type
Width
Rail thickness
Smallest selling unit: 1 piece
1piece
piece
Description

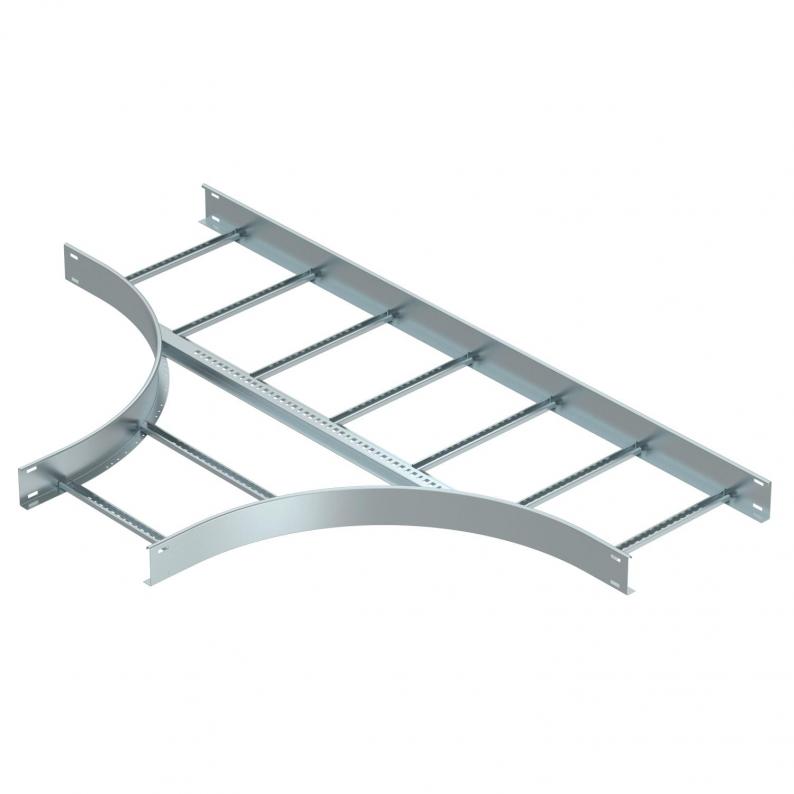

T piece, horizontal, with intelligent VS rung, for all cable ladder types of 100 mm side height.
Connectors should be ordered separately and in the appropriate quantity.
Technical data
Dimensions
| Width | 200 mm |
|---|---|
| Height | 100 mm |
Technical data
| Rail thickness | 1,5 mm |
|---|---|

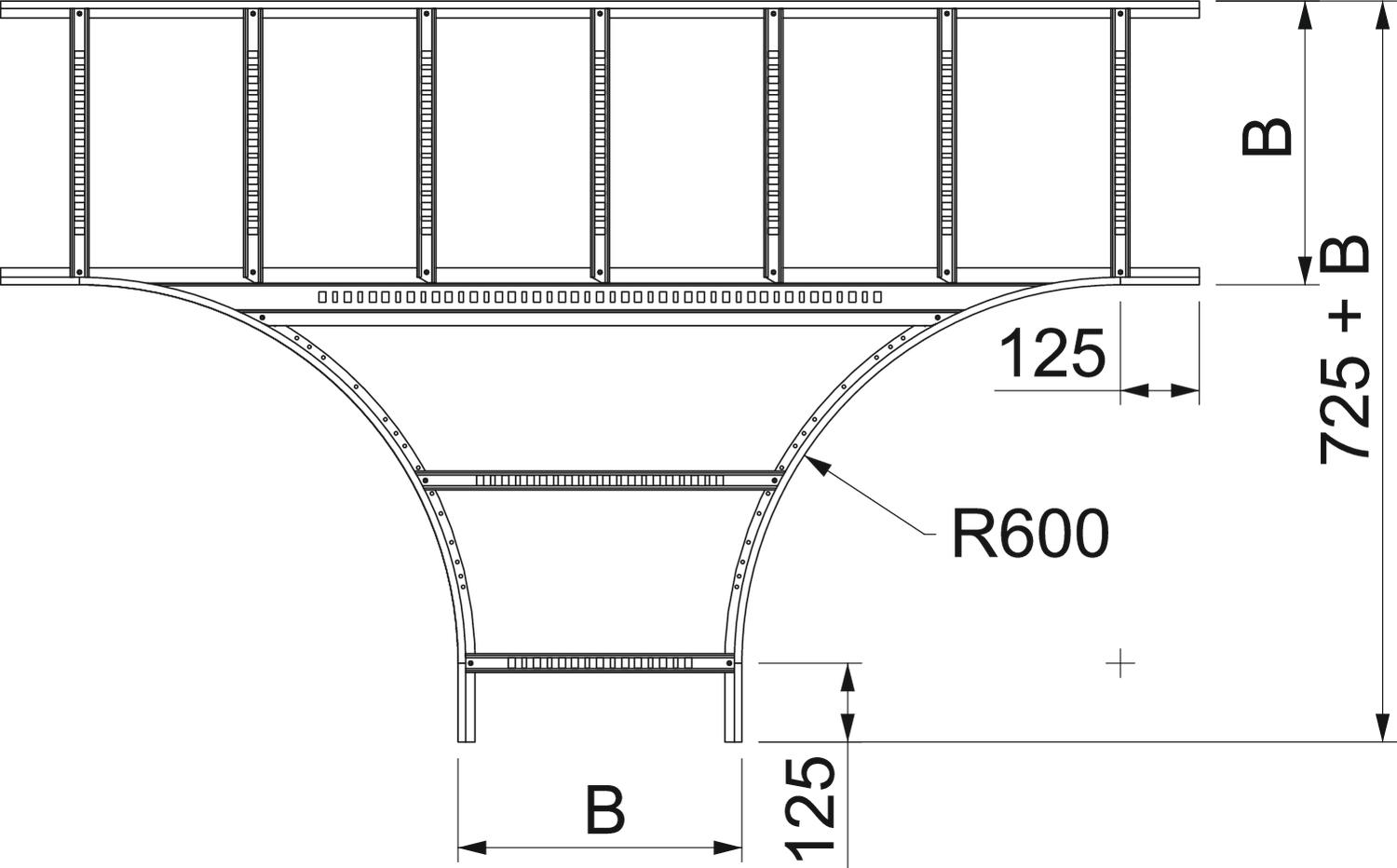

| Dimension | 100x200 R600 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (5)
Declarations (2)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Variants
Type
Width
Rail thickness
Item no.
LT 1020 VS FT
200
1,5
6487722
LT 1030 VS FT
300
1,5
6487724
LT 1045 VS FT
450
1,5
6487727
LT 1060 VS FT
600
1,5
6487728
LT 1075 VS FT
750
1,5
6487730
LT 1090 VS FT
900
1,5
6487732
LT 10100 VS FT
1000
1,5
6487735
Width
LT 1020 VS FT
Item no.
6487722
Width
200
Rail thickness
1,5
LT 1030 VS FT
Item no.
6487724
Width
300
Rail thickness
1,5
LT 1045 VS FT
Item no.
6487727
Width
450
Rail thickness
1,5
LT 1060 VS FT
Item no.
6487728
Width
600
Rail thickness
1,5
LT 1075 VS FT
Item no.
6487730
Width
750
Rail thickness
1,5
LT 1090 VS FT
Item no.
6487732
Width
900
Rail thickness
1,5
LT 10100 VS FT
Item no.
6487735
Width
1000
Rail thickness
1,5
