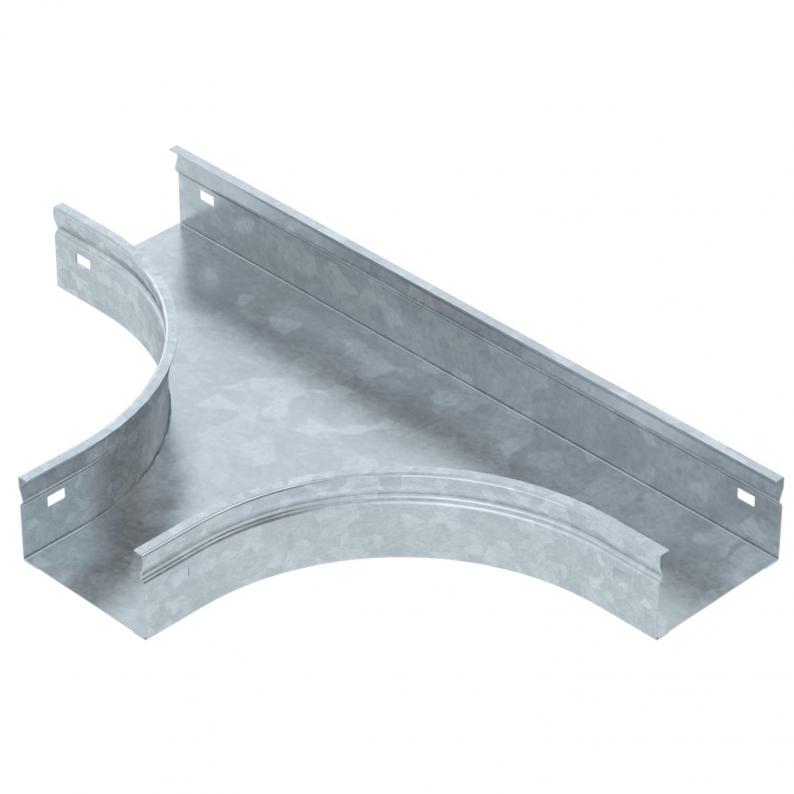

T branch piece, horizontal 60 FT
Type GKST 610 FT
|Item no. 6483461
|EAN 4012195571797
Item no. / Type
Width
Surface
Hot-dip galvanised
Material
Steel
Smallest selling unit: 1 piece
1piece
piece
Description
Horizontal tee for all GKS... cable tray types with a side height of 60 mm.
Technical data

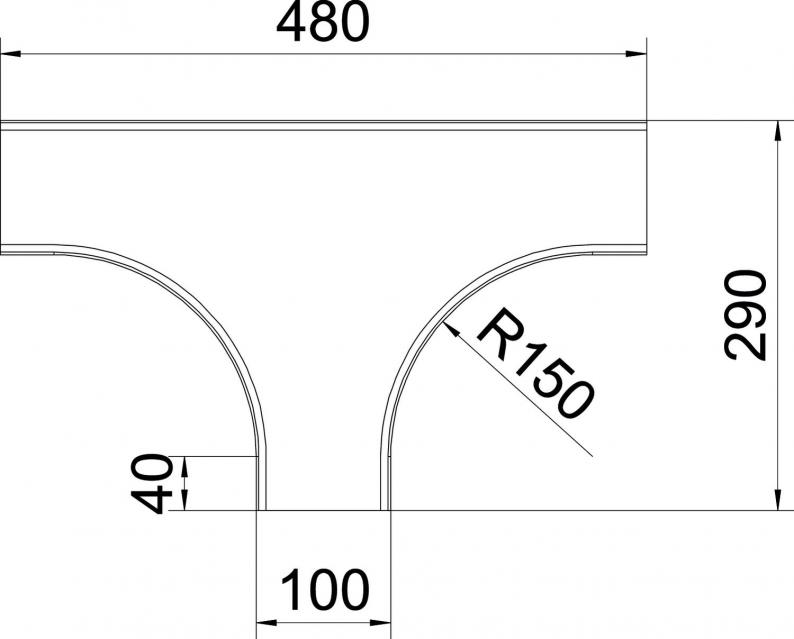

Dimensions
| Width | 100 mm |
|---|---|
| Height | 60 mm |
| Dimension B | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Without connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| NATO hole pattern | no |
| Type | T piece horizontal |
| Dimension | 60x100 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (5)
Declarations (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Variants
Type
Width
Surface
Material
Item no.
GKST 610 FT
100
Hot-dip galvanised
Steel
6483461
GKST 615 FT
150
Hot-dip galvanised
Steel
6483462
GKST 620 FT
200
Hot-dip galvanised
Steel
6483463
GKST 630 FT
300
Hot-dip galvanised
Steel
6483464
GKST 640 FT
400
Hot-dip galvanised
Steel
6483465
GKST 650 FT
500
Hot-dip galvanised
Steel
6483466
Width
GKST 610 FT
Item no.
6483461
Width
100
Surface
Hot-dip galvanised
Material
Steel
GKST 615 FT
Item no.
6483462
Width
150
Surface
Hot-dip galvanised
Material
Steel
GKST 620 FT
Item no.
6483463
Width
200
Surface
Hot-dip galvanised
Material
Steel
GKST 630 FT
Item no.
6483464
Width
300
Surface
Hot-dip galvanised
Material
Steel
GKST 640 FT
Item no.
6483465
Width
400
Surface
Hot-dip galvanised
Material
Steel
GKST 650 FT
Item no.
6483466
Width
500
Surface
Hot-dip galvanised
Material
Steel
