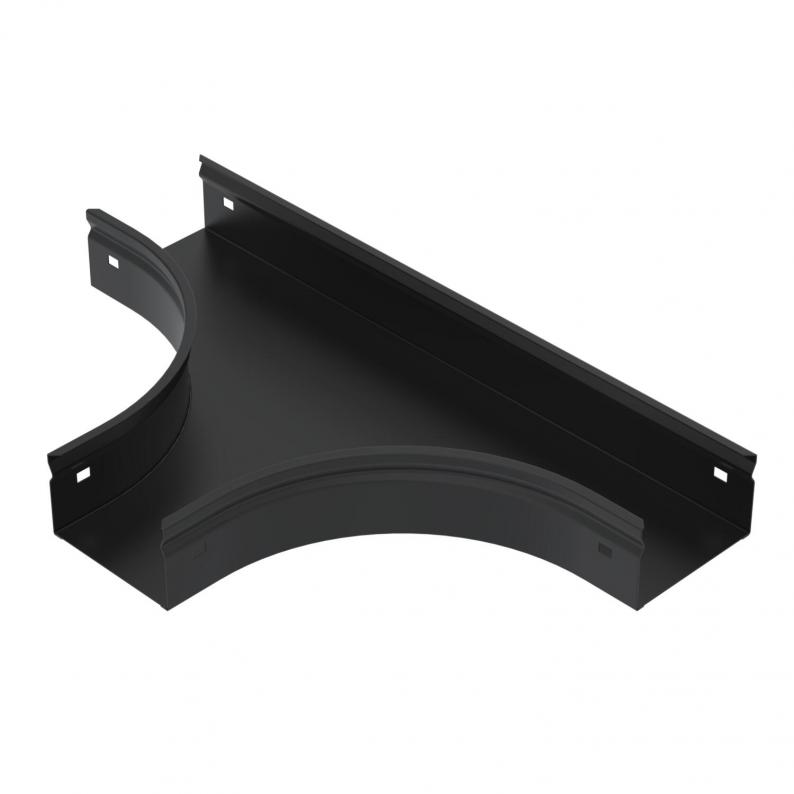

T branch piece, horizontal 60 FSK SW
Type GKST 610 FSK SW
|Item no. 6487952
|EAN 4012197466251
Item no. / Type
Width
Surface
PES50 - Polyester/epoxy
Material
Steel
Smallest selling unit: 1 piece
1piece
piece
Description
Horizontal T-branch piece for all GKS... cable tray types with a side height of 60 mm.
Technical data

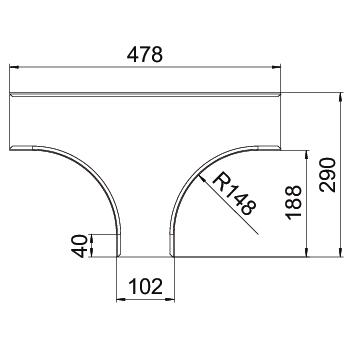

Dimensions
| Width | 100 mm |
|---|---|
| Height | 60 mm |
| Dimension L | 478 mm |
| Dimension W | 102 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Without connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 0,8 mm |
| NATO hole pattern | no |
| Width of the branch | 100 mm |
| Type | T piece horizontal |
| Rail thickness | 0,8 mm |
| Dimension | 60x100 |
| Surface | PES50 - Polyester/epoxy |
| Material | Steel |
| Colour | Jet black; RAL 9005 |
Downloads
0 selected
Data sheet (1)
Declarations (2)
Product images (2)
Tender specifications (1)
Variants
Type
Width
Surface
Material
Item no.
GKST 610 FSK SW
100
PES50 - Polyester/epoxy
Steel
6487952
GKST 615 FSK SW
150
PES50 - Polyester/epoxy
Steel
6487953
GKST 620 FSK SW
200
PES50 - Polyester/epoxy
Steel
6487954
GKST 630 FSK SW
300
PES50 - Polyester/epoxy
Steel
6487956
GKST 640 FSK SW
400
PES50 - Polyester/epoxy
Steel
6487958
GKST 650 FSK SW
500
PES50 - Polyester/epoxy
Steel
6487960
