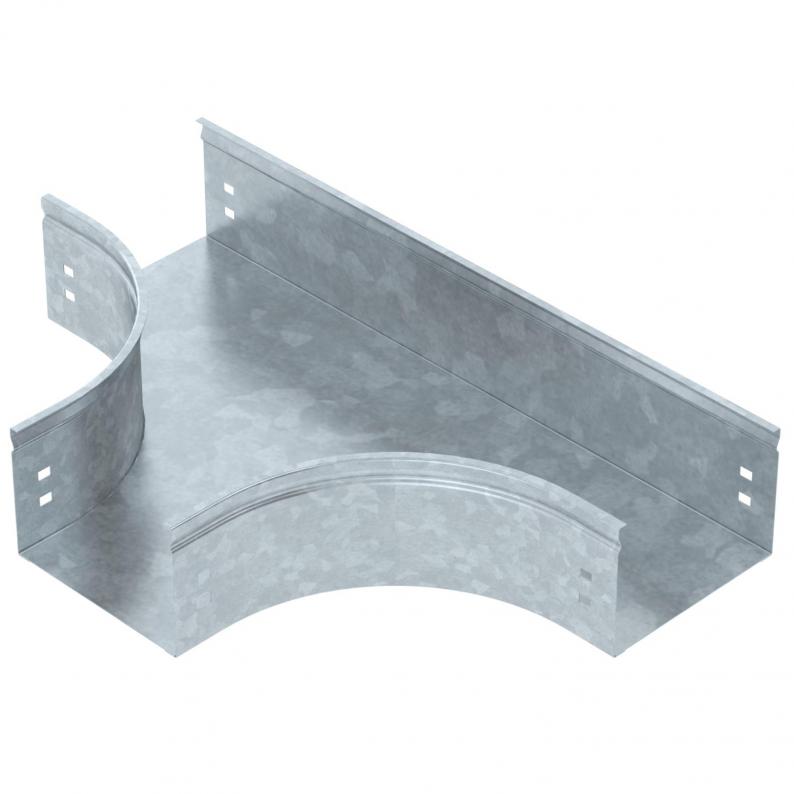

T branch piece, horizontal 100 FT
Type GKST 115 FT
|Item no. 6483482
|EAN 4012195509400
Item no. / Type
Width
Surface
Hot-dip galvanised
Material
Steel
Smallest selling unit: 1 piece
1piece
piece
Description
Horizontal tee for all GKS... cable tray types with a side height of 100 mm.
Technical data

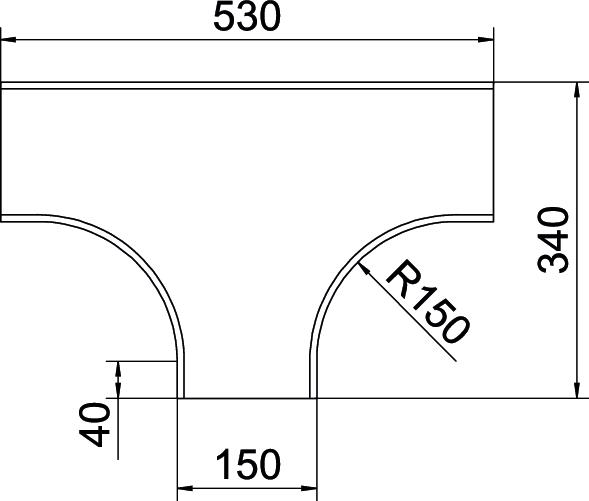

Dimensions
| Width | 150 mm |
|---|---|
| Height | 100 mm |
| Dimension B | 150 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Without connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| NATO hole pattern | no |
| Type | T piece horizontal |
| Dimension | 100x150 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (6)
Declarations (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Variants
Type
Width
Surface
Material
Item no.
GKST 115 FT
150
Hot-dip galvanised
Steel
6483482
GKST 120 FT
200
Hot-dip galvanised
Steel
6483483
GKST 130 FT
300
Hot-dip galvanised
Steel
6483484
GKST 140 FT
400
Hot-dip galvanised
Steel
6483485
GKST 150 FT
500
Hot-dip galvanised
Steel
6483486
Width
GKST 115 FT
Item no.
6483482
Width
150
Surface
Hot-dip galvanised
Material
Steel
GKST 120 FT
Item no.
6483483
Width
200
Surface
Hot-dip galvanised
Material
Steel
GKST 130 FT
Item no.
6483484
Width
300
Surface
Hot-dip galvanised
Material
Steel
GKST 140 FT
Item no.
6483485
Width
400
Surface
Hot-dip galvanised
Material
Steel
GKST 150 FT
Item no.
6483486
Width
500
Surface
Hot-dip galvanised
Material
Steel
