T branch piece 110 FT
Type RT 110 FT
|Item no. 7119119
|EAN 4012196812714
Item no. / Type
Width
Smallest selling unit: 1 piece
1piece
piece
Description
Horizontal T branch piece, for all cable tray types of 110 mm side height.
The fitting is shipped in an unmounted state. Including appropriate fastening material.
Technical data

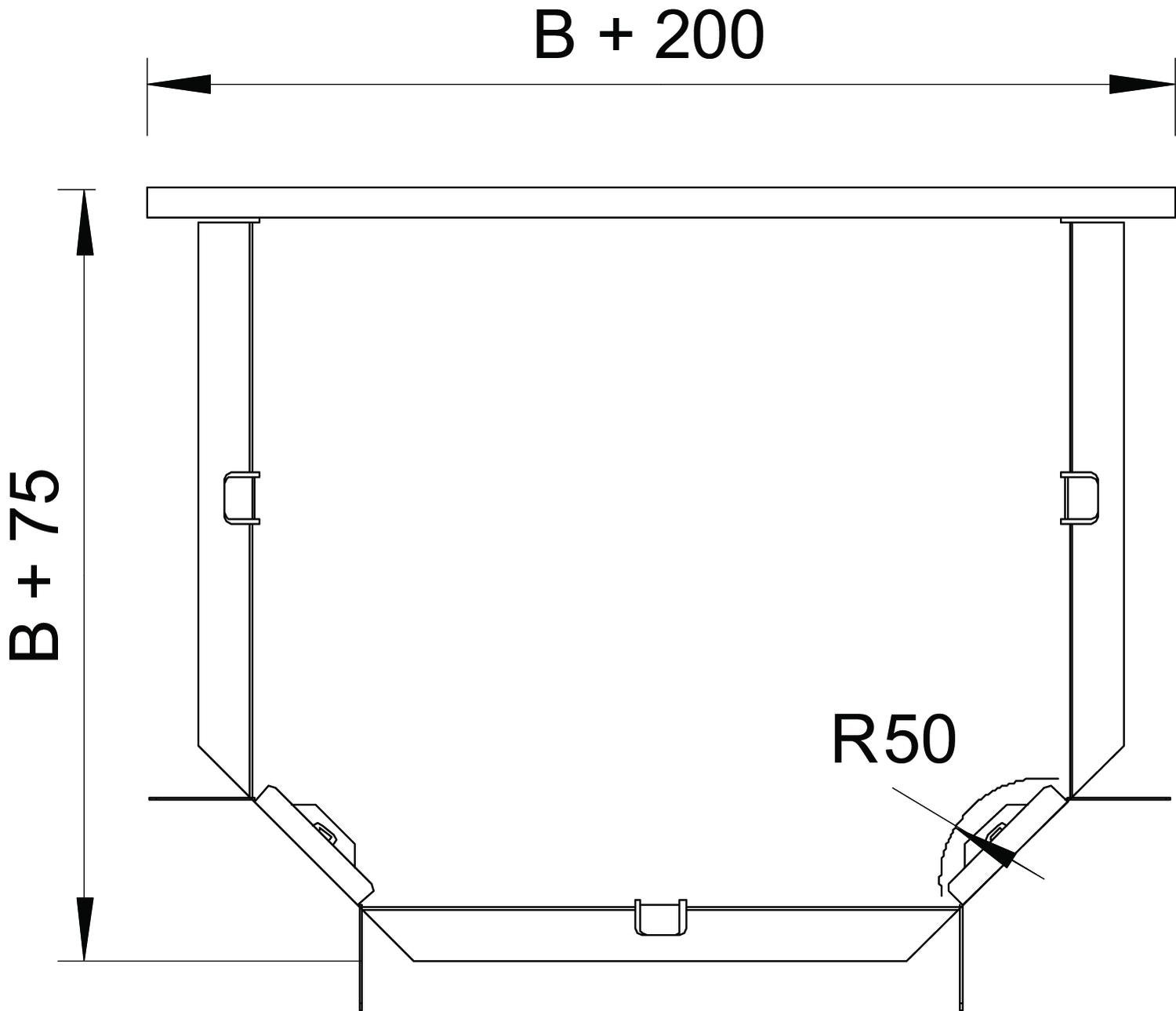

Dimensions
| Width | 100 mm |
|---|---|
| Height | 110 mm |
| Dimension B | 100 mm |
| Dimension R | 50 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Supplied connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| NATO hole pattern | no |
| Bend (angle) | 90° |
| Change of direction | Horizontal |
| Type | T piece horizontal |
| Rail thickness | 1,25 mm |
| Dimension | 110x100 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Type of connector, cable support system | Screwed |
Accessories
Mounting accessories
Article
Type
Item no.
Amount
Item no. 6406122
Truss-head bolt with flange nut FType
FRSB 6x12 F
Smallest selling unit: 100 piece
100piece
piece
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Width
Surface
Material
Item no.
RT 110 FT
100
Hot-dip galvanised
Steel
7119119
RT 120 FT
200
Hot-dip galvanised
Steel
7119216
RT 130 FT
300
Hot-dip galvanised
Steel
7119313
Width
RT 110 FT
Item no.
7119119
Width
100
Surface
Hot-dip galvanised
Material
Steel
RT 120 FT
Item no.
7119216
Width
200
Surface
Hot-dip galvanised
Material
Steel
RT 130 FT
Item no.
7119313
Width
300
Surface
Hot-dip galvanised
Material
Steel
