Symmetrical floor support, crossbeam 400
Type BSST 400 FS
|Item no. 6044406
|EAN 4012197332488
Item no. / Type
Length
Width
Height
Smallest selling unit: 1 piece
1piece
piece
Description

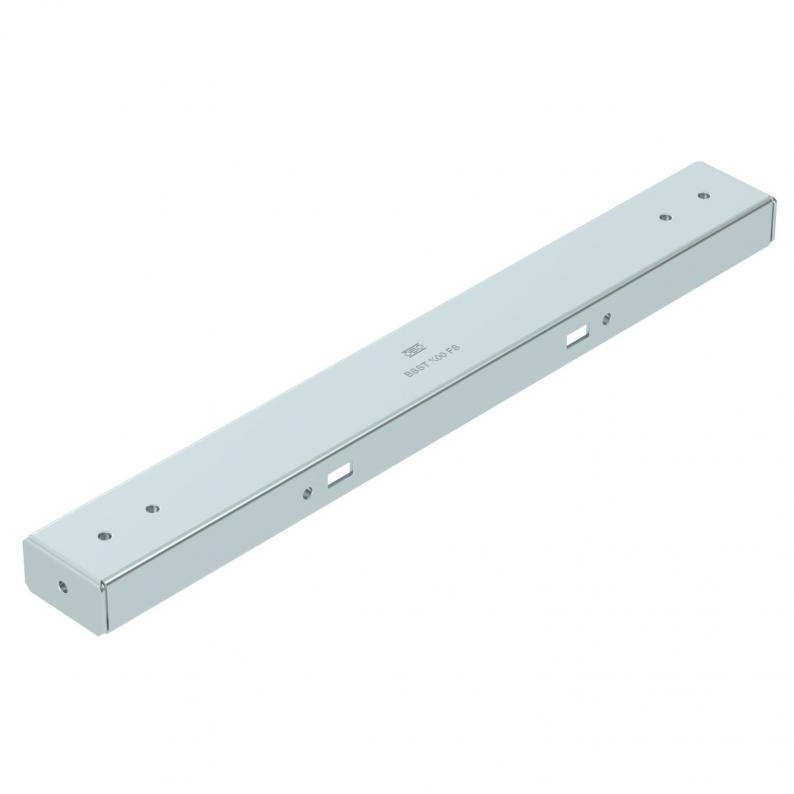

Crossbeam of the symmetrical floor support for the BKRS system, suitable for base type BSSU 190 4060. Can be used for walkable cable trays of width 400 mm. With threaded unions for cut-free mounting of cable trays. Fastening to base with 4x FKS M6 flat-head screws. Fastening material must be ordered separately.
Technical data

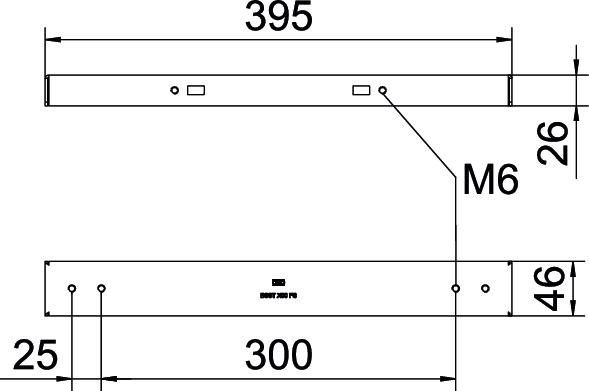

Dimensions
| Length | 46 mm |
|---|---|
| Width | 395 mm |
| Height | 26 mm |
| Dimension L | 300 mm |
| Dimension B | 395 mm |
Technical data
| Rustproof steel, pickled | no |
|---|---|
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Suitable for cable support system width, min. | 400 mm |
| Suitable for cable support system width, max. | 400 mm |
| Version for | Miscellaneous |
| Tray fastening | Screw-on |
| Dimension | B400mm |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 2,0157 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Variants
Type
Length
Width
Height
Item no.
BSST 400 FS
46
395
26
6044406
BSST 500 FS
46
495
26
6044408
BSST 600 FS
46
595
26
6044410
Width
BSST 400 FS
Item no.
6044406
Length
46
Width
395
Height
26
BSST 500 FS
Item no.
6044408
Length
46
Width
495
Height
26
BSST 600 FS
Item no.
6044410
Length
46
Width
595
Height
26
