Support cable with universal bracket, galvanic
Type QW UW 2 3M G
|Item no. 1450407
|EAN 4012196706594
Item no. / Type
1450407 / QW UW 2 3M G
Smallest selling unit: 1 piece
1piece
piece
Description

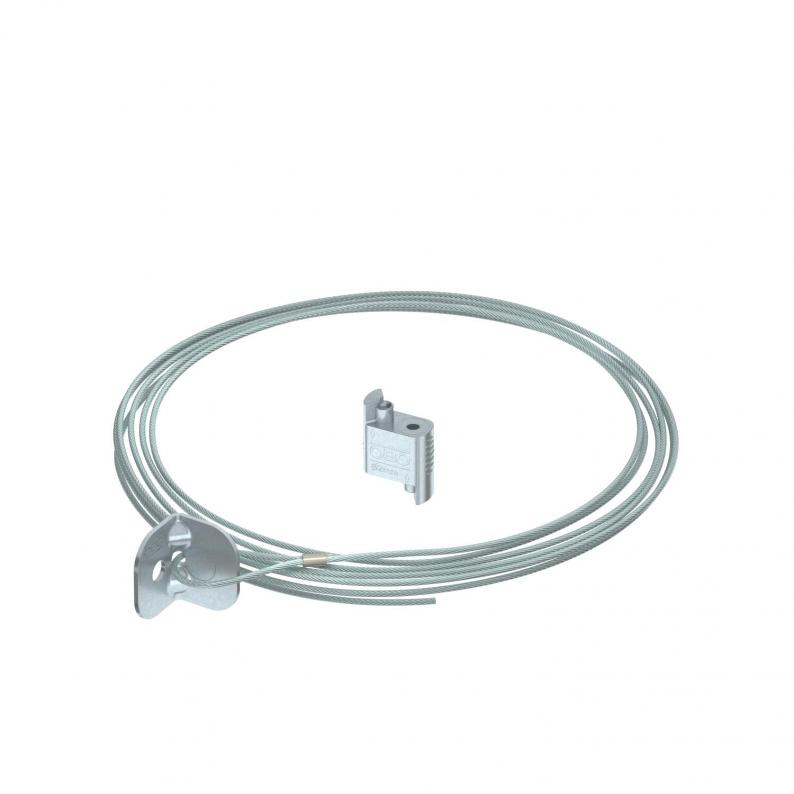

Support cable with universal bracket for the suspension of different loads. Suitable for indoor use.
Universal bracket for simple wall and ceiling mounting. One bracket side with fastening hole, e.g. for a nail tie, second side with marking for a nail setting device. With cable gripper for infinite, tool-free adjustment.
The operating load is stated with a safety factor of 5:1. The break load is 5x greater than the operating load. In combination with the universal bracket for mesh cable trays (QW GRH) or for cable trays (QW KRH), the safety factor is 1.7 according to IEC 61537 – Guide systems for cables.
Universal bracket for simple wall and ceiling mounting. One bracket side with fastening hole, e.g. for a nail tie, second side with marking for a nail setting device. With cable gripper for infinite, tool-free adjustment.
The operating load is stated with a safety factor of 5:1. The break load is 5x greater than the operating load. In combination with the universal bracket for mesh cable trays (QW GRH) or for cable trays (QW KRH), the safety factor is 1.7 according to IEC 61537 – Guide systems for cables.
Technical data

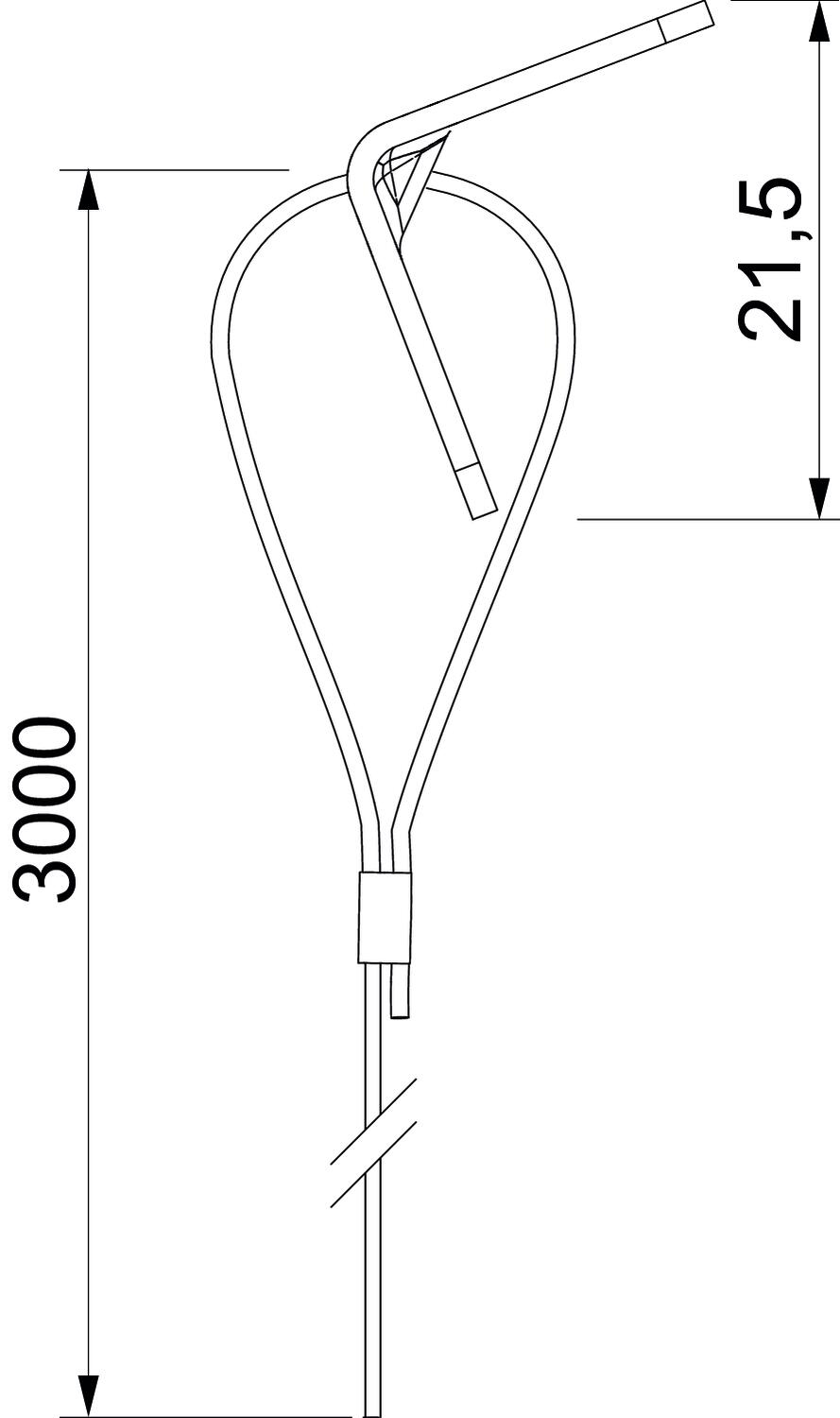

Dimensions
| Length | 3000 mm |
|---|---|
| Dimension L | 3000 mm |
Technical data
| Cable diameter | 2 mm |
|---|---|
| Operating load | 45 kg |
| Dimension | 2x3000mm |
| Surface | Electrogalvanized |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Variants
Type
Cable diameter
Item no.
QW UW 2 3M G
2
1450407
QW UW 2 3M G
Item no.
1450407
Cable diameter
2
