Support cable with trapezoidal plate hook, galvanic
Type QW TH 2 3M G
|Item no. 1450707
|EAN 4012196707195
Item no. / Type
1450707 / QW TH 2 3M G
Smallest selling unit: 1 piece
1piece
piece
Description

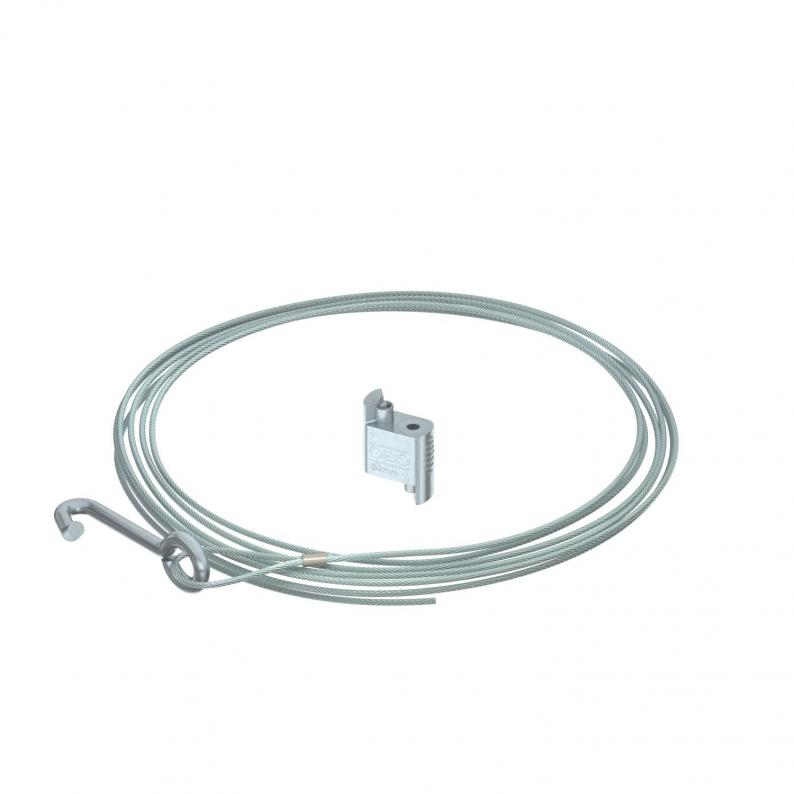

Support cable with trapezoidal plate hook for the suspension of different loads. Suitable for indoor use.
Trapezoidal plate hook for fastening on trapezoidal plate ceilings with the appropriate hole. Suitable hole or opening (minimum 6 mm) required. With cable gripper for infinite, tool-free adjustment.
The operating load is stated with a safety factor of 5:1. The break load is 5x greater than the operating load.
Trapezoidal plate hook for fastening on trapezoidal plate ceilings with the appropriate hole. Suitable hole or opening (minimum 6 mm) required. With cable gripper for infinite, tool-free adjustment.
The operating load is stated with a safety factor of 5:1. The break load is 5x greater than the operating load.
Technical data

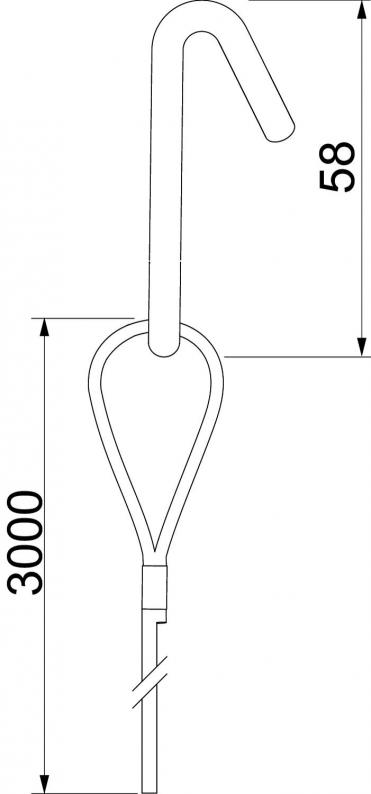

Dimensions
| Length | 3000 mm |
|---|---|
| Dimension L | 3000 mm |
Technical data
| Cable diameter | 2 mm |
|---|---|
| Operating load | 45 kg |
| Dimension | 2x3000mm |
| Surface | Electrogalvanized |
| Material | Steel |
