Support cable for cable trays
Type QWTKR2 200 H100G
|Item no. 1450324
|EAN 4012197497439
Item no. / Type
Cable diameter
Smallest selling unit: 1 piece
1piece
piece
Description

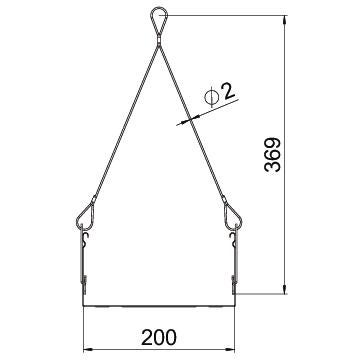

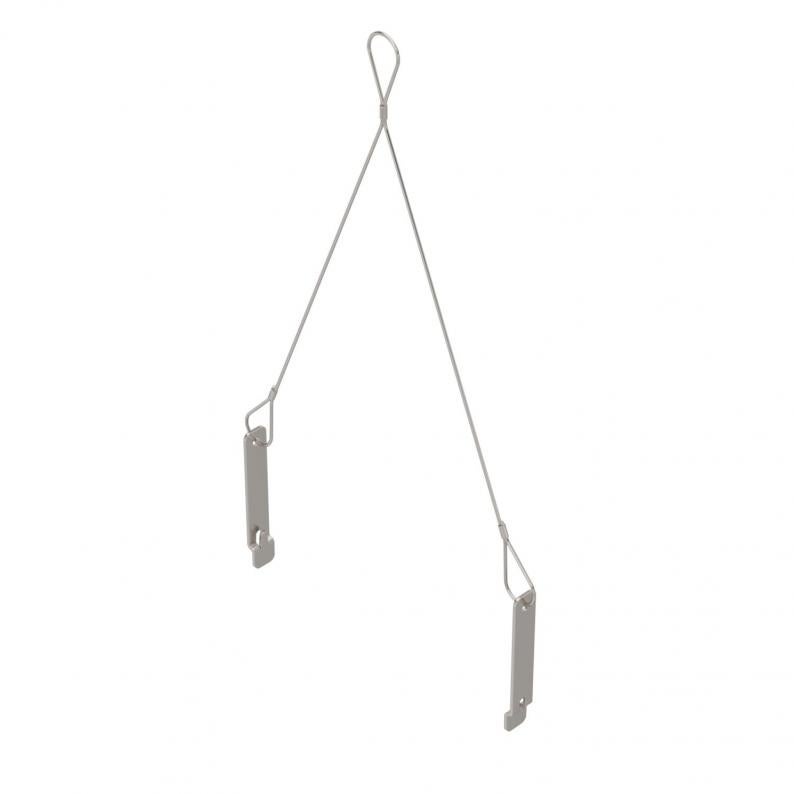

Y suspension for the suspension of 100mm side height GKS perforated cable trays. Suitable for indoor use. The operating load is stated with a safety factor of 5:1. The break load is 5x greater than the operating load. Suitable maximum cable tray width from 50mm to 200mm. Tested according to the BS EN 12385.
Technical data
Technical data
| Cable diameter | 2 mm |
|---|---|
| Operating load | 45 kg |
| Dimension | 2x2x300mm |
| Surface | Electrogalvanized |
| Material | Steel |
Downloads
0 selected
Product images (2)
Tender specifications (1)
Variants
Type
Cable diameter
Item no.
QWTKR2 200 H100G
2
1450324
QWTKR2 400 H100G
2
1450330
QWTKR3 200 H100G
3
1450336
QWTKR3 400 H100G
3
1450342
Cable diameter
QWTKR2 200 H100G
Item no.
1450324
Cable diameter
2
QWTKR2 400 H100G
Item no.
1450330
Cable diameter
2
QWTKR3 200 H100G
Item no.
1450336
Cable diameter
3
QWTKR3 400 H100G
Item no.
1450342
Cable diameter
3
