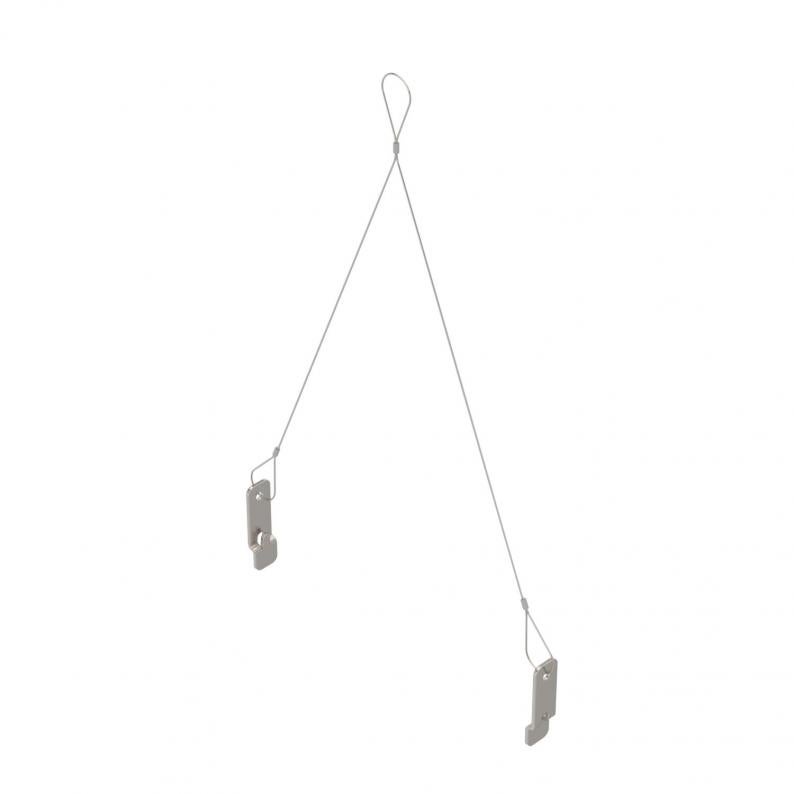

Support cable for cable trays
Type QWTKR1 200 H60G
|Item no. 1450310
|EAN 4012197497385
Item no. / Type
Cable diameter
Smallest selling unit: 1 piece
1piece
piece
Description
Y suspension for the suspension of 60mm side height GKS perforated cable trays. Suitable for indoor use. The operating load is stated with a safety factor of 5:1. The break load is 5x greater than the operating load. Suitable maximum cable tray width from 50mm to 200mm. Tested according to the BS EN 12385.
Technical data
Technical data
| Cable diameter | 1 mm |
|---|---|
| Operating load | 10 kg |

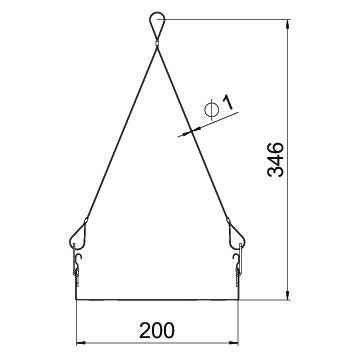

| Dimension | 2x1x300mm |
| Surface | Electrogalvanized |
| Material | Steel |
Downloads
0 selected
Product images (2)
Tender specifications (1)
Variants
Type
Cable diameter
Item no.
QWTKR1 200 H60G
1
1450310
QWTKR2 200 H60G
2
1450312
QWTKR2 400 H60G
2
1450314
QWTKR3 200 H60G
3
1450316
QWTKR3 400 H60G
3
1450318
Cable diameter
QWTKR1 200 H60G
Item no.
1450310
Cable diameter
1
QWTKR2 200 H60G
Item no.
1450312
Cable diameter
2
QWTKR2 400 H60G
Item no.
1450314
Cable diameter
2
QWTKR3 200 H60G
Item no.
1450316
Cable diameter
3
QWTKR3 400 H60G
Item no.
1450318
Cable diameter
3
