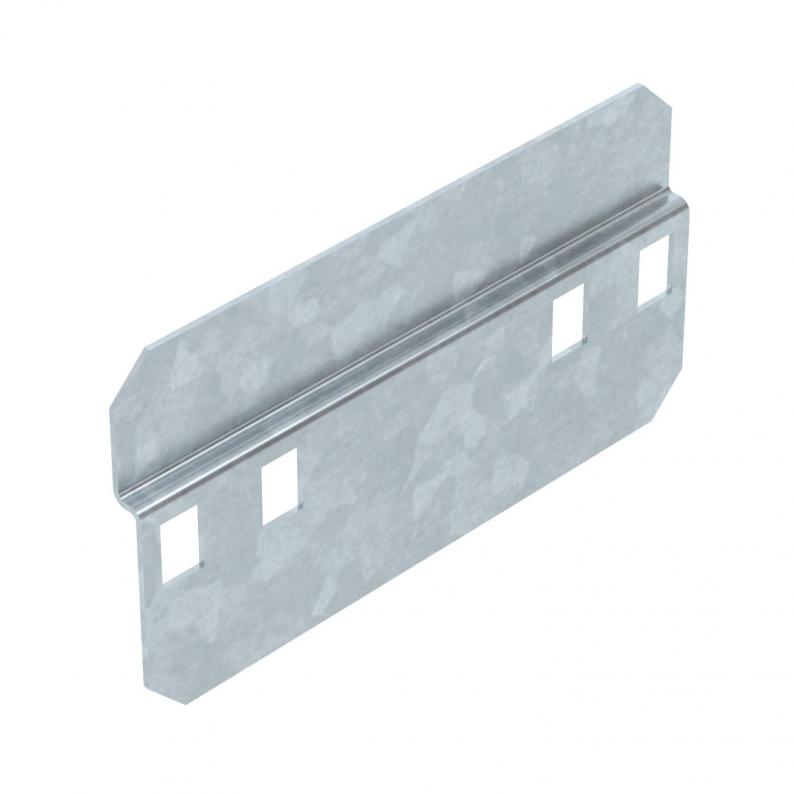

Straight connector GKSLVL 60 FT
Type GKSLVL 60 FT
|Item no. 6484331
|EAN 4012195516668
Item no. / Type
6484331 / GKSLVL 60 FT
Colour
zinc
Smallest selling unit: 1 piece
1piece
piece
Description
Straight connector for connections of cable trays, fittings and barrier strips.
Including appropriate fastening material.
Technical data

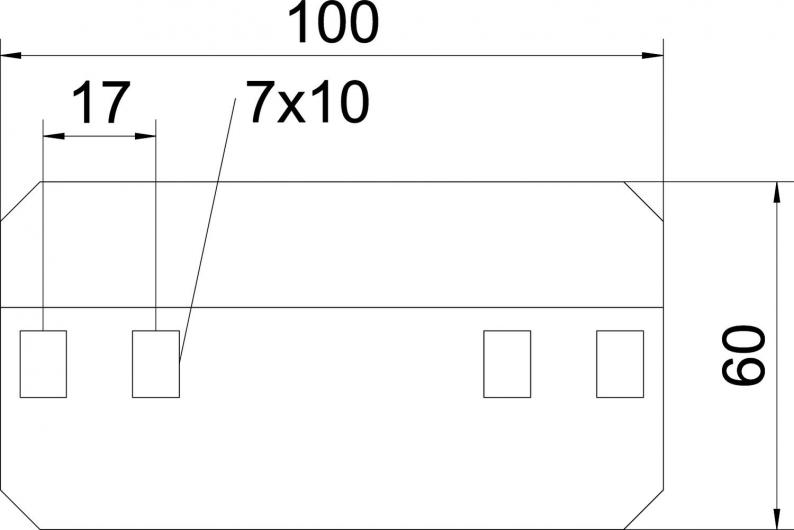

Dimensions
| Length | 100 mm |
|---|---|
| Height | 60 mm |
| Dimension H | 60 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Plate thickness | 2 mm |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | no |
| Dimension | 200 x 56 |
| Suitable for cable tray system height | 60 mm |
| Version for | Straight connector |
| Connection type | Screw connector |
| Dimension | 60 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
