Straight connector GKSLVL 60 FSK SW
Type GKSLVL 60 FSK SW
|Item no. 6487873
|EAN 4012197464912
Item no. / Type
6487873 / GKSLVL 60 FSK SW
Colour
Jet black; RAL 9005
Smallest selling unit: 20 piece
20piece
piece
Description

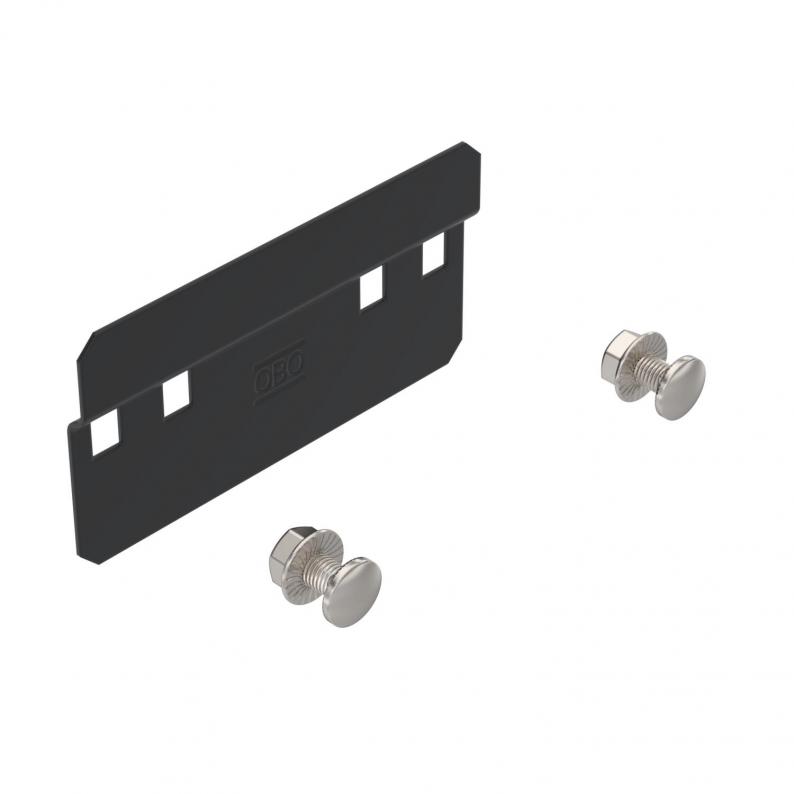

Straight connector for connections of cable trays, fittings and barrier strips. Including appropiate fastening material.
The continuity of the equipotential bonding is ensured through the screw connection. Including fastening material.
Technical data

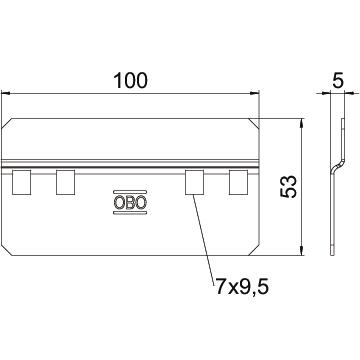

Dimensions
| Length | 100 mm |
|---|---|
| Width | 5 mm |
| Height | 53 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 1,2 mm |
| Quantity of bolts | 2 St. |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | no |
| Dimension | 53 x 100 |
| Suitable for cable support system width, min. | 50 mm |
| Suitable for cable support system width, max. | 500 mm |
| Suitable for cable tray system height | 60 mm |
| Version for | Straight connector |
| Connection type | Screw connector |
| Dimension | 60 |
| Surface | PES50 - Polyester/epoxy |
| Material | Steel |
| Colour | Jet black; RAL 9005 |
