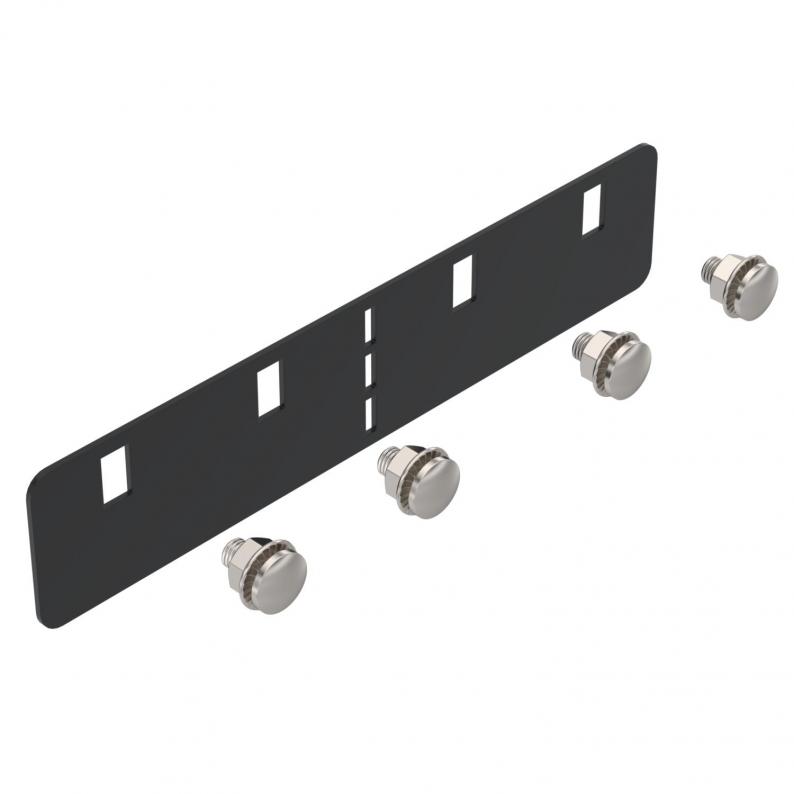

Straight and angle connector 60 FSK SW
Type GKSGO 60 FSK SW
|Item no. 6487886
|EAN 4012197465032
Item no. / Type
6487886 / GKSGO 60 FSK SW
Smallest selling unit: 1 piece
1piece
piece
Description
Straight and angle connector for horizontal changes of direction of cable trays, fittings and barrier strips.
Technical data

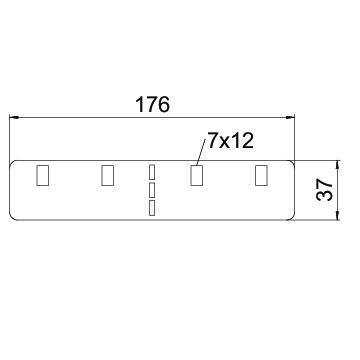

Dimensions
| Length | 176 mm |
|---|---|
| Width | 1,5 mm |
| Height | 37 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Wide-span version | yes |
| Rustproof steel, pickled | no |
| Plate thickness | 1,5 mm |
| Quantity of bolts | 4 St. |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Adjustable connector, horizontal | yes |
| Articulated connector, vertical | no |
| Dimension | 37 x 176 |
| Suitable for cable support system width, min. | 100 mm |
| Suitable for cable support system width, max. | 500 mm |
| Suitable for cable tray system height | 60 mm |
| Version for | Straight connector |
| Connection type | Screw connector |
| Dimension | 60 |
| Surface | PES50 - Polyester/epoxy |
| Material | Steel |
| Colour | Jet black; RAL 9005 |
