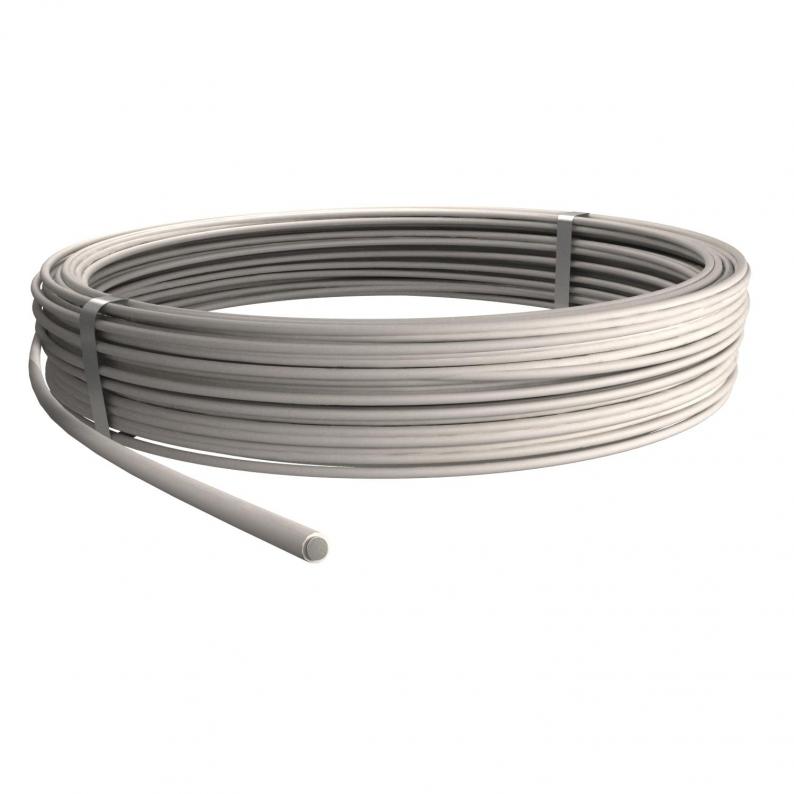

Round conductor, aluminium, with halogen-free sheathing
Type RD 8 TP HF
|Item no. 5021332
|EAN 4012195067474
Item no. / Type
5021332 / RD 8 TP HF
Normal ring (ca. kg)
20
Nomal ring (approx. m)
100
Material
Aluminium
Smallest selling unit: 100 m
100m
m
Description
• Can be used as a conductor
• Meets the requirements of VDE 0185-305 (IEC 62305)
• With halogen-free sheathing
• Suitable for routing on, in or under plasterwork, mortar or concrete
• Meets the requirements of VDE 0185-305 (IEC 62305)
• With halogen-free sheathing
• Suitable for routing on, in or under plasterwork, mortar or concrete
Technical data
Technical data
| Diameter | 8 mm |
|---|---|
| Normal ring (ca. kg) | 20 |
| High voltage-resistant, insulated version | no |
| Number of individual wires | 1 |
| Material property | Soft |
| Material jacket | Halogen-free plastic |
| Cross-section | 50 mm² |
| Nomal ring (approx. m) | 100 |
| Dimension | 8mm |
| Material | Aluminium |
| Colour | Cream; RAL 9001 |
| Length tolerance ± | 5 % |

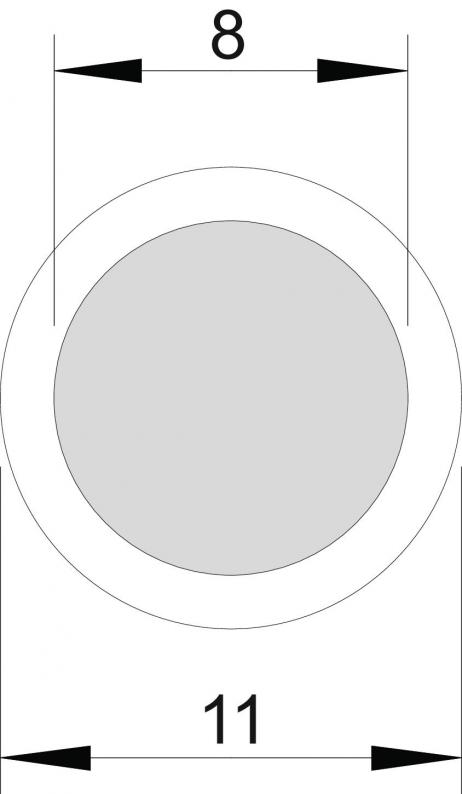

Dimensions
| Dimension d | 8 mm |
|---|---|
| Dimension D | 11 mm |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Certificates (1)
Product images (2)
3D data downloads (2)
Tender specifications (2)
Accessories
Mounting accessories
Article
Type
Item no.
Amount
165 MBG-8-10
5218700
Smallest selling unit: 12 piece
12piece
piece
5001 N-VA
5304176
Smallest selling unit: 10 piece
10piece
piece
Type
165 MBG-8-10
Smallest selling unit: 12 piece
12piece
piece
Item no. 5304176
Connector, Rd 8−10 mm with pressure troughType
5001 N-VA
Smallest selling unit: 10 piece
10piece
piece
Variants
Type
Diameter
Normal ring (ca. kg)
Cross-section
Nomal ring (approx. m)
Material
Item no.
RD 8 TP HF
8
20
50
100
Aluminium
5021332
RD 8 TP HF
Item no.
5021332
Diameter
8
Normal ring (ca. kg)
20
Cross-section
50
Nomal ring (approx. m)
100
Material
Aluminium
